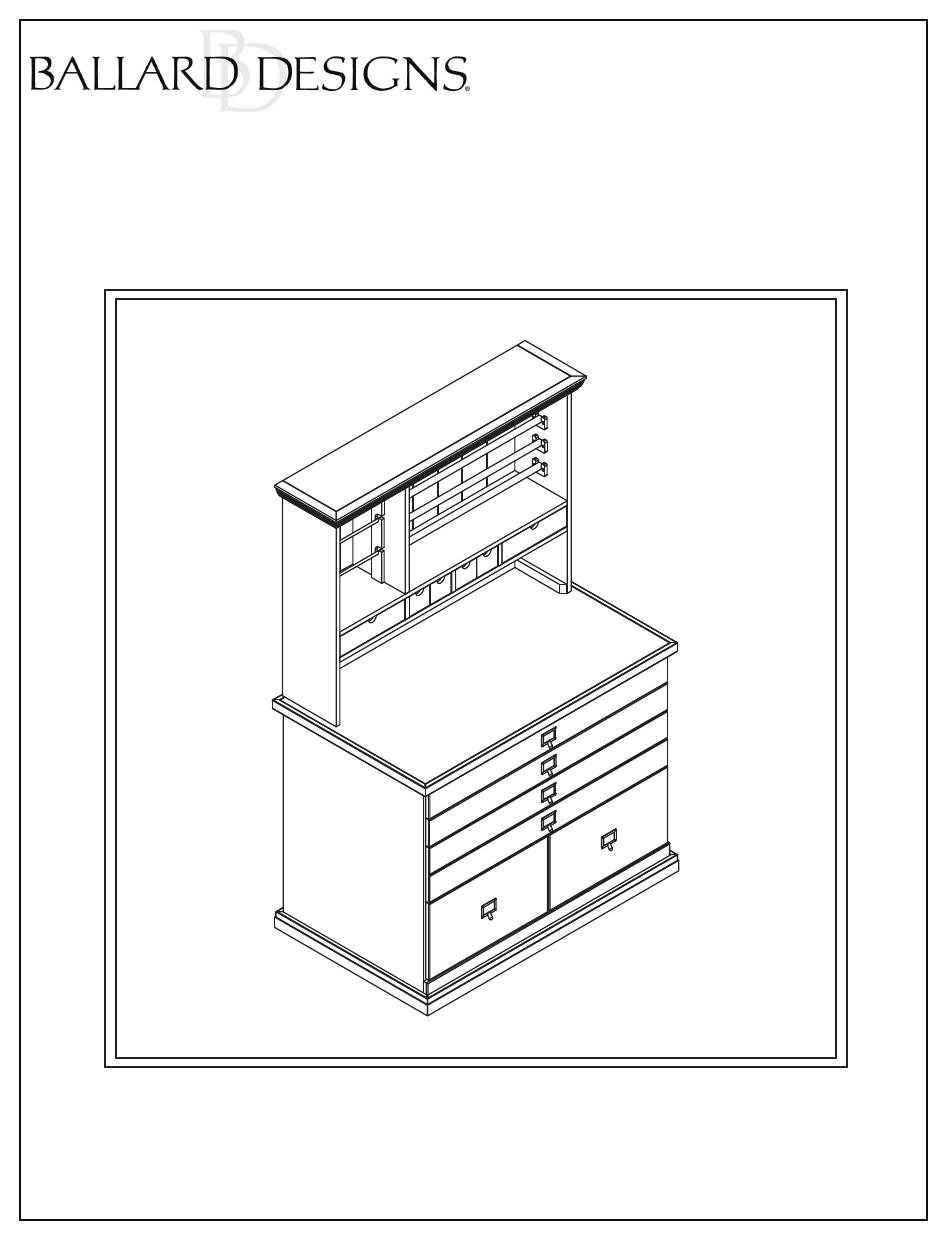

PRODUCT NAME: OHO Craft Station with Hutch
ITEM NUMBER: MO530
DIMENSIONS OF ITEM ASSEMBLED: 72 1/2"H x 49 1/2"W x 30"D
PRODUCTS ARE NOT INTENDED
MADE IN CHINA
FOR COMMERCIAL USE.
UPDATED: 7/2/2018
Page 1 of 7
Advertisement
Related Manuals for Ballard Designs OHO MO530
Summary of Contents for Ballard Designs OHO MO530
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: OHO Craft Station with Hutch ITEM NUMBER: MO530 DIMENSIONS OF ITEM ASSEMBLED: 72 1/2”H x 49 1/2”W x 30”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATED: 7/2/2018 Page 1 of 7...
-
Page 2: Tools Needed
NOTE: Assemble the Credenza & Hutch in desired location for use. (I) & (J) Hardware located here (C-G) Hardware located here (A) & (B) TOOLS NEEDED: NOTE: When unpacking, lay the parts on a -Two person assembly suggested. padded surface such as the packaging provided. -Assembly requires a screw driver. - Page 3 NOTE: Assemble the Credenza & Hutch in desired location for use. STEP 1: If the Credenza (C) is uneven, adjust the Levelers located underneath the Base. Carefully elevate one side of the credenza and twist the Levelers clockwise and counterclockwise until the Credenza sits evenly.
- Page 4 NOTE: Assemble the Credenza & Hutch in desired location for use. STEP 3: Attach the Brackets (C) to the Hutch (K) and the Credenza (H) using the Short Screws (D). Tighten with a screw driver until secure. ( C) ( D) STEP 4: Center the assembled Craft Station in front of a wall stud and mark its location on the wall.
- Page 5 NOTE: Assemble the Credenza & Hutch in desired location for use. STEP 5: Slide the L-Bracket (G) over the top of the Hutch (K) in front of the marked stud. Mark the wall at the top of the L-Bracket. NOTE: It is important that the L-Bracket is positioned as shown below, in order to hide the Bracket.
- Page 6 NOTE: Assemble the Credenza & Hutch in desired location for use. STEP 7: ANTI TIP INSTALLATION: Ltr. Qty. Hardware Included Small Screw Large Screw Bracket Retention Belt Attach 2 Brackets (N) to the back of the Credenza (H) with the Small Screws (L) through the smaller holes.
- Page 7 NOTE: Assemble the Credenza & Hutch in desired location for use. STEP 8: Slide the Craft Station back into place underneath the previously installed L-Bracket (G) and use 2 or more of the Short Screws (D) to attach the L-Bracket to the top of the Hutch (K). NOTE: The L-Bracket may not be completely on the Hutch top do to the wall’s base molding.
