Summary of Contents for Hans Grohe ShowerSelect 15738 7 Series

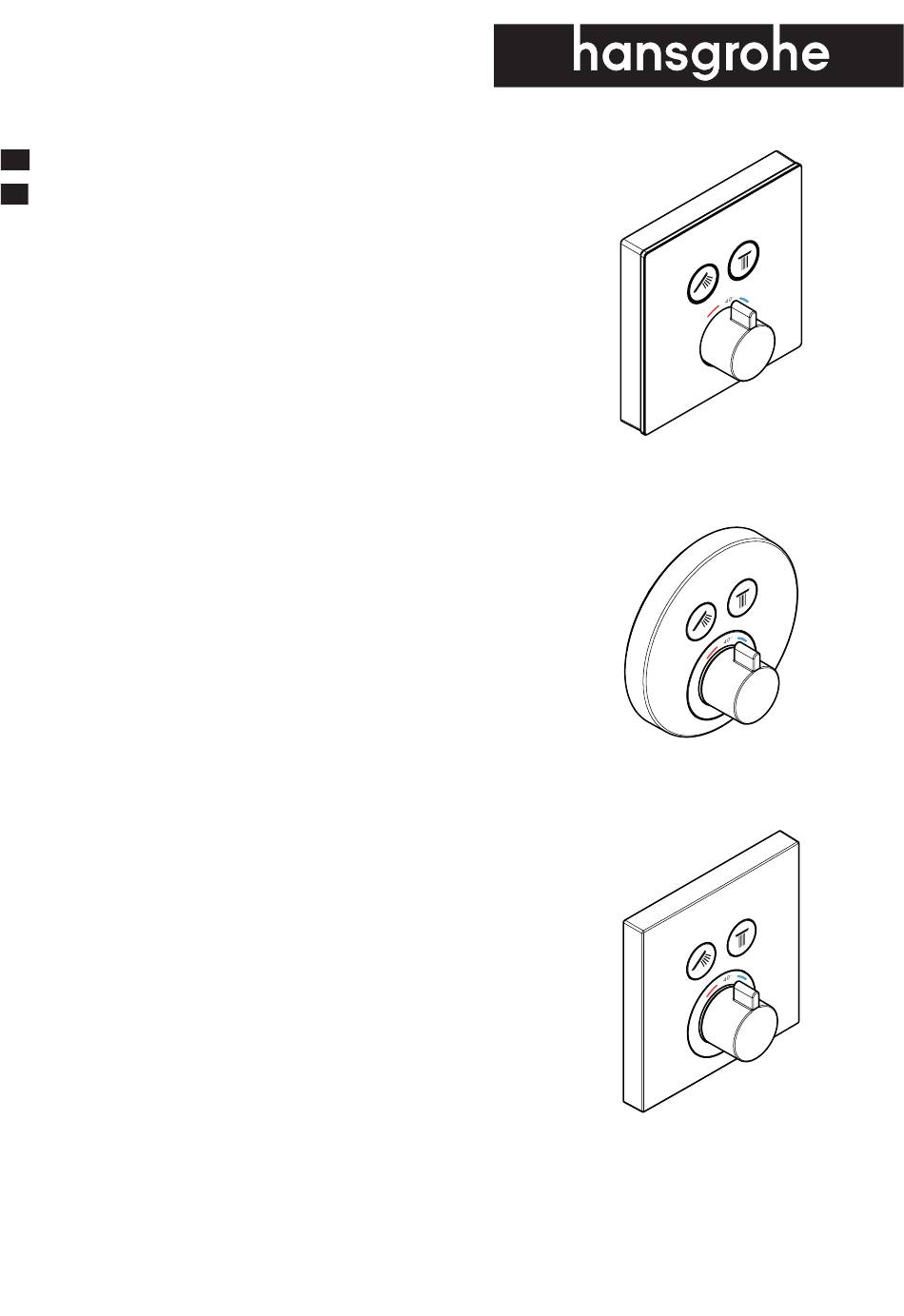

- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / Assembly instructions ShowerSelect 15738XX7 ShowerSelect S 15743007 ShowerSelect 15763XX7...
- Page 2 中文 调节 (参见第页 12) 安全技巧 装配时为避免挤压和切割受伤, 必须戴上手套. 本产品只允许作为洗浴, 卫生和洁身之用. 安装完成后必须检查调温器的出水温度. 如在取水 不得让儿童和肢体, 精神和/或意识有障碍的成 处测量所得的温度与调温器上设定的温度有偏差, 人在不受监管的情况下使用淋浴系统. 受酒精或 那么必须进行调整. 毒品影响的人员不得使用淋浴系统. 保养 (参见第页 16) 冷热水管间过大的压力差必须予以平衡. 安装提示 • 单向阀必须在符合国家或当地的法律的情况下 按照EN 806-5定期检查 (至少一年一次). • 安装前必须检查产品是否受到运输损害. 安装后 • 为了保证恒温器的稳定运转, 请务必定期从最热 将不认可运输损害或表面损伤. 到最冷转动调温器. • 管道和阀门必须根据通用标准进行安装, 冲洗和 检查. 大小 (参见第页 14) • 请遵守当地国家现行的安装规定. • 如果将恒温器或冷热水混合器调最大温度, 闭锁 流量示意图 (参见第页 14) 阀液压开口处可能造成烫伤. Hansgrohe 建议您 时的流速 设置到“安全模式”. 出水口 1 技术参数 出水口 2 1 MPa 工作压强: 最大...
- Page 3 中文 问题 原因 补救 - 水压不足 - 检查总水压 龙头出水量小 - 调压器过滤网脏污 - 清洁龙头前面和恒温阀芯的过滤 网 - 花洒滤网有垃圾堵塞 - 清洗花洒和软管间的过滤网 - 单向阀有垃圾堵塞或漏水 - 清洗单向阀 串水 在龙头关闭的状态下 热水 如有必要则更换新 被强迫流入冷水管路 或者相反 的 - 恒温阀芯未被调节 - 调节恒温器 龙头出水温度和温度设定的不符 - 热水温度过低 - 将热水温度从 升高到 42°C 60°C - 恒温阀芯表面结垢 - 更换 水温无法调节 恒温阀芯 - 对于新的安装 - 安装功能块时 基体连接不正确 旋转 180° 可能是 右冷 左热...
- Page 4 English Adjustment (see page 12) Safety Notes Gloves should be worn during installation to prevent crushing and cutting injuries. After the installation, the output temperature of the The product may only be used for bathing, hygienic thermostat must be checked. A correction is necessary if and body cleaning purposes. the temperature measured at the output differs from the Children as well as adults with physical, mental and/ temperature set on the thermostat. or sensoric impairments must not use this product Maintenance (see page 16) without proper supervision. Persons under the influence of alcohol or drugs are prohibited from • The check valves must be checked regularly accord- using this product. ing to EN 806-5 in accordance with national or The hot and cold supplies must be of equal pressures. regional regulations (at least once a year). • To guarantee the smooth running of the thermostat, it Installation Instructions is necessary from time to time to turn the thermostat • Prior to installation, inspect the product for transport from total hot to total cold. damages. After it has been installed, no transport or Dimensions (see page 14) surface damage will be honoured. • The pipes and the fixture must be installed, flushed Flow diagram (see page 14) and tested as per the applicable standards. free flow • The plumbing codes applicable in the respective ...
- Page 5 English Fault Cause Remedy Insufficient water - Supply pressure inadequate - Check water pressure (If a pump has been installed check to see if the pump is working). - Regulator filter dirty - Clean filter in front of the mixer and on the MTC-thermo cartridge - Shower filter seal dirty - Clean filter seal between shower and hose Crossflow, hot water being forced into - Backflow preventers dirty or leaking - Clean backflow preventers, cold water pipe, or vice versa, when exchange if necessary mixer is closed Spout temperature does not - Thermostat has not been adjusted - Adjust thermostat correspond with temperature set - Hot water temperature too low - Increase hot water temperature to 42 °C to 60 °C Temperature regulation not possible - thermo cartridge calcified - Exchange thermo cartridge - For new installations: basic body - Install function block turned through incorrectly connected (should be: 180° cold right, hot left) or installed with 180° rotation Safety stop button not operating - Spring defective - Clean spring and/or button, exchange if necessary - Button calcified Valve stiff...
- Page 6 01800187 Armaturenfett Grease 滑油 SW 4 mm SW 5 mm (5 Nm) SW 4 mm...
- Page 7 > 0 SW 4 mm...
- Page 8 SW 10 mm (2 Nm) (0,1 Nm)
- Page 10 < 0 mm 0 mm SW 3 mm SW 3 mm (1 Nm)
- Page 11 max. 5° SW 4 mm Ø 7 mm 0 ° SW 4 mm (5 Nm)
- Page 12 SW 3 mm 例如 42° C for example 42° C...
- Page 13 SW 3 mm (1 Nm)
- Page 14 ShowerSelect ShowerSelect S 15738XX7 15743007 5 4 - 8 2 Ø 54 - 82 ShowerSelect 15763XX7 54-82 ShowerSelect 0,60 0,55 15738XX7 / 15763XX7 0,50 ShowerSelect S 0,45 0,40 15743007 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 12 18 24 30 36 42 48 Q = l/min Q = l/sec...
- Page 15 °C >40° C...
- Page 16 SW 4 mm SW 27 mm...
- Page 17 红色 / red SW 27 mm (8 Nm) (0,1 Nm) SW 4 mm (5 Nm)
- Page 18 • • • • • Hansgrohe , Hansgrohe • • www.hansgrohe-int.com/guarantee. • • QuickClean QuickClean, • •...
- Page 19 English • After cleaning rinse thoroughly with clean water to Cleaning Recommendation for Hans- remove any cleaner residue. grohe Products • The use of steam cleaners is not permitted. The high Today, modern sanitary and kitchen tapware, showers, temperatures can damage the products. accessories, washstands, tubs and radiators consist of Important very different materials to comply with the needs of the...
- Page 20 ShowerSelect 15763XX7 97980000 92540000 96525000 92594000 98133000 (M5x20) (16x2) SW 4 mm 95758000 98368000 (M28x1) SW 19 mm 92219000 94073000 92696000 98793000 98156000 (Ø145 mm) (36x2) 98197000 (20x1,5) 98146000 (25x1,5) 92218000 98282007 92146000 (25x2,5) 98913000 98471000 (M34x1,5) (44x4) SW 27 mm 93573XX0 96454000 93571XX0 (M5x55) 92216XX0 92217XX0 95843000 93577880 SW 3 mm...
- Page 21 ShowerSelect S ShowerSelect ShowerSelect 13597XX0 13593XX0 13604000 (Ø 150 mm x 22 mm) (156mm x 156mm x 22 mm) (155mm x 155mm x 22 mm) 98133000 (16x2) 95521000 13595XX0 (1°) (25 mm)
- Page 24 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
