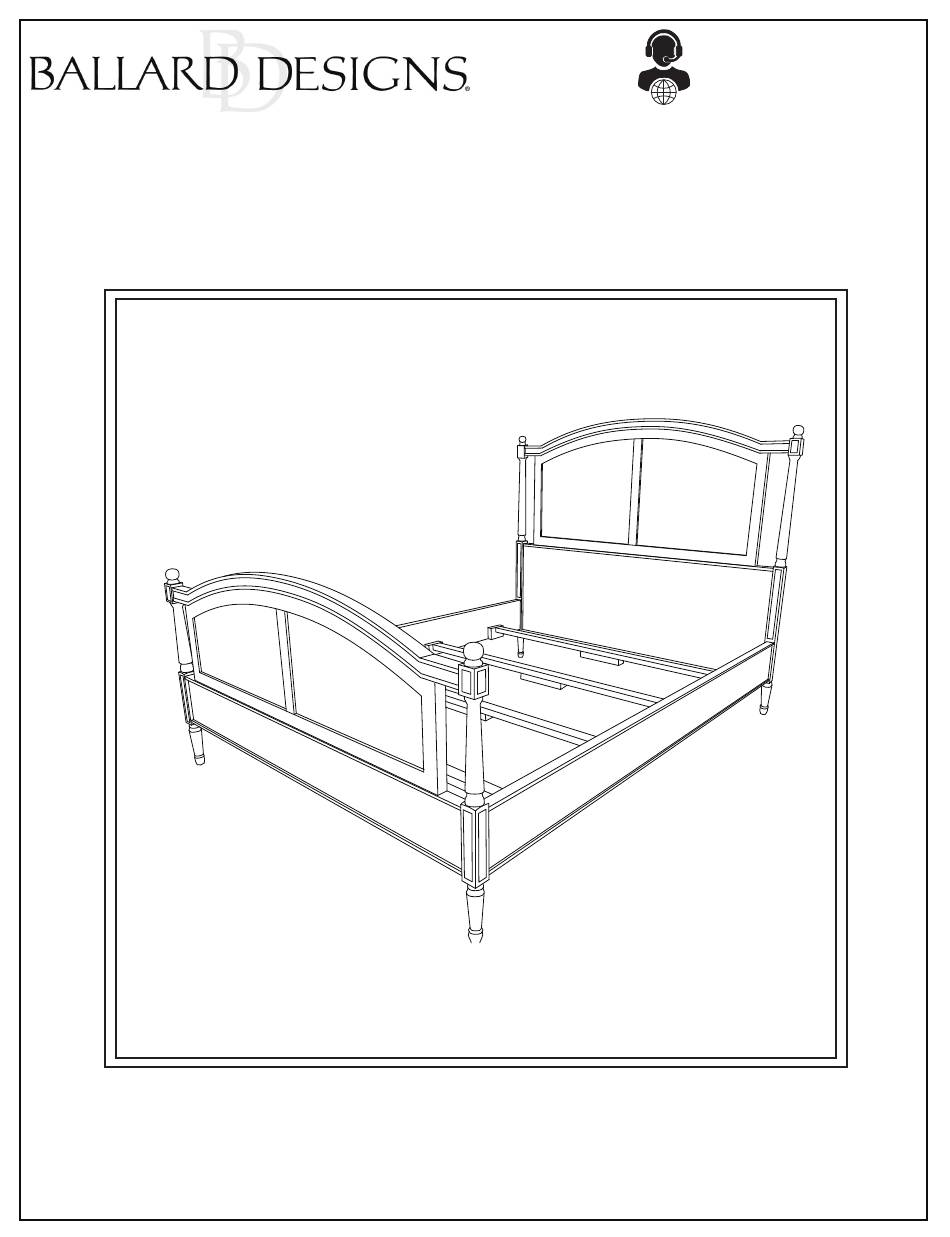

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Emile Bed ITEM NUMBER: MB507 ASSEMBLED DIMENSIONS : QUEEN: 58”H x 65”W x 85”L PRODUCTS ARE NOT INTENDED MADE IN ITALY FOR COMMERCIAL USE. UPDATED: 8-7-2020 Page 1 of 5...
-
Page 2: Required Tools
REQUIRED TOOLS: Ltr. Qty. Hardware Included Allen Wrench (included), Phillips Screwdriver Cam Locks -Two person assembly suggested. Remove all parts, hardware and Cam Bolts protective packaging from carton and carefully arrange on a clean, Adjustable level, padded surface. Frame Supports NOTE: To avoid accidentally Allen Wrench... - Page 3 STEP 1: Insert Legs (H) into embedded T-nuts under each corner of Headboard (F) and Footboard (G) then turn clockwise until firmly tigtened and secure. STEP 2: Insert Cam Bolts (B) into T-nuts embedded in both Headboard (F) and Footboard (G). Use Allen Wrench (D) to firmly tighten and secure.
- Page 4 STEP 3; Insert Cam Locks (A) into holes at inside ends of both Sideboards (I). NOTE: Key hole faces outward as shown. Align Cam Lock to allow Cam Bolt to enter from end of Sideboard. Next, carefully fit Sideboard over Cam Bolt and push in until Wood Dowels are seated and Cam Lock is fully inserted.
-
Page 5: Cleaning And Care
STEP 5: Lay Support Slats (J) into bed frame as shown then insert a Screw (E) into each end. Lay Footboard Slat (no Adjustable Leg) in position closest to Footboard. Secure with Screws. To ensure Adjustable Leg is NOT visible after assembly, Footboard Slat (K) MUST be positioned closest to Footboard.
