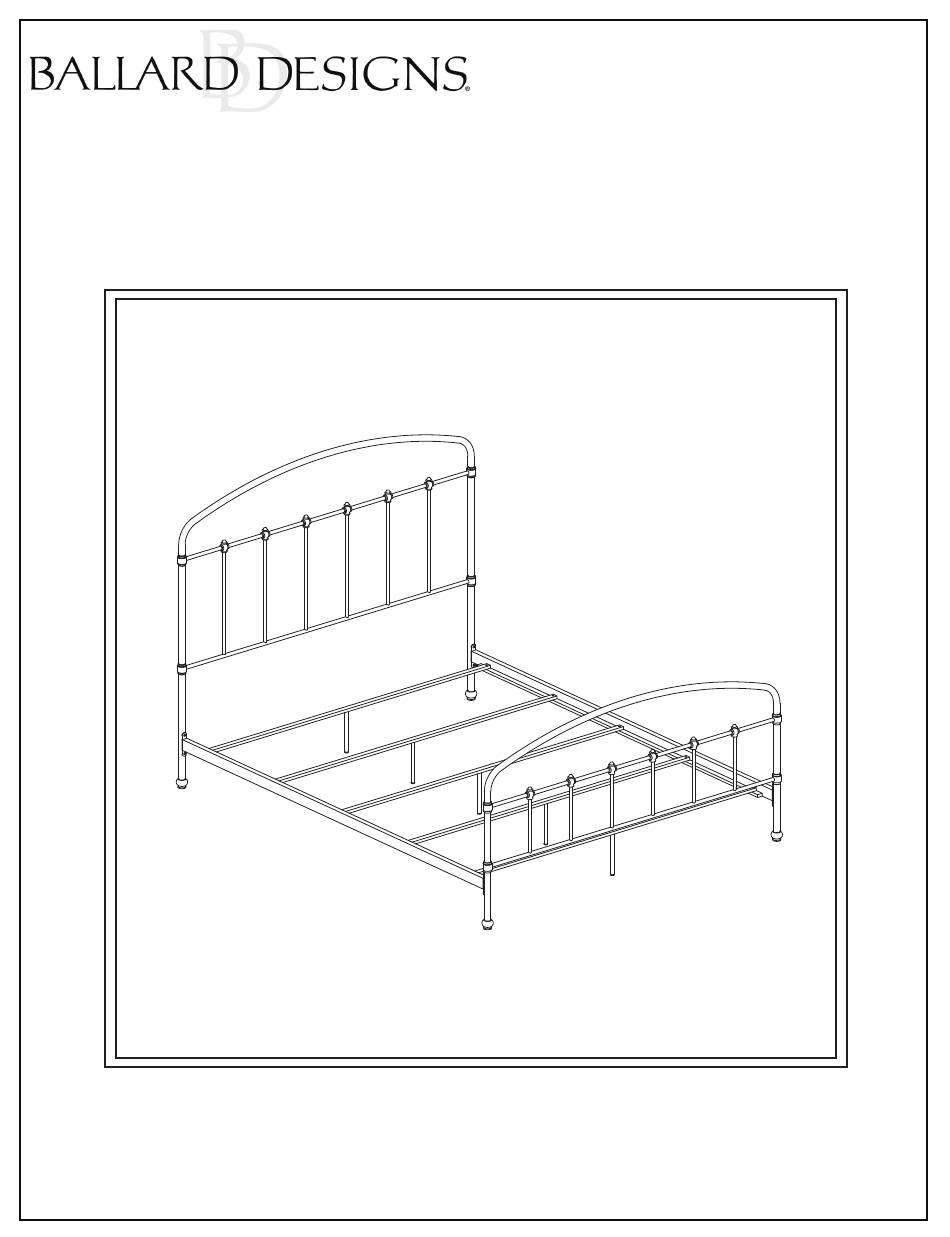

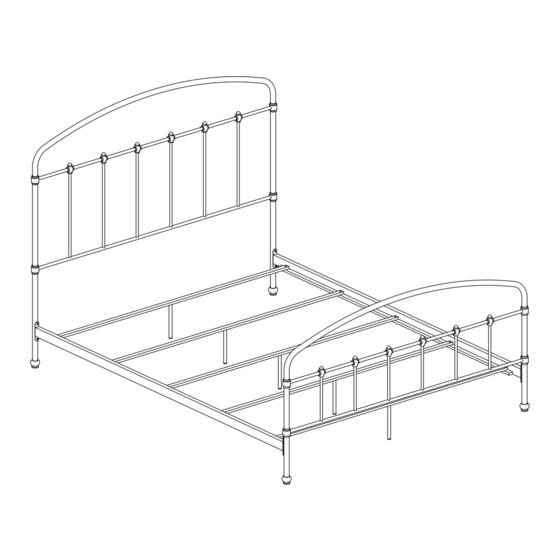

PRODUCT NAME: Lorraine Metal Bed (Queen)
ITEM NUMBER: MB502
ASSEMBLED DIMENSIONS : 34 1/2"H x 85 1/4"W x 64 3/4"D
PRODUCTS ARE NOT INTENDED
MADE IN CHINA
FOR COMMERCIAL USE.
UPDATED: 10-1-2019
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs Lorraine MB502
Summary of Contents for Ballard Designs Lorraine MB502
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Lorraine Metal Bed (Queen) ITEM NUMBER: MB502 ASSEMBLED DIMENSIONS : 34 1/2”H x 85 1/4”W x 64 3/4”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATED: 10-1-2019 Page 1 of 4...
- Page 2 TOOLS NEEDED: Ltr. Qty. Hardware Included Allen Wrench (Included) Large Allen Bolt -Two person assembly suggested. Remove all parts, hardware and Small Allen Bolt protective packaging from carton and carefully arrange on a clean, level, padded surface. Lock Washer NOTE: To avoid accidentally Curved Washer discarding small parts or hardware,...
- Page 3 STEP 1: ATTACH HEADBOARD AND FOOTBOARD Orient Side Rails (H) with ledge facing inside of bed. Attach each to Headboard (F) and Footboard (G) using Large Allen Bolt (A), Lock Washer (C) and Curved Washer (D). Thread each Bolt into T-nuts and tighten using Allen Wrench (E).
- Page 4 STEP 3: ATTACH SLATS TO SIDE RAILS Place each Slat (I) between SIde Rails (H) with Support Leg facing down. Align holes in each end with T-nuts in Side Rail then insert Short Allen Bolt and firmly tighten using Allen Wrech (E). Cleaning &...
