PRODUCT NAME: Villandry Bed
ITEM NUMBER: MB511
ASSEMBLED DIMENSIONS : KING - 57"H x 81 1/2"W x 85 1/4"L
QUEEN - 57"H x 65 1/2"W x 85 1/4"L
PRODUCTS ARE NOT INTENDED
MADE IN INDONESIA
FOR COMMERCIAL USE.
UPDATED: 9-29-2020
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs Villandry MB511
Summary of Contents for Ballard Designs Villandry MB511

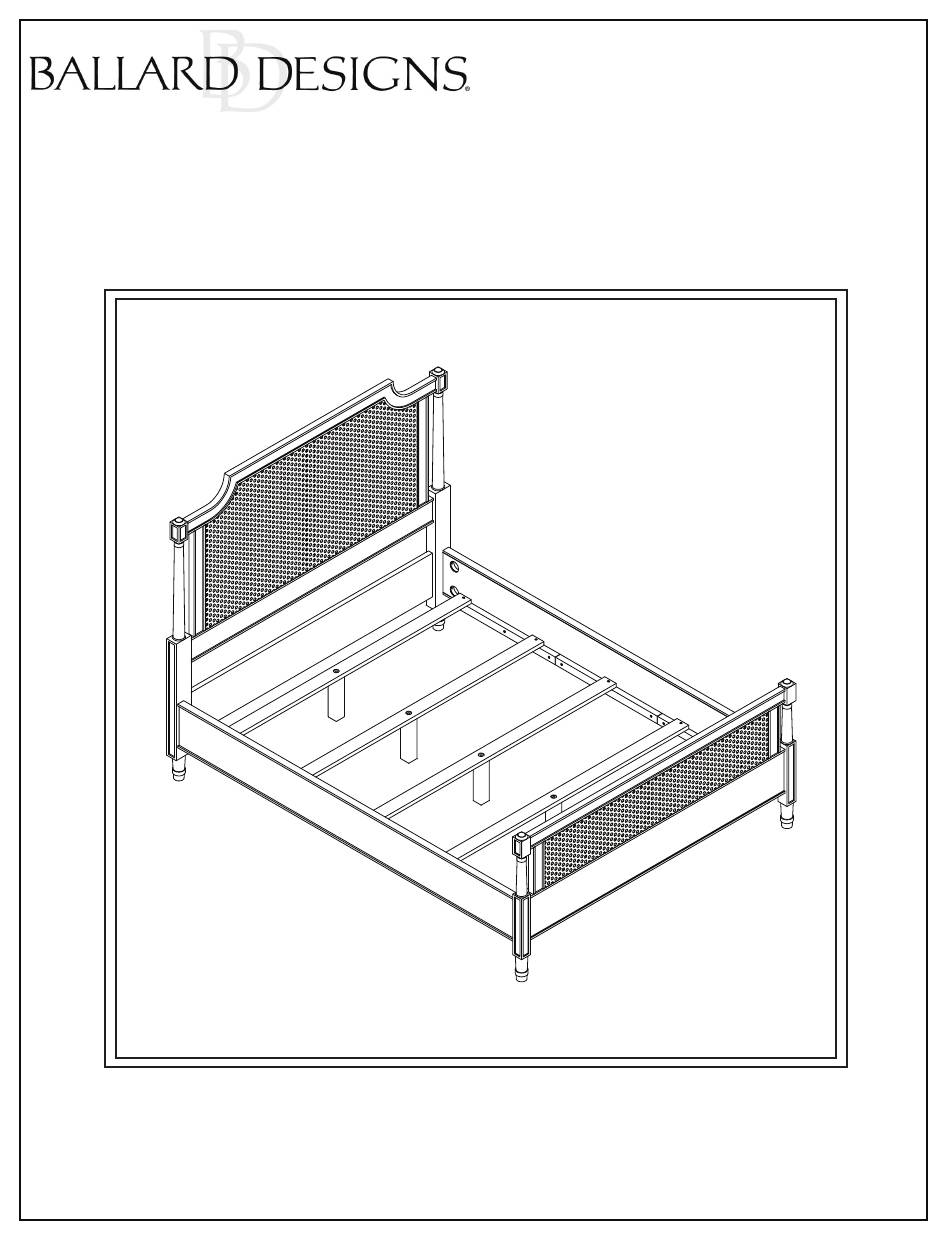

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Villandry Bed ITEM NUMBER: MB511 ASSEMBLED DIMENSIONS : KING - 57”H x 81 1/2”W x 85 1/4”L QUEEN - 57”H x 65 1/2”W x 85 1/4”L PRODUCTS ARE NOT INTENDED MADE IN INDONESIA FOR COMMERCIAL USE.
- Page 2 Assemble in location for intended use. Ltr. Qty. Hardware Included TOOLS NEEDED: Threaded Studs Wrench (included), Phillips Screwdriver -Two person assembly suggested. Half-Moon Washers Remove all parts, hardware and protective packaging from carton Lock and carefully arrange on a clean, Washers level, padded surface.
- Page 3 STEP 1: ATTACH SIDE RAILS TO HEADBOARD AND FOOTBOARD Insert and tighten Studs (A) into both sides of Headboard (G). Align holes in Side Rails (I) over ends of Studs then add Half-Moon Washer (B) followed by Lock Washer (C) then Hex Nut (D). Using Wrench (F), firmly tighten Nuts until Side Rails are secured to Headboard.
- Page 4 STEP 3: ATTACH SUPPORT SLATS TO SIDE RAILS Evenly space Support Slats (J) with ends on the ledge of the Side Rails (I). Use Screws (E) to firmly secure each into place. NOTE: Slat without a Foot Support is placed nearest the Footboard to ensure Support Foot is not visible after Bed is fully assembled.
