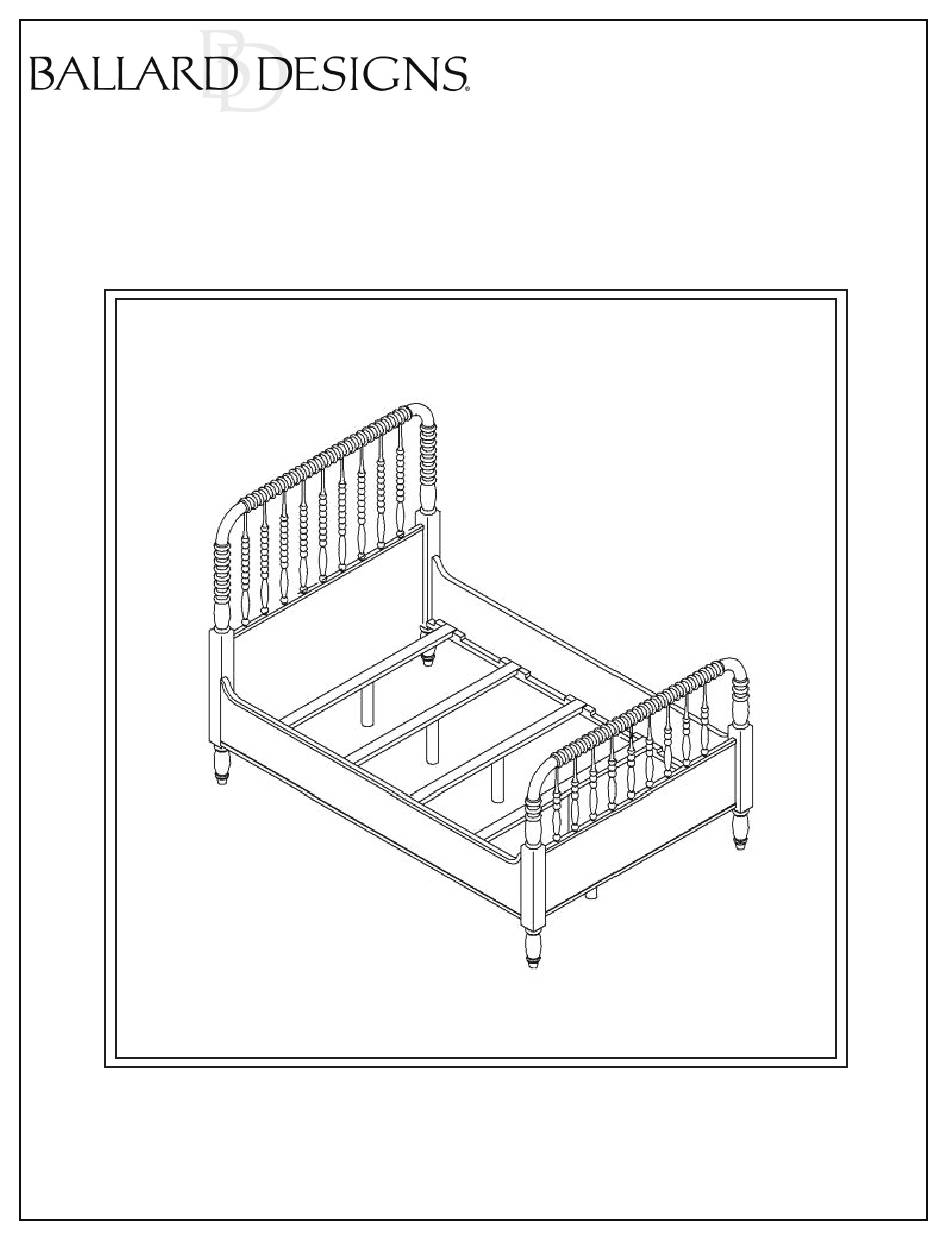

PRODUCT NAME: Savoy Spool Bed- Queen
ITEM NUMBER: MB488 (MB486 Queen)
DIMENSIONS OF ITEM ASSEMBLED: 57 3/8"H x 65 1/2"W x 84 1/2"D
PRODUCTS ARE NOT INTENDED
MADE IN VIETNAM
FOR COMMERCIAL USE.
UPDATED: 4/3/2018
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Savoy MB488 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ballard Designs Savoy MB488

  • Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Savoy Spool Bed- Queen ITEM NUMBER: MB488 (MB486 Queen) DIMENSIONS OF ITEM ASSEMBLED: 57 3/8”H x 65 1/2”W x 84 1/2”D PRODUCTS ARE NOT INTENDED MADE IN VIETNAM FOR COMMERCIAL USE. UPDATED: 4/3/2018 Page 1 of 4...
  • Page 2 Ltr. Qty. Hardware Included TOOLS NEEDED: -Two person assembly Wrench suggested. NOTE: When unpacking, lay Half Moon Washer the parts on a padded surface such as the packaging provided. Be sure to locate all hardware Spring Washer before throwing away any packaging.
  • Page 3 STEP 1: Screw the Bolts (E) into the Headboard (F) and Footboard (G) as shown . STEP 2: Align the holes in the ends of the Side Rails (H) with the Bolts (E) in the Footboard (G). Insert the Bolts into the Side Rails and, on the inside of the Side Rail, insert the Half Moon Washer (B), Spring Washer (C) and Nut (D) onto the Bolt and tighten with the Wrench (A).
  • Page 4 STEP 3: Attach the Support Legs (J) to the Support Bars (I). Tighten completely. STEP 4: Set the Support Bars (I) on the Side Rails (H) as shown. The Support Legs at the Head and Foot of the bed are optional for extra support. Customer Service: 800-367-2810 Page 4 of 4 Online: www.ballarddesigns.com...
