Summary of Contents for Bishamon ALPHA L22K

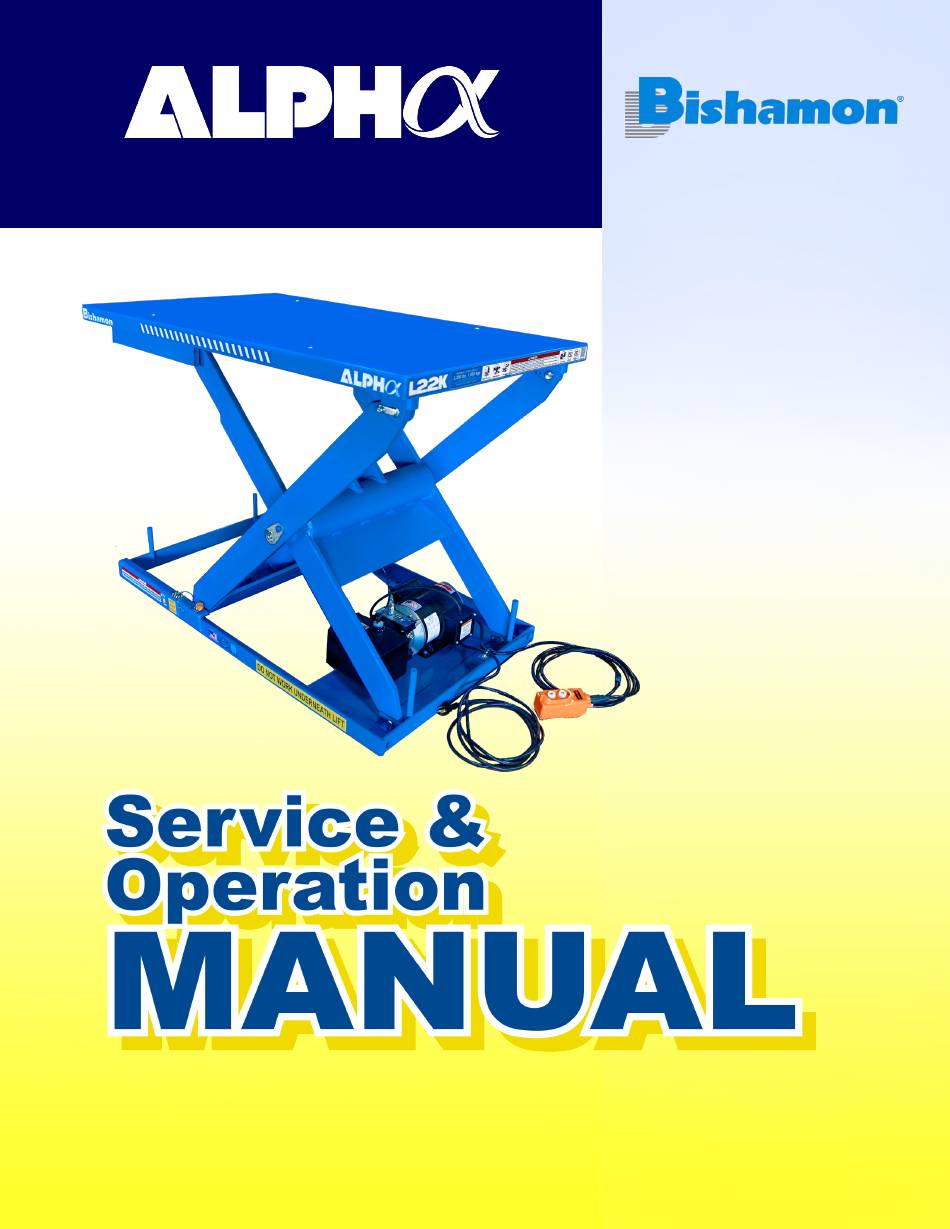

- Page 1 H Y D R A U L I C L I F T T A B L E S L22K , L44K™, L66K™ ®...
- Page 2 Please note: This manual was current at the time of printing. To obtain the latest, most updated version, please contact Bishamon’s customer Service Department or go to our website: www.Bishamon.com BISHAMON INDUSTRIES CORPORATION 5651 East Francis Street Ontario, California 91761, USA...
-
Page 3: Table Of Contents
Table of Contents Contents Page Getting Started ........................................1 Inspection ..........................................1 Safety Definitions........................................1 Dangers, Warnings and Cautions .................................... 1 Safety Warning Label Locations ....................................2 Responsibilities of Owners/Users .................................... 3 Specifications .......................................... 4 Recommended Floor Area....................................... 6 Functional Description ......................................6 Maintenance Pin Operating Instructions.................................. -
Page 4: Getting Started
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE ALPHA™ Scissor Lift Table. The safety of all persons installing, using or servicing the ALPHA™ scissor lift is of utmost importance to Bishamon. All ALPHA™ series lifts are capable of supporting heavy loads and are capable of causing SEVERE PERSONAL INJURY if used improperly or certain safety precautions are not taken. -
Page 5: Safety Warning Label Locations
ALWAYS ensure all safety warning labels are in place and legible. If not, remove the lift table from service and replace the required labels. Refer to Figure 1 for label descriptions and locations. ALWAYS securely anchor the base frame to the floor to ensure maximum stability. CAUTIONS DO NOT continue to operate the pump if a squealing noise is heard coming from the pump. -
Page 6: Responsibilities Of Owners/Users
The following section is taken directly from section 5 of ANSI MH29.1-2012. Please note the following: • Manufacturer refers to Bishamon’s authorized representative the “DEALER” or to “Bishamon Industries Corporation”. • Industrial scissors lift refers to the Alpha series lifts – models Lift22K, Lift44K and Lift66K. -
Page 7: Specifications
FIXED PLATFORM MODEL SPECIFICATIONS AND SPECIFICATION DRAWING Figure 2 Fixed Platform Model Specification Drawing... -
Page 8: Figure 3 Turntable Model Specification Drawing
TURNTABLE MODEL SPECIFICATIONS AND SPECIFICATION DRAWING Figure 3 Turntable Model Specification Drawing... -
Page 9: Recommended Floor Area
RECOMMENDED FLOOR AREA Figure 4 Recommended Floor Area The lift table’s recommended floor area, shown in Figure 4, identifies the “Danger Zone” and the “Operating Zone”. The Danger Zone is the area inside the base frame and under the platform structure. The recommended Operating Zone is a distance of 39 inches (1 meter) extending beyond the danger zone on all sides. -
Page 10: Maintenance Pin Operating Instructions
MAINTENANCE PIN OPERATING INSTRUCTIONS To Engage The Maintenance Pins: Remove all load from the platform and raise the lift table to its fully-raised position. Move to the roller end of the lift. As detailed in Figure 5, deploy the maintanance pins. Ensure both pins are positioned correctly. Lower the lift by depressing the DOWN button or pedal. -
Page 11: Operating Instructions
Position the lift in the desired location. Use care not to damage the lift’s power cord or control cord. The Alpha base frame must be secured to the floor for maximum stability. Contact your Dealer or Bishamon Industries Corporation if you have any questions regarding the proper installation of the lift. -
Page 12: Routine Maintenance
Figure 10 Hand Control Operation Figure 11 Foot Control Operation Loading / Unloading the Lift Platform Check the load or component weight to ensure the total load does not exceed the capacity of the lift. Refer to the capacity decal on the end of the lift platform. -
Page 13: Daily Inspection
Bishamon Industries supplies the ALPHA LK series lift tables with Goldenwest Lubricant Premium AW Hydraulic Oil 32, a quality hydraulic oil with rust and oxidation inhibitors and anti-wear properties for use in normal ambient temperatures. -
Page 14: Cylinder Seal Replacement
In the event the pump or cylinder seals are leaking, detailed instructions and replacement part kits are available. Contact the DEALER or Bishamon Industries Corporation to obtain service kits and instructions for these items. Figure 12 Hydraulic Schematic - Plumbing Diagram... -
Page 15: Figure 13 - Alpha 115 Volt Single Phase Wiring Diagram
Figure 13 ALPHA 115 Volt Wiring Diagram Figure 14 ALPHA 230 Volt Single Phase Wiring Diagram... -
Page 16: Figure 16 Alpha 480 Volt 3 Phase Wiring Diagram
Figure 15 ALPHA 208/230 Volt 3 Phase Wiring Diagram Figure 16 ALPHA 480 Volt 3 Phase Wiring Diagram... -
Page 17: Figure 17 - Hand Control Wiring Diagram (For 115 Volt)
Figure 17 Hand Control Wiring Diagram (For 115 V) Figure 18 Foot Control Wiring Diagram - 20A (For 115 V) -
Page 18: Figure 19 Foot Control Wiring Diagram - 15A (For 230 V & 480 V)
Figure 19 Foot Control Wiring Diagram - 15A (For 230 V & 480 V) Figure 20 Hand Control Wiring Diagram 24 VAC (For 230V & 480 V Volt) -
Page 19: Troubleshooting
REPLACEMENT PARTS Bishamon has carefully selected the components used in the manufacture of the OPTIMUS lift tables. In the event replacement parts are required, ALWAYS use genuine OPTIMUS components provided by Bishamon. These parts can be obtained from your Bishamon DEALER or by contacting... - Page 20 BISHAMON INDUSTRIES CORPORATION 5651 East Francis Street Ontario, California 91761, USA (909) 390-0055 (800) 358-8833 Date Placed in Service: Serial Number: Dealer: Version 1.00...
