Dear Users,
Thank you for purchasing our Bishamon Tortoise G Lift. Before using the lift, read through
and be familiar with this manual. Fully understand the precautions, directions, and other
information contained in this manual to ensure correct use. Failure to do so may result
not only in insufficient performance of the lift but also in falling of the vehicle, serious
injury and death, and damage to properties.
Keep this manual in a safe place for future reference. In case of loss, immediately request
a new copy.
If the product is supplied with a wrong manual, contact your lift supplier for a correct copy.
Perform periodic maintenance inspection of the lift to ensure safe work
with the lift and keep the lift fully functional.
Sugiyasu Corporation
Aug. 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCL3000A and is the answer not in the manual?

Questions and answers

Summary of Contents for Bishamon SCL3000A

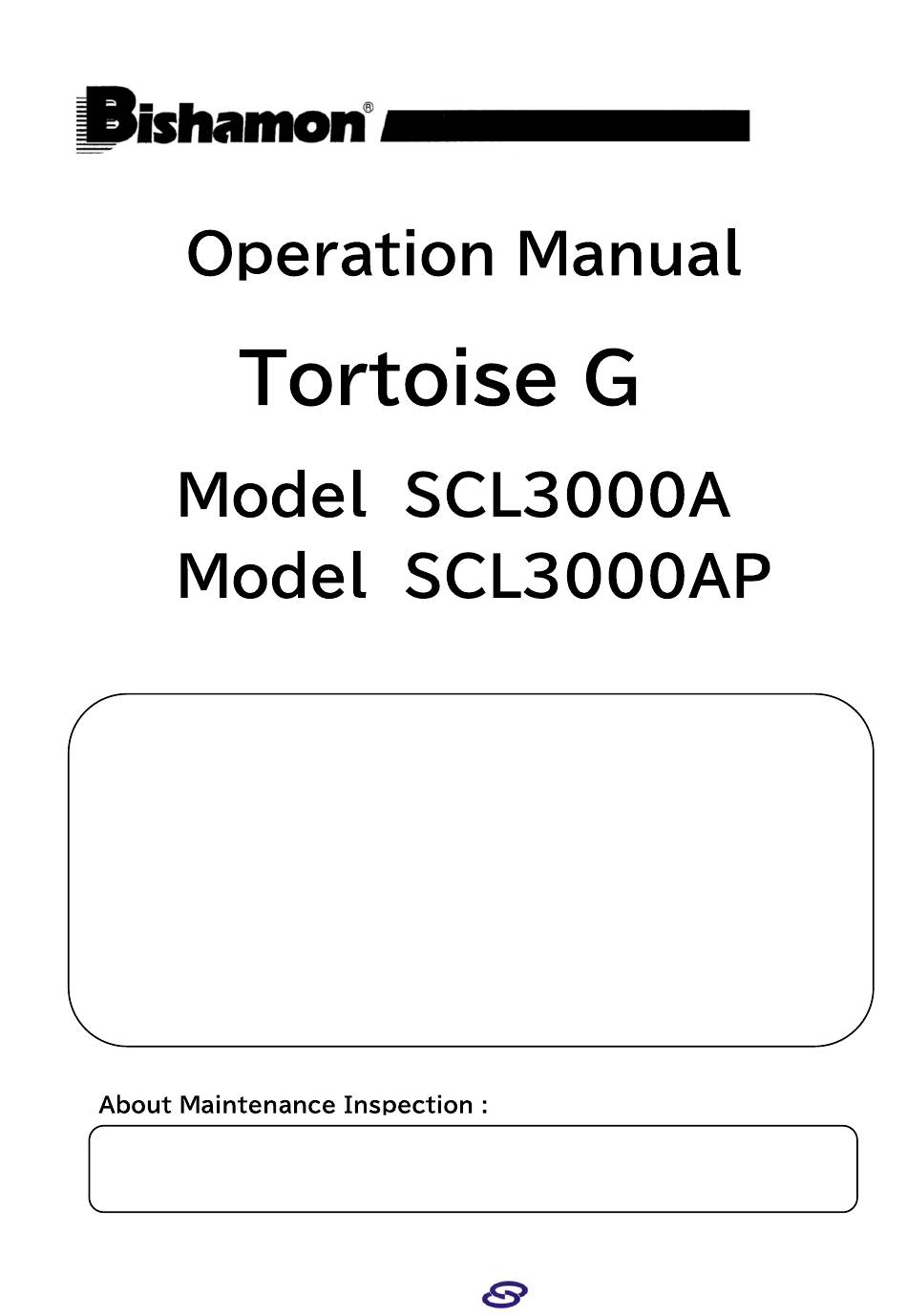

  • Page 1 Aug. 2021 Dear Users, Thank you for purchasing our Bishamon Tortoise G Lift. Before using the lift, read through and be familiar with this manual. Fully understand the precautions, directions, and other information contained in this manual to ensure correct use. Failure to do so may result not only in insufficient performance of the lift but also in falling of the vehicle, serious injury and death, and damage to properties.
  • Page 2 Bishamon Tortoise G Lift Thank you for purchasing our . Before using the lift, read through and be familiar with this manual. Fully understand the precautions, directions, and other information contained in this manual to ensure correct use. Failure to do so may result not only in insufficient performance of the lift but also in falling of the vehicle, serious injury and death, and damage to properties.
  • Page 3 3) ~ 5) 8) ~ 9) 14) ~ 17) 14) ~ 15) 18) ~ 19) 21) ~ 22) 23) ~ 24)
  • Page 4 This product is a lift to be used for oil and parts replacement, general maintenance, motor vehicles inspection and maintenance etc. of mini-to ordinary sized passenger cars, small sized trucks, and the like. Caution for Safety As there are very important to protect operators from accidents which may result in injury and death,and damage to cars and properties, make sure to understand fully before operating the lift.
  • Page 5: Electrical Hazard

    Drive in vehicle straight Read the Operation Manual DO NOT lower the lift thoroughly before using while any stand, jack or and parallel to the lift. Vehicle MUST BE positioned the lift. support is in position Important Warnings are under vehicle. evenly.
  • Page 6 1. This lift is designed for motor vehicle servicing. DO NOT Use for other purpose. 2. This lift capacity is 3,000 kgs. DO NOT lift any vehicle exceeding the maximum lift capacity. 3. The unbalance load between right and left side Supporter should be less than 300 kgs. 4.
  • Page 7 CG Label Capacity Label Caution Label E Serial Plate showing how to do Pre Operation Check of Filter Regulator. Caution Label Caution Label Labels feature descriptions on important matters for preventing accidents and property damages, as well as capacity of the lift. Purchase and apply these lables promptly when they become worn, damaged or peeled off while the lift is used.
  • Page 8 Slide Supporter ※ Drive-In Ramp Hyd. Unit Push Button Double Scissor Link Switch Lowering Stop Rack & Hook ※ Drive On Ramp are not Lift Cylinder supplied for Model SCL3000AP Serial Plate...
  • Page 9 Air Filter Regulator reduce the air pressure of the Push Button air supplied to the Air Filter Regulator to appropriate Switch Air Filter pressure levels, and drain water in the air. Air pressure Regulator gauge shows the air pressure after depressurization. ①...
  • Page 10 Side Sill Block is used to protect vehicle side sill when lifting vehicle by Supporter. There are 3 kinds height Side Sill Blocks as below. ・Height 30mm - Supplied as Standard for Model SCL3000A ・Height 70mm - Supplied as Standard for Model SCL3000AP ※ Height 115mm - Available only as Option...
  • Page 11 Lowering Air Cylinder (Unit side) Hook Release Air Cylinder (Lift side) Quick Air Tube C (Red) Exhaust Valve Check Valve Air Tube A Breather Valve Hook Release Air Tube A Fuse Valve Air Switching Valve (Selex Valve) Fuse Valve Air Filter Lift Cylinder Lift Cylinder (b) Regulator...
  • Page 12 Tortoise G Series Lift operate the Hyd. Cylinder by Electro Hyd. Pump, and lift up Supporter through 2 stage X (Scissors) Link. Both sides, Right and Left side Supporters would synchronize through Synchro Cylinder inside Hyd. Unit, and lift and lower. This lift has function of correcting unbalance of synchronizing. ①...
  • Page 13 It is installed at each cylinder to prevent lift from lowering in case of oil leaking and breakage of hydraulic hose etc. However, be noted that there is no safety hook below approx. 200mm height from floor. Lowering Stop Device It is installed at the piping closest to each cylinder.
  • Page 14 Caution If any possible abnormality is detected, prohibit the use of the lift until abonormality is fully repaired. Then contact your lift supplier immediately. If the lift is used with abnormality left unsolved, damage to the lift or serious accident may occur. Air Filter Regulator Lift Cylinder...
  • Page 15 Caution ・ Lift (Supporter) must be lowered fully before vehicle enters ・ Make sure to park the vehicle so that CG of the vehicle stay within the range shown in Yellow Color Arrow on the side of the Supporter. If not, vehicle may fall due to the vibration during lift operation and vehicle servicing.
  • Page 16 Grip Slide Stopper Pin Side Sill Block Warning Put the Side Sill Block on the Supporter so that center of Side Sill Block stay inside Double Scissors Link before lifting up. And for frontwards and backwards, DO NOT put Side Sill Block off over the width of Side Sill Block. →...
  • Page 17 Danger NEVER go and stand under the vehicle during lift operation. Warning ・ DO NOT lift vehicles with passengers, baggage or cargo etc. inside (on board). ・ When operating the lift, NEVER look aside, and pay constant attention to the area around the vehicle and the lift, or it could result in serious accident.
  • Page 18 Danger NEVER go and stand under the vehicle during lift operation. Caution ・ DO NOT operate the lift with anything such as tools or parts left in the pit or under the lift. Failure to comply may result in the failure of the lift or falling of the vehicle. Caution ・...
  • Page 19: For Safe Use

    For Safe Use Ask lift supplier for annual regular inspection besides above monthly regular inspection.
  • Page 21 → Check the cable for connection and ・Power cable improperly connected or broken the breakage of the wire ・Magnet contactor thermal relay activated → Identify the cause and reset ・Primary-side circuit breaker tripped → Reset primary-side circuit breaker ・Pressure of air supplied to lift is too low →...
  • Page 22 1178mm - Overall Height 743mm - To Oil Filling Port 613mm - To Overflow Connection 787mm - To Motor 918mm - To Solenoid 1046mm - To Magnet Contactor...
  • Page 23 1178mm - Overall Height 743mm - To Oil Filling Port 613mm - To Overflow Connection 787mm - To Motor 918mm - To Solenoid 1046mm - To Magnet Contactor...
  • Page 24 Warning Caution...
  • Page 25 High Side Sill Block...
  • Page 26 As this lift is not weatherproof, or washing model, the defects casued by rust, corrosion, short circuit from water would not be covered under warranty.
  • Page 28 3-21, 4-Chome, Hongo-Cho, Takahama City, Aichi, Japan 444-1394 Tel. 81-566-53-1126, Fax. 81-566-53-1844 http//www.bishamon.co.jp/...

This manual is also suitable for:

Scl3000ap
