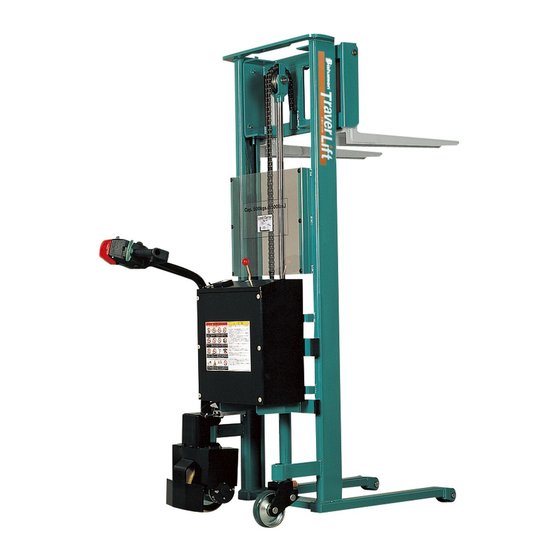

Bishamon ST50A Operation And Service Manual

Bishamon ST50A Operation And Service Manual

Battery powered lift & drive stackers

Advertisement

Quick Links

Read this manual carefully and understand completely before operating stackers. Keep filing this manual for
future reference. If this copy is lost, please contact your local supplier for a replacement.
Explanation of Terms and Symbols
Warning
In this manual, 「
very important for safe operations. As these are very Important to protect operators from accidents
resulting in personal injury and death, and damage to property, so make sure to read thoroughly and
understand fully before operation.
Warning
Caution
◎ Hazard or unsafe practice which, if not avoided, may result in DEATH or SEVERE PERSONAL INJURY and
PROPERTY DAMAGE.
DO NOT use lifter on slope, unlevel
or soft surface. Lifter may become position. SEVERE PERSONAL
unstable and /or uncontrollable.
SEVERE PERSONAL INJURY and
PROPERTY DAMAGE could result.
NEVER go under forks.
SEVERE PERSONAL INJURY or
DEATH could result.
DO NOT put hand near chain
sprocket or other moving parts.
SEVERE PERSONAL INJURY
could result.
Fully attach the battery terminal
cover. Danger of fire or electric
shock from short circuit could
result.
Caution
」 , 「
」 are defined and specified as below. Notice of Warnings are
Incorrect operation may result in serious injury or death of the operator.
Incorrect operation may result in injury and damage to the property.
Always travel with forks in lowered
INJURY and PROPERTY DAMAGE forks. SEVERE PERSONAL INJURY
could result.
DO NOT overload lifter.
ALWAYS stay within designated
capacity and load center rating.
KEEP FEET CLEAR of rolling
wheels that could result in
SEVERE PERSONAL INJURY.
SHOCK HAZARD !
Disconnect power plug before
opening Swtichboard and Control
Panel.
DO NOT load one fork more than
other and DO NOT load tips on
or DEATH could result.
DO NOT jump start and turn steep
with high speed accelaration.
Lifter may become unstable/ or
uncontrolable.
USE ONLY in areas clear of all
personnel and objects to prevent
severe personal injury and property Handle battery after fully reading
damage.
Replace chain every four years or if
inspection reveals excessive wear on
links, pins, side plates and deformed,
bent, rusted or broken links.
- 1 -
NEVER sit, stand or ride on forks.
SEVERE PERSONAL INJURY or
DEATH could result.
DO NOT use in areas of multi level
floor surface that could create loss
of control and result in SEVERE
PERSONAL INJURY.
KEEP AWAY from open flame
when charging battery.
the instruction manual.
Battery is not charged
upon delivery. Please
charge after reading this
Operation and Service
Manual and the manual
supplied with charging
unit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST50A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bishamon ST50A

  • Page 1 Read this manual carefully and understand completely before operating stackers. Keep filing this manual for future reference. If this copy is lost, please contact your local supplier for a replacement. Explanation of Terms and Symbols Warning Caution In this manual, 「 」...
  • Page 2 - 2 -...
  • Page 3 Model ST50A ST98A STW38A STW65A ST80AWW ST98AWN Capacity (Kgs) Vertical Travel (mm) 1500 2420 1500 Fork Min. Height (mm) Fork Max. Height (mm) 1590 2510 1590 Overall Height (Min-mm) 1708 1734 1969 1967 1967 D' Overall Height (Max-mm) 2923 2949...
  • Page 4: Lifting And Lowering

    DO NOT use this stacker at all if repairs are required or if you suspect a malfunction. Perform the Pre-Operation checks before operating everyday. 1. Any damage, distortion or crack in post 2. Any damage, distortion or crack in carriage and forks 3.
  • Page 5: Battery And Charging

    (4) Horn Push the horn button. (5) Volt Meter Volt Meter shows the voltage of battery. Refer to for the battery remaining capacity. Battery life will decrease if dischaged over 80% continuously. (6) Battery and Charging ■ How to Charge Battery ①...
  • Page 6 Battery Power Unit Switch Box "UP" "Down" Volt Meter Buzzar Control Unit Speed Order Drive Wheel ・Forward ・Reverse Emergency Stop Electric Brake Unit Remote Control Cable C Buzzar Fuse Holder Unit Remote Control Cable B Unit Monitoring Cable A Unit Remote Control Cable A CB Cable A Unit Monitoring Cable B Unit Cable B...
  • Page 7 Fluid volume : 1.6 liters replace with same standard spec. Oil Brand Product Name Applicable Model No. JIS Spec. Esso Nuto H32, HP32, Unipower SQ32 ST50A GR-95D31R Idemitsu Super Hydraulic Fluid 32 ST80AWW, ST98A, ST98AWN GX-130E41R Showa Shell Terasu Oil 32, K32...
  • Page 8 The below show how to deal with relatively minor malfunctions. For other further issues, please contact your supplier of this stacker. Symptoms of malfunction Possible Cause Action ・Key swtich and main switch ・Turn on Main and Key switch is not turned on Does not run, and does not ・Battery sockeet is not ・Connect the battery socket...
  • Page 9 Should the unit malfunction within the warranty period (Within one (1) year of purchase) when it has been operated in accordance with the user manual and the warning labels on the unit, we will adjust the defective component,repair it, or send a replacement part free of charge.
