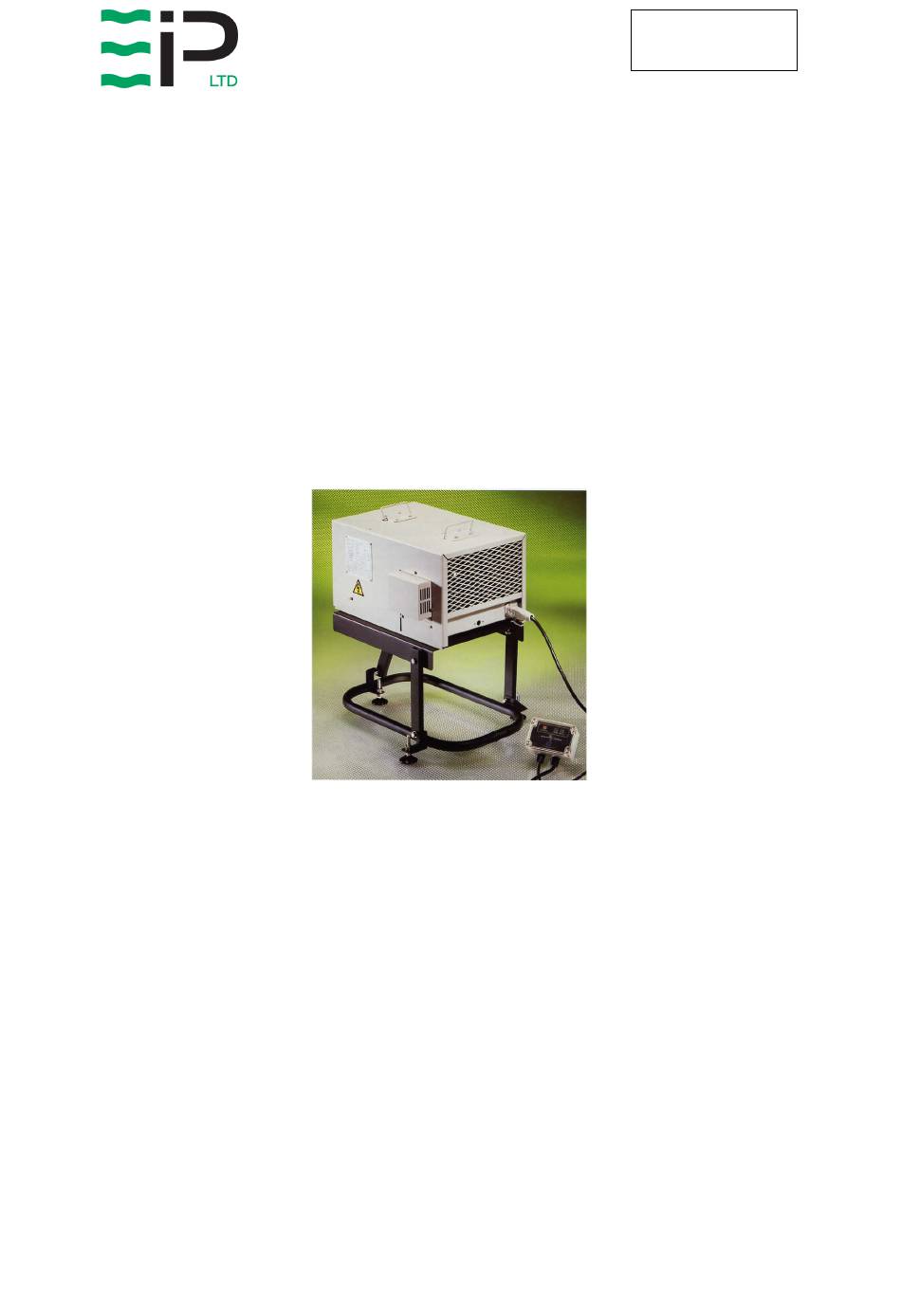

- Page 1 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 SPP6A DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 16...
- Page 2 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTION Children shall not play with the appliance. This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
- Page 3 Before disposing all refrigerant should be evacuated and disposed of as required by local environmental laws. • If there is any damage to the appliance, DO NOT USE and contact EIPL. • The appliance must not be used in a potentially explosive atmosphere.
-
Page 4: Package Contents
Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 SPP6A PACKAGE CONTENTS Item Description Quantity 11398GY-US Dehumidifier 1139805 Indicator box 1137500 Dehumidifier stand 2137509 Spanner 3014338 PVC tube – 12mm I/D 3086101 Jubilee clip TPC625 Manual Page 4 of 16... - Page 5 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 UNPACKING Carefully remove the SPP6A Dehumidifier unit from its transit box and visually check for signs of transit damage. If there is evidence of damage DO NOT attempt to operate the unit, call your supplier for advice. Do not discard the packing;...
- Page 6 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 SPECIFICATIONS Model: SPP6A MKII Length: 447mm Width: 340mm Height: 255mm Weight: 28 Kg (Typically) Paint Finish: Light Grey Power Supply: 115v ± 10%, 1 ph / 60Hz Power Rating: 250-300W Airflow: 250 M3/HR Welded 1.2m steel...
- Page 7 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 WATER EXTRACTION DUTY TEMPERATURE HUMIDITY WATER ºC EXTRACTION L/24HR 12.0 Page 7 of 16...
-
Page 8: Installation
Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 INSTALLATION POSITIONING: Position the dehumidifier unit in the center of the room to be conditioned if at all possible. However if a damp patch is particularly apparent the outlet grille should be directed towards it. - Page 9 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 OPERATION The operation of the dehumidifier is to remove moisture from the air by having it condense on the cold tubes of the evaporator coil. The air then passes over the hot condenser coil and returns to the conditioned space slightly warmer and dryer than when it entered the dehumidifier unit.
- Page 10 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 SPECIAL FEATURES CONTROL AND WARNING INDICATOR HUMIDISTAT The SPP6A dehumidifier unit is fitted with a control panel fixed to the outside of the dehumidifier cabinet, the panel incorporates two humidistats, which measure the relative humidity of the air within the room/space.
- Page 11 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 AMBER LAMP This indicates that the dehumidifier unit is in stand by mode (the relative humidity within the room/space is below the set point of the Control humidistat) and mains power is applied. GREEN LAMP This indicates that the dehumidifier unit is operating (the relative humidity within the room/space is above the set point of the Control humidistat).
- Page 12 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON.
-
Page 13: Troubleshooting
Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Tighten fan 1. Loose fan on shaft 2. Replace the fan motor 3. See Routine Maintenance 2. Fan motor burnt out 3. Dirty refrigeration coils Section Little or no airflow 4. - Page 14 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 SPP6A SPARE PARTS LIST ESCRIPTION UMBERS Product Part Number 11398GY-US Indicator Box 1139805 Timer 1619522 Evaporator Coil 2012414 Indicator Housing 2135713 Indicator Humidistat 2135727 Capillary Tube 3014253 Insul Tube 10mm ID 3014301 Drain Tube 3014338...
- Page 15 Drawing : - TPC625 Issue : - 1 Date : - 06/12/24 Page 15 of 16...
- Page 16 Bishop Auckland Suite 109, Newport News County Durham Virginia, 23606-2575 DL14 9AD Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 www.eipl.co.uk www.ebacusa.com sales@eipl.co.uk sales@ebacusa.com Page 16 of 16...
