STEP 3
1/4"
Fig 3.1
[10B]
[10C]
Fig 3.3
IMPORTANT Before drilling any holes for the shower panel brackets, be sure there are no hidden
cables or pipelines aligned with the desired drilling position.

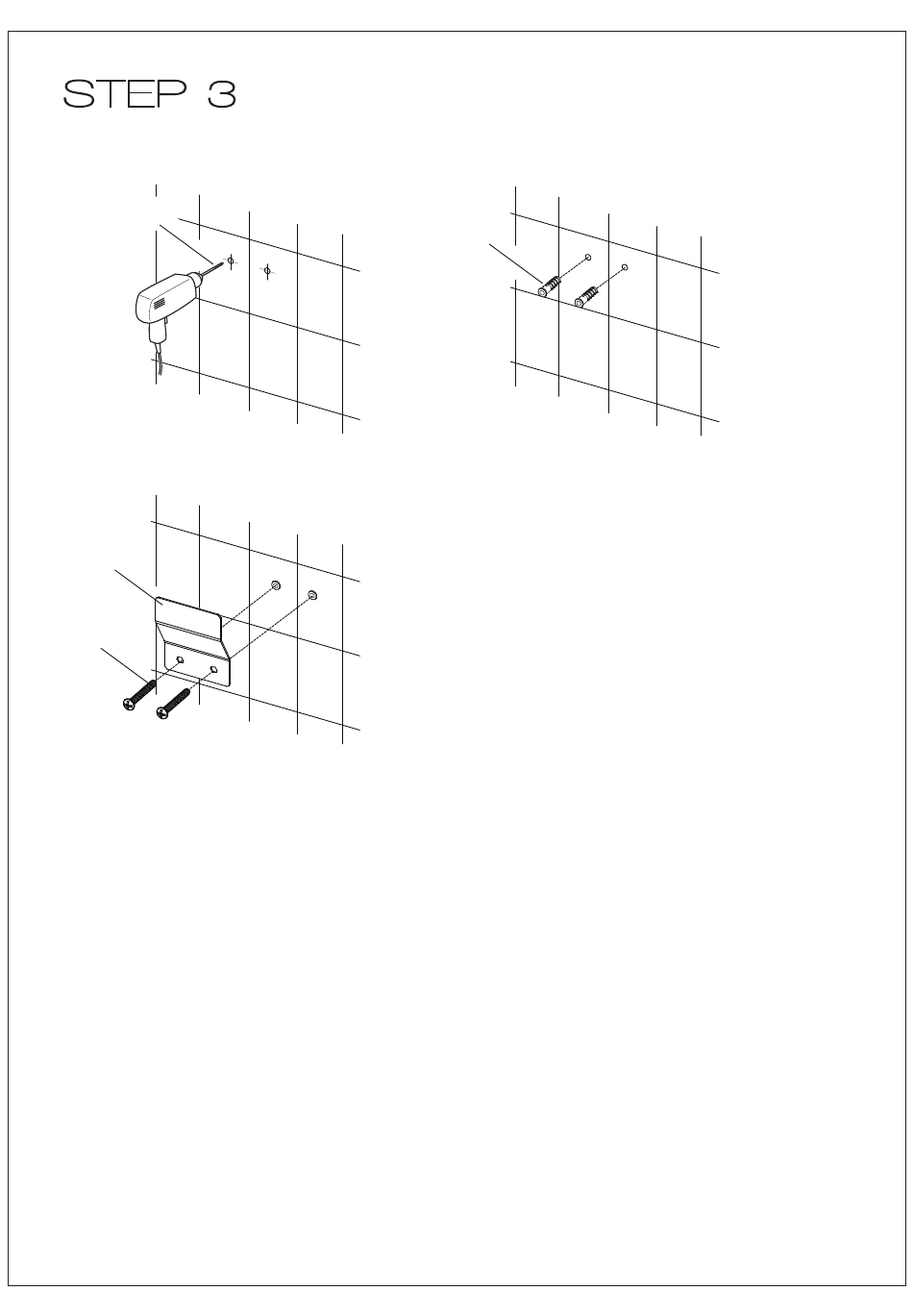

3-1 Drill 1/4" holes at the marked positions. (Fig 3.1)
3-2 Install the Anchors [10A] . (Fig 3.2)
3-3 Secure the Brackets [10B] with Screws [10C]. (Fig 3.3)
[10A]
Fig 3.2
