Anzzi COLLINES SP-AZ079 Installation & Operation Manual page 12

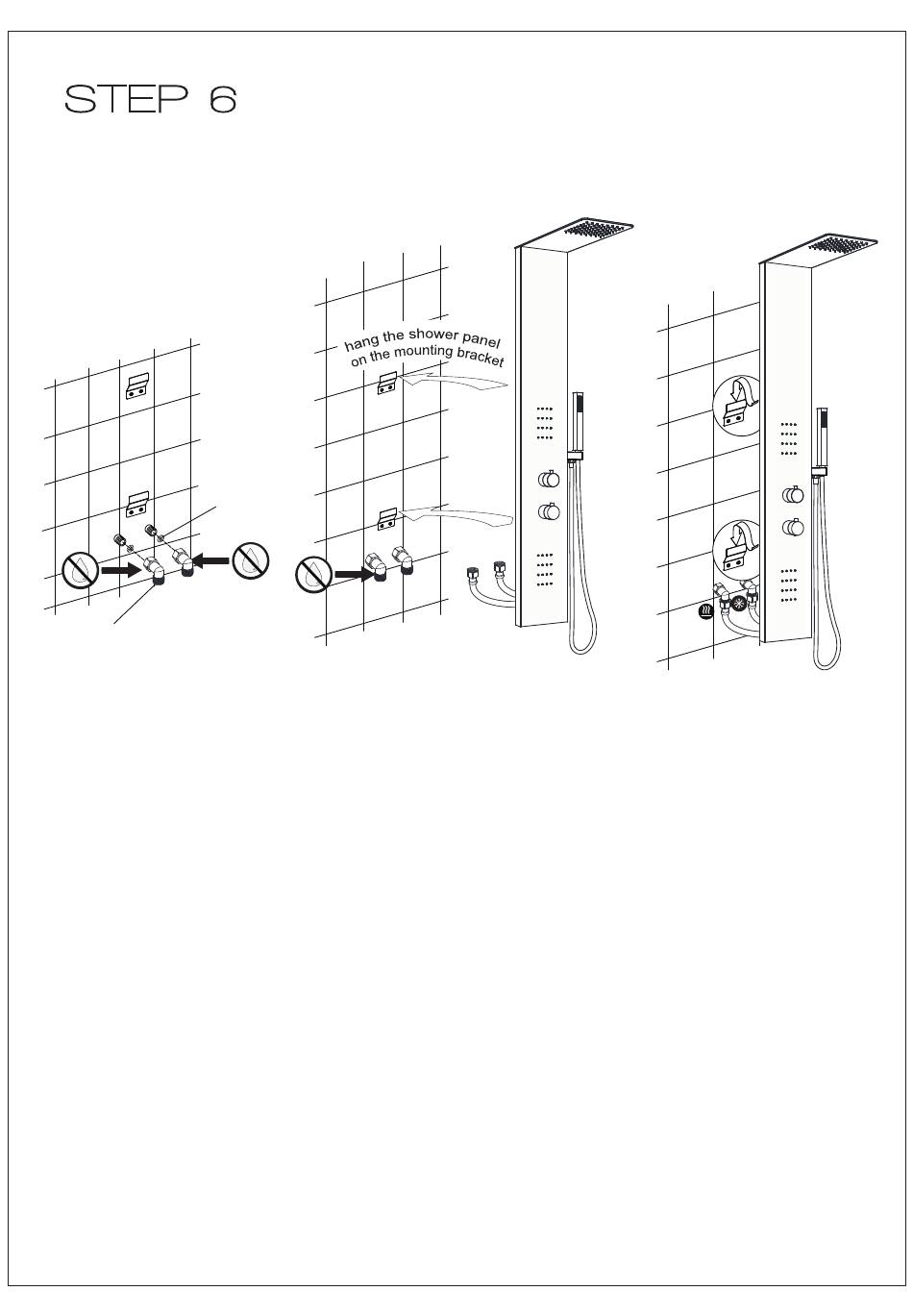

STEP 6
[16]
[17]
Fig 6.1
Install Washers [16] and Elbow Fittings [17] to the outlet. Adjust the direction of the
6-1
Elbow Fittings [17] and tighten them. DO NOT OVER TIGHTEN! (Fig 6.1)
6-2 Connect the Hoses labeled with "Hot" or "Cold" to the Elbow Fittings [17], then tighten
the nuts of the hoses. DO NOT OVER TIGHTEN! (Fig 6.2)
Notice: Make sure the hose labeled with "Hot" connected to the hot water outlet,
the hose labeled with "Cold" connected to the cold water outlet. Otherwise the
outlet water won't be warm or can't maintain the water temperature.
6-3 Before hanging the shower panel onto the wall, turn on the faucet and test all water
functions of the shower panel and check all connections for leaks. Retighten if necessary,
but do not overtighten. (Fig 6.2)
Slide the shower panel down until it rests on the mounting brackets. Slightly pull down
6-4
the shower panel to secure. (Fig 6.2, Fig 6.3)
Fig 6.2 Fig 6.3
pg. 12
