Anzzi COLLINES SP-AZ079 Installation & Operation Manual page 10

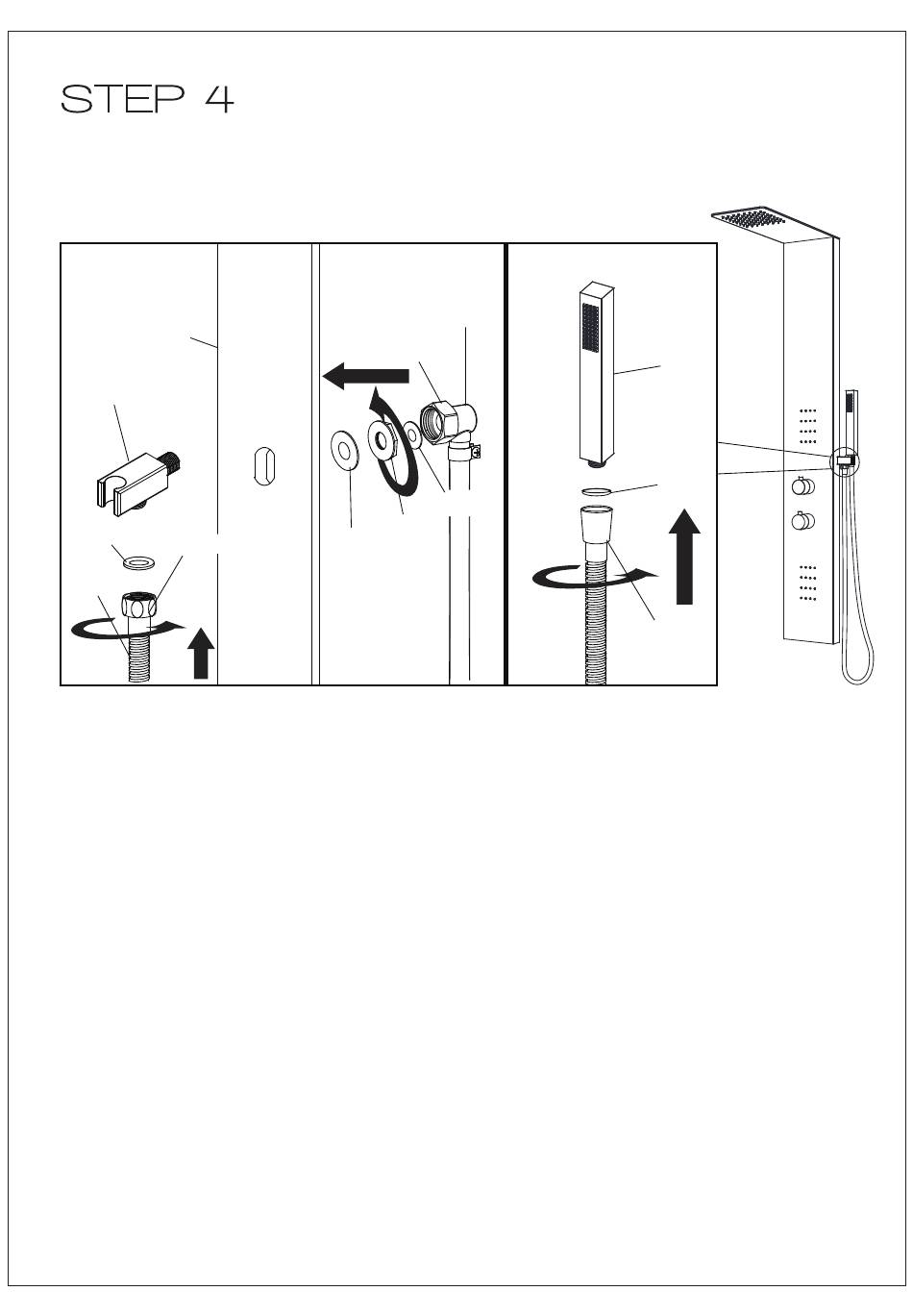

STEP 4
[02]
[14C]
[15A]
connector 1
[15B]
4-1 Install the Shower Holder [14C] through the hole from the right of Shower Panel [02].
Make sure the shower hose connector faces downward. (Fig 4.1)
4-2 Slide the Washer [14B] to the Shower Holder [14C] from the inside of
Shower Panel [02] and secure it by tightening the Nut [14A]. Do not over tighten. (Fig 4.1)
4-3 Install the connector with Washer [11] in it to the Shower Holder [14C].
Then tighten the nut of the connector to secure. (Fig 4.1)
4-4 Connect the connector 1 of Shower Hose [15B] to Shower Holder [14C] and
connector 2 to Hand shower [13]. Tighten the connectors to secure. Make sure
there are washers inside the connectors. (Fig 4.1, Fig 4.2)
connector
nut
[14A]
[14B]
Fig 4.1
[11]
Fig 4.2
[13]
[15A]
connector 2
pg. 10
