Manhattan Comfort GRAN05 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GRAN05
DR-500
REV. 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRAN05 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan Comfort GRAN05

Summary of Contents for Manhattan Comfort GRAN05

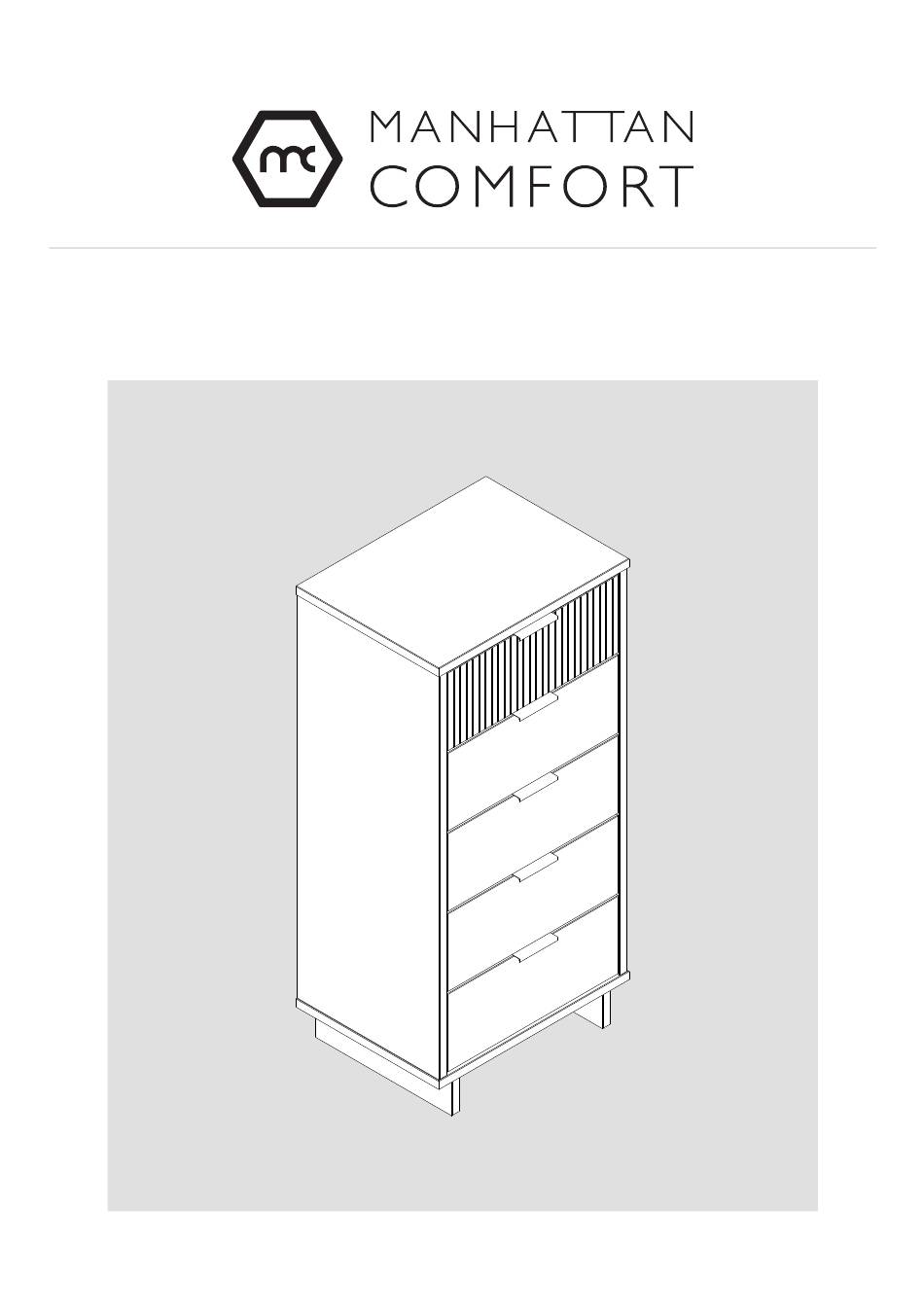

  • Page 1 GRAN05 DR-500 REV. 00...

  • Page 2: For Best Results

    STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: •Do not throw away packaging materials until assembly is complete. •Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •Proper assembly requires two people.

  • Page 3: Included In This Package

    Included in this package: 33Lb Top Panel Back Panel Right Side Panel Left Side Panel Bottom Panel Foot Feet Crossbar Top Drawer Front Drawer Front Drawer Back Drawer Right Side Drawer Left Side Drawer Bottom Top Drawer Support Top Drawer Larger Division Top Drawer Smaller Division Back Rail...
  • Page 4 Included in this package: D x 5 C x 10 B x 40 A x 20 #PX.017 #259 #23857 F x 26 H x 10 I x 5 E x 26 G x 4 #10386 #11169 #292 #10385 #284 TIPOVER RESTRAINT KIT K x 52 L x 8...
  • Page 5 Fix the hardware L to part 07 with screw K. Then, attach the parts 06-07 with the hardware B. B x 4 L x 2 K x 4 Fix the part 07 to part 06 with screw K. K x 4...
  • Page 6 Fix the part 05 to parts 06-07 with screw I and tool M. I x 5 Attach the parts 03-04 to part 05 with hardware B. Then, fix them with screw H. Pay attention in detail to ensure correct assembling. B x 4 H x 6...
  • Page 7 Attach part 02 to parts 03-04-05 whith hardware B. Attach part 02 to parts 03-04-05 whith hardware B. Then secure them with screw H. Then secure them with screw H. Attention, position the pre-drilling Attention, position the pre-drilling towards the internal side. towards the internal side.
  • Page 8 Fix the hardware E to part 01. E x 6 Attach the part 01 to parts 02-03-04 with hardware B. Then, apply the hardware F and lock it according the example below. Pay attention in detail to ensure correct assembling. B x 8 F x 6...
  • Page 9 Attach part 17 to part 02 with screw H. Fix harware L with screw K in part 02 in the pre-drilled holes idicated. L x 6 K x 12 H x 2 Fix screw K on parts 01-03-04. K x 12...
  • Page 10 Remove the inner part of the slide as shown in the example below.
  • Page 11 Fix hardware E to parts 08 and 09. E x 20 Specially to part 08, fix the part 14 with screw G. Please, start by arranging the ends using the pre-drills. Then fix the intermediate screws. G x 4...
  • Page 12 The sides of the drawers have pre-defined holes to help with fixing. Correctly position the internal part of the slide (removed in step 10 on page 10) with the pre-defined holo on the drawer side. Drawer pre-set holes Then fix them with screw K. Screws Screws K x 20...
  • Page 13 Apply the part 13 in the groove of the parts 11-12. TOP DRAWER Attach the part 10 to parts 11-12-13. Then, fix the parts 11-12 to part 10 with screw A. A x 20 TOP DRAWER...
  • Page 14 Apply the hardware D to parts 08-09. Then, fix them with screw C. TOP DRAWER C x 10 D x 5 Attach part 15 to parts 16.
  • Page 15 Attach Assembled Divison from the last step into the Top Drawer identified by part 08. Insert the drawer carefully. You must put a drawer opening limiter screw. Firstly, keep the drawer partially open so that the limiter screw hole is behind the limiter bracket according to the detail.
  • Page 16 ATTENTION: ensure the limiter screw hole is before the limiter bracket. Then, place the screw #PA.010 to retain the full opening of the drawer. Limiter bracket N x 2 Apply the same process to drawer opening limiter to the others drawers. N x 8...
  • Page 17 You must install the Tipover Restraint Kit (J) provided, in the rear side of the furniture. Position the hardwares #18256EXP and #20522. Fix them with screw #11179. TIPOVER #20522 RESTRAINT KIT #11179 #2610 x 1 #18256EXP #16973 x 1 #11179 x 1 #20522 x 2 #18256EXP x 1 Approach the furniture as close as possible to the wall.
  • Page 18 Put in the hardware #16973 to the hole that you drilled on the wall. Then, position the hardwares #18256EXP and #20522. Finally, fix them with screw #2610. #16973 #20522 #2610 #18256EXP #16973 #20522 #2610 #18256EXP Name and address informaton for the manufacture responsible for the anti-tip hardware and date of production can be found on the label on the back of the furniture.

  • Page 19: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This war - ranty is valid in the United States of America and Canada.
  • Page 20 DR-501 REV. 00...

  • Page 21: For Best Results

    STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: •Do not throw away packaging materials until assembly is complete. •Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •Proper assembly requires two people.

  • Page 22: Included In This Package

    Included in this package: Top Panel Back Panel Right Side Panel 44Lb Left Side Panel Bottom Panel Feet Crossbar Foot Top Drawer Front Drawer Front Drawer Back Drawer Right Side Drawer Left Side Drawer Bottom Drawer Support Top Drawer Support Back Rail 13Lb 13Lb...
  • Page 23 Included in this package: D x 06 C x 12 B x 44 A x 12 #PX.017 #259 #23857 F x 18 H x 12 I x 6 E x 18 G x 4 #10386 #11169 #292 #10385 #284 TIPOVER RESTRAINT KIT K x 52 L x 10...
  • Page 24 Fix the hardware L to part 06 with screw K. Then, attach the parts 06-07 with the hardware B. B x 4 L x 2 K x 4 Fix the part 06 to part 07 with screw K. K x 4...
  • Page 25 Fix the part 05 to parts 06-07 with screw I and tool M. I x 6 Attach the parts 03-04 to part 05 with hardware B. Then, fix them with screw H. Pay attention in detail to ensure correct assembling. B x 4 H x 6...
  • Page 26 Attach part 02 to parts 03-04-05 whith hardware B. Then secure them with screw H. Attention, position the pre-drilling towards the internal side. As per drawing below. B x 4 H x 4...
  • Page 27 Fix the hardware E to part 01. E x 6 Attach the part 01 to parts 02-03-04 with hardware B. Then, apply the hardware F and lock it according the example below. Pay attention in detail to ensure correct assembling. B x 8 F x 6...
  • Page 28 Attach part 16 to part 02 with screw H. Fix harware L with screw K in part 02 in the pre-drilled holes idicated. H x 2 L x 8 K x 16 Fix screw K on parts 01-03-04. K x 16...
  • Page 29 Remove the inner part of the slide as shown in the example below.
  • Page 30 Fix hardware E to parts 08 and 09. E x 12 Specially to part 08, fix the part 15 with screw G. Please, start by arranging the ends using the pre-drills. Then fix the intermediate screws. G x 4...
  • Page 31 The sides of the drawers have pre-defined holes to help with fixing. Correctly position the internal part of the slide (removed in step 10 on page 10) with the pre-defined holo on the drawer side. Drawer pre-set holes Then fix them with screw K. Screws Screws K x 12...
  • Page 32 Apply the part 13 in the groove of the parts 11-12. Then, attach the part 14 to parts 08-09 with hardware B. TOP DRAWER B x 06 Attach the part 10 to parts 11-12-14 with the hardware B. Then, fix the parts 11-12 to part 10 with screw A. TOP DRAWER Bx 06 Ax 12...
  • Page 33 Apply the hardware D to parts 08-09. Then, fix them with screw C. TOP DRAWER C x 12 Dx 06 Insert the drawer carefully. You must put a drawer opening limiter screw. Firstly, keep the drawer partially open so that the limiter screw hole is behind the limiter bracket according to the detail.
  • Page 34 ATTENTION: ensure the limiter screw hole is before the limiter bracket. Then, place the screw #PA.010 to retain the full opening of the drawer. Limiter bracket N x 2 Apply the same process to drawer opening limiter to the others drawers. N x 4...
  • Page 35 You must install the Tipover Restraint Kit (J) provided, in the rear side of the furniture. Position the hardwares #18256EXP and #20522. Fix them with screw #11179. TIPOVER RESTRAINT KIT #2610 x 1 #16973 x 1 #20522 #11179 x 1 #11179 #20522 x 2 #18256EXP...
  • Page 36 Put in the hardware #16973 to the hole that you drilled on the wall. Then, position the hardwares #18256EXP and #20522. Finally, fix them with screw #2610. #16973 #16973 #20522 #2610 #20522 #18256EXP #2610 #18256EXP Name and address informaton for the manufacture responsible for the anti-tip hardware and date of production can be found on the label on the back of the furniture.

  • Page 37: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This war - ranty is valid in the United States of America and Canada.
  • Page 38 NS-501 REV. 00...
  • Page 39 STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: •Do not throw away packaging materials until assembly is complete. •Assemble item on a soft surface, such as cardboard or carpet, to protect finish. TOOLS REQUIRED SUPPORT SITE View our assembly video online:...

  • Page 40: Included In This Package

    Included in this package: 26Lb Top Panel Back Panel Left Side Panel Right Side Panel Bottom Panel Feet Crossbar Foot Top Drawer Front Drawer Back Drawer Right Side Drawer Left Side Top Drawer Support Drawer Bottom Drawer Front...
  • Page 41 Included in this package: D x 2 C x 4 B x 20 A x 8 #PX.017 #259 #23857 TIPOVER RESTRAINT KIT I x 1 H x 4 F x 12 G x 4 E x 12 #KT.002 #11169 #10386 #284 #10385 N x 4...
  • Page 42 Fix the hardware L to part 06 with screw J. Then, attach the parts 06-07 with the hardware B. B x 4 L x 2 J x 4 Fix the part 06 to part 07 with screw J. J x 4...
  • Page 43 Fix the part 05 to parts 07 with screw N and tool M. N x 4 Attach the parts 03-04 to part 05 with hardware B. Then, fix them with screw H. Pay attention in detail to ensure correct assembling. B x 4 H x 4...
  • Page 44 Fix the hardware E to part 01. E x 4 Attach the part 01 to parts 03-04 with hardware B. Then, apply the hardware F and lock it according the example below. Pay attention in detail to ensure correct assembling. B x 4 F x 4...
  • Page 45 Position correctly part 02 and fix it with the hardware K. Pay attention in detail to ensure correct assembling. K x 14...
  • Page 46 Remove the inner part of the slide as shown in the example below.
  • Page 47 Fix hardware E to parts 08 and 14. E x 8 Specially to part 08, fix the part 12 with screw G. Please, start by arranging the ends using the pre-drills. Then fix the intermediate screws. G x 4...
  • Page 48 The sides of the drawers have pre-defined holes to help with fixing. Correctly position the internal part of the slide (removed in step 08 on page 09) with the pre-defined holo on the drawer side. Drawer pre-set holes Then fix them with screw J. Screws Screws J x 8...
  • Page 49 Apply the part 13 in the groove of the parts 10-11. TOP DRAWER Attach the part 09 to parts 10-11-13. Then, fix the parts 10-11 to part 09 with screw A. A x 8 TOP DRAWER...
  • Page 50 Apply the hardware D to parts 08-14. Then, fix them with screw C. TOP DRAWER C x 4 D x 2 Insert the drawers carefully.
  • Page 51 You must install the Tipover Restraint Kit (I) provided, in the rear side of the furniture. Position the hardwares #18256EXP and #20522. Fix them with screw #11179. TIPOVER RESTRAINT KIT #2610 x 1 #20522 #16973 x 1 #11179 #11179 x 1 #18256EXP #20522 x 2 #18256EXP x 1...
  • Page 52 Put in the hardware #16973 to the hole that you drilled on the wall. Then, position the hardwares #18256EXP and #20522. Finally, fix them with screw #2610. #16973 #20522 #2610 #16973 #18256EXP #20522 #2610 #18256EXP Name and address informaton for the manufacture responsible for the anti-tip hardware and date of production can be found on the label on the back of the furniture.
  • Page 53 WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This war - ranty is valid in the United States of America and Canada.

This manual is also suitable for:
