- Page 1 ATEL 5G CPE User Manual ATEL 5G CPE User Manual 11/01/22...
- Page 2 ATEL 5G CPE User Manual 1. About this Manual The content of this User Manual has been made as accurate as possible. However, due to continual product improvements, specifications and other information are subject to change without notice. FCC ID: XYO-PW550 2.
- Page 3 ATEL 5G CPE User Manual 3.1 Login Open your Web browser and enter 192.168.0.1 in the address bar; Login window will popup; When prompted for User name and password, enter the following username and password. Username/Password: admin/on label 3.2 Dashboard After successful login, the following screen will appear and you will see four main menus on the top bar of the WebGUI.
- Page 4 ATEL 5G CPE User Manual 3.3 Status On this page, you can see WAN Status, LAN Status, LTE Status, Software, Device List and Statistics. 3.3.1 WAN Status From the WAN Status, you can see WAN IP Address, WAN Primary DNS and WAN Secondary DNS information 3.3.3 Cellular Status...
- Page 5 ATEL 5G CPE User Manual 3.3.4 Network Status CA From this page, you can know the network status of the device. 3.3.5 Software From this page, you can know the IDU software version and the LTE software version. 11/01/22...
- Page 6 ATEL 5G CPE User Manual 3.3.6 Device List From this page, you can know the users’ information, include hostname, MAC address, IP address and expires time. 3.3.7 Statistics From this page, you can know the users’ information, include hostname, MAC address, IP address and expires time.
- Page 7 ATEL 5G CPE User Manual to the system by the new password. And you can click the “Restore” button to load default to the factory setting and click the “Reboot” button to reboot the device. 3.4.1.2 LAN Settings Clicking on the “LAN Settings” tab will take you to the “LAN Settings” header page.
- Page 8 ATEL 5G CPE User Manual ➢ IP Address - Enter the IP address of your router (factory default: 192.168.0.1). ➢ Subnet Mask - An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask.
- Page 9 ATEL 5G CPE User Manual 1. If you change the IP Address of LAN, you must use the new IP address to login to the CPE router. 2. If the new LAN IP address you set is not in the same subnet, the IP address pool of the DHCP server will change at the same time, while the Virtual Server and DMZ Host will not take effect until they are re-configured.

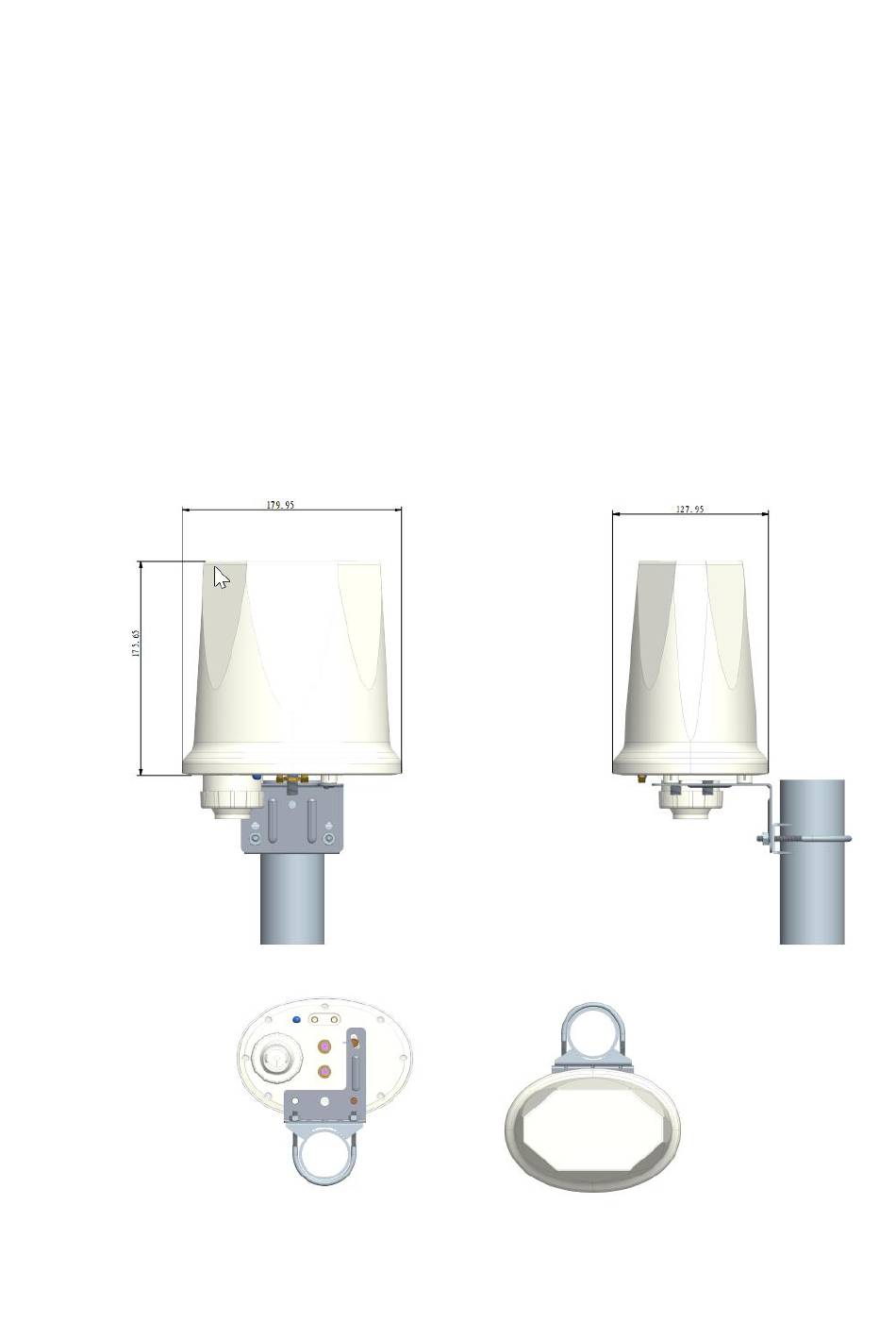

- Page 10 ATEL 5G CPE User Manual 3.4.1.6 Install the device Gather tools and materials Install SIM cards Install the PoE cable Select a location Secure the device to the wall 3.4.1.7 Testing the connection Check the LED on the device Open the APP and BT on your smart phone...
- Page 11 ATEL 5G CPE User Manual 3.4.4 Security 3.4.4.1 MAC Filtering This function is a powerful security feature that allows you to specify which wireless client users are not allowed to surf the Internet. The default MAC filtering setting is disabled, so you should enable it before you begin to configure the filter.
- Page 12 ATEL 5G CPE User Manual 3.4.4.2 IP/Port Filtering From this page, you can configure the IP/Port filter to forbid relevant users to login the router device. The default IP/Port filter setting is disabled, so you should enable it before you begin to configure the filter.
- Page 13 ATEL 5G CPE User Manual 3.4.4.3 Port Forwarding Clicking on the header of the “Port Forwarding” button will take you to the “Port Forwarding” header page. Clicking on the “Add New” button, you can configure IP address, port range to achieve the port forwarding purpose.
- Page 14 ATEL 5G CPE User Manual ➢ IP Address- The IP address of the PC running the service application; ➢ Public Port- The port of server-side; ➢ Private Port- The port of client-side, it can be same with the public port;...
- Page 15 ATEL 5G CPE User Manual to "pass through" the router. 3.4.4.6 Demilitarized Zone From this page, you can configure a De-militarized Zone (DMZ) to separate internal network and Internet. ➢ DMZ IP Address- The IP address of your PC. (such as 192.168.0.3) 3.4.4.7 Parental Control...
- Page 16 ATEL 5G CPE User Manual 3.4.5 Adanced 3.4.5.1 Diagnostic On this page, you can see "Ping" and Traceroute. Ping: you can ping IP address and domain name.Traceroute: you can traceroute IP address and domain name 11/01/22...
- Page 17 ATEL 5G CPE User Manual 3.4.5.2 Dynamic DNS The dynamic DNS function is disabled in default, you can choose the dynamic DNS provider to configure the DDNS settings. 3.4.5.3 Backup&Restore Clicking the “Backup” button, the current settings will be saved as a data file to the local PC.
- Page 18 ATEL 5G CPE User Manual ➢ Remote management(http) You can access to the router via HTTP IP address and achieve the remote control function when the remote management feature is enabled. ➢ Remote management(https) You can access to the router via HTTPS IP address and achieve the remote control function when the remote management feature is enabled.
- Page 19 ATEL 5G CPE User Manual 3.4.5.6 WAN Settings From this page, you can set the wan’s connection mode such as Cellular WAN, Load Balancing, Failover, ETH WAN or IP Passthrough. 3.4.6 Cellular Settings 3.4.6.1 Network On this page, you can choose network mode, "Auto", "4G Only" and "5G Only".
- Page 20 ATEL 5G CPE User Manual 3.4.6.2 APN Settings The default APN mode is automatic and APN is NULL, if you want to configure the LTE APN, you should choose the manual mode, then you can configure the APN settings by clicking on the “Add New” button.
- Page 21 ATEL 5G CPE User Manual then click “Set as default” to make it take effect. 3.4.6.3 Network Watchdog Clicking on the header of the “Ping Watchdog” tab will take you to the “Ping Watchdog” page. From this page, you can configure “Ping Watchdog” feature.
- Page 22 ATEL 5G CPE User Manual 3.4.6.4 IP Passthrough From this page, you can set Bridge mode, the menu is Enable/Disable. 3.4.6.5 PCI Lock On this page, you can lock or unlock the PCI and Earfcn connected to the LTE. 3.5 SMS There are 3 function on this page, they are inbox, outbox and drafts.
- Page 23 ATEL 5G CPE User Manual FCC Regulations ATEL 5G CPE complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 ATEL 5G CPE User Manual Glossary Term Definition zhfei V.1.0 11/01/22...
