ATEL RE600 by ATEL
User Manual V1.2 Generic
Sep 14, 2024

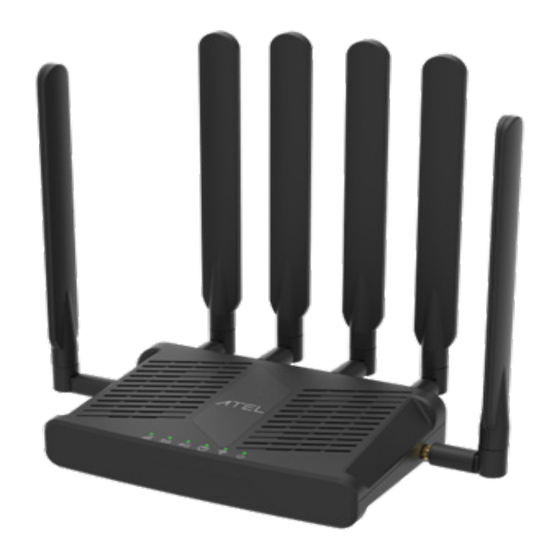

RE600 5G FWA CPE
User Manual
1
2
2
5
5
5
6
6
7
7
8
8
9
9
10
10
11
15
23
24
30
34
39
42
42
42
43
44
45
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atel RE600 5G FWA CPE
Summary of Contents for Atel RE600 5G FWA CPE
- Page 1 RE600 5G FWA CPE User Manual Table of contents About this manual Router interfaces Configuring the router 3.1 Login 3.2 Dashboard 3.3 Status 3.3.1 WAN status 3.3.2 Wi-Fi LAN status 3.3.3 Cellular status 3.3.4 Network status CA 3.3.5 Software 3.3.6 Device list 3.3.7 WLAN device list...
- Page 2 The contents of this User Manual are as accurate as possible. However, due to continuous product improvements, specifications, and other information the manual is subject to change without notice. Please visit www.ATEL-USA.com or contact ATEL USA for additional information and the latest version of this User Manual.
- Page 3 ■ DC: Power (12V DC) jack to connect the power supply from the power adapter provided with the device accessories. Note: Please only use accessories provided by ATEL USA. The use of other accessories may damage the device and could void the warranty.
- Page 4 ■ W – WPS: Press this button to activate the WPS feature. ■ R – Reset: Press this keyhole for up to 10 seconds to reset the router to factory default settings. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 5 Password: Unique to your device, check the device label for the password. 3.2 Dashboard After successfully logging in, the screen below will appear, and you will see four main menus on the top bar of the WebGUI. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 6 WLAN device list and statistics. 3.3.1 WAN status On the WAN status page, you can view the WAN IP address, WAN primary DNS, and WAN secondary DNS information. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 7 3.3.3 Cellular status On this page, you can view the cellular information, such as connection status, SIM status, IMEI, IMSI, RSRP, RSRQ, RSSI, SINR, PCI, cell ID, and band. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 8 EARFCN, bandwidth, MIMO, modulation, and RSRP. Figure 9: Cellular network status CA 3.3.5 Software On this page, you can view the software version and the module software version of the RE600 5G router. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 9 On this page, you can view the information of the connected users (wireless), including hostname, MAC address, IP address, MCS, and you can also receive signal information for each user. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 10 Note: Statistics data might differ from the data on the ISP side. 3.4 Settings On this page, you will find some basic and advanced configuration options, such as basic, Wi-Fi, VPN, security, advanced, and cellular settings. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 11 On this page, you can view the existing settings for the LAN/VLAN (Virtual Local Area Network) connections and modify them as per your requirements. Figure 15: Basic > LAN/VLAN settings ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 12 IP address. Note: 1. If you change the IP Address for your LAN, you must use the new IP address to login to the router. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 13 On this page, you can manually upgrade the software version of the router from the connected PC. It will take several seconds (~120) to complete the whole upgrading process, and then, the router will automatically reboot. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 14 “Remote upgrade”. By default, “Remote upgrade” is enabled. 3.4.1.6 Automatic reboot On this page, you can set up the automatic reboot feature. It is disabled by default. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 15 Figure 22: Wi-Fi > Wi-Fi settings By default, the combined “Wi-Fi 2.4G & 5G” feature is enabled, which means both 2.4GHz and 5GHz are active and use the same SSID name/password. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 16 ¾ Wi-Fi standard: This router can be operated in six different wireless modes: “11b/g/n/ ax mixed mode”, “11b/g/n mixed mode”, ”11b/g mixed mode”, “11n only”, “11g only”, “11b only”. You can set your preferred mode as shown in the image below. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 17 You can modify the security mode and password from this page. ¾ Security Mode: Disabled, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE. ¾ WPA Algorithms: TKIP, AES, TKIP/AES. ¾ Password: 1~32 characters. ¾ Key renewal interval: 0~4194302s. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 18 This router can be operated in four different wireless modes: “11a/n/ac/ax mixed mode”, “11n only”, “11n/ac mixed mode”, and “11a/n/ac mixed mode”. Figure 27: 5GHz > Wi-Fi standards ¾ Network name (SSID) ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 19 3.4.2.2 Guest Wi-Fi settings On this page, you can set the configuration for the guest Wi-Fi as 2.4GHz or 5GHz (as required). The guest Wi-Fi is disabled by default. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 20 When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast of the router. If you disable this feature, the Wi-Fi SSID of the router is invisible. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 21 You need to scan the Wi-Fi network from your wireless device/client and select the available Wi-Fi SSID from your RE600. Press the WPS button for 10 seconds or click on Start PBC available on the WebGUI. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 22 “Block”. The connection between the wireless clients and the router will be immediately disconnected. The users that you kicked out, will be shown on the “Kicked Wireless Stations” list. If needed, you can restore them. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 23 You can find different VPN types (i.e., PPTP, IPsec, L2TP, and GRE). You must know how to use them, otherwise, check with your ISP or VPN provider. Figure 34: VPN ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 24 The new rules will be shown on the rule table. You can delete the rules that you have selected and sequentially add new rules. The maximum rule count is 10. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 25 If you choose “Dropped” here, the action of the new rule would be “Accepted”. Otherwise, the action is to “Drop” by default, and the packet that doesn’t match with any rules would be accepted. Figure 39: IP/Port filtering settings ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 26 ¾ Port Range: A range of the service port or a set fixed value. ¾ Protocol: UDP, TCP, TCP & UDP. ¾ WAN Interface: LTE and ETH WAN. Choose which interface to do the port forwarding. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 27 It is a feature that is similar to port forwarding. Click on “Add New” to insert a new rule. You can configure the IP Address, public port, private port, and protocol to activate the virtual server function. Figure 43: Virtual server settings ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 28 Note: VPN passthrough does not mean that the router can create a VPN endpoint. VPN passthrough is a feature that allows VPN traffic created by other endpoints to “pass through” the router. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 29 It is disabled by default. If you enable parental control, the rules added to the rule table will determine when access to the Internet or website will be denied. Internet or website access will be automatically blocked in the defined time. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 30 Traceroute: allows you to check the host/route for an IP address/domain name. Figure 48 Advanced > Diagnostic 3.4.5.2 Dynamic DNS On this page, you can set up the DDNS service. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 31 Figure 50 Advanced > Backup & restore 3.4.5.4 Network management On this page, you can view and modify features related to the management of this router. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 32 On this page, you can set the current time, time zone, NTP server and NTP synchronization. When this router obtains the WAN IP, the current time will automatically synchronize with the NTP server. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 33 PC/device connected to Ethernet port LAN1. 6. ETH IP passthrough: After it is enabled, the wired WAN IP address will be assigned to the PC/device connected to Ethernet port LAN1. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 34 4G Only: The router will use only 4G bands to connect to the network. 5G Only: The router will use only 5G bands to connect to the network. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 35 “Auto”. If you want to configure the APN, you should first choose the SIM, then choose manual mode, and last you can define the required APN settings by clicking on “Add New”. Figure 56: Cellular settings > APN ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 36 ISP. Sometimes the router finds connected and acquired WAN IP addresses from the network but no data/internet services. In that scenario, this feature can reboot/reattach to the network. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 37 On this page, you can set up the PCI lock value to optimize the performance of the device. Figure 60: Cellular settings > PCI lock 3.4.6.5 SIM settings On this page, you can define the SIM selection and priority as required. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 38 SIM or not. When using link detection, you can use latency, jitter, packet loss or signal strength to make a judgment. You also need to define which IP address to use for detection purposes. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 39 Cut off: To stop the data flow or disconnect from the Internet. Switch to SIM2/SIM1: switch to another SIM card. Cycle start date: Define the starting date when the data consumption statistics begin each month. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 40 Time: The device will switch back to the primary SIM after the defined usage times. Date: The device will switch back to the primary SIM card on the date you designated. Figure 64: DNS settings ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 41 To edit and send a text message, click on “New message”. Figure 66: New message Note: Please confirm with your service provider that the SMS feature is provisioned by the network first. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 42 Cloud Connect Remote Management You can manage the device using the ATEL Remote Management Platform ATRACS, by visiting http://aags.a-tracs.com or https://aags.a-tracs.com. The ATRACS app is also available on cell phones. Please scan the below QR code to download and install it.
- Page 43 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. FCC CAUTION: Any changes or modification not expressly approved by ATEL, the party responsible for compliance, could void the user’s authority to operate this equipment.
- Page 44 When some wireless devices are used with certain hearing devices (including hearing aids and cochlear implants) users may detect a noise which may interfere with the effectiveness of the hearing device. ATEL RE600 by ATEL User Manual V1.2 Generic Sep 14, 2024...
- Page 45 Disclaimer: Certain variations may be present between the device and user manual description depending on software release or specific network services. ATEL shall not be held legally responsible for such deviations, if any, nor for their potential consequences. Limited warranty: The full ATEL USA warranty policy can be found at www.atel-usa.com/warranty.
