Quick Links
Meet Your Device

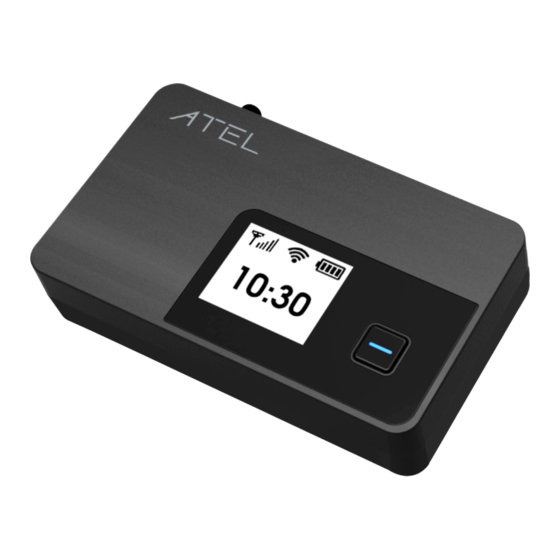

ATEL V810VD
4G LTE Cat-4 Fixed Wireless Access
Router + POTS Replacement
Models Covered:
Model
LTE Bands
V810VD
B2/4/5/12/13/14/66/71
Version 3.0
A quick look at your device:
1.
LCD Display
Displays Home, Device
Information, WiFi Login
Information (SSID and
Password), and Online Portal
Login Information.
2.
Power Button
Power the V810 On/Off by
pressing and holding this
button for up to 10 seconds.
Short press to wake up the
screen.
3.
Battery Port
Battery port connect to the
AA battery (AA batteries
Included) holder or a Ni-MH
rechargeable battery pack
(may be sold separately).
4.
Reset Button
Use a pin to push and hold
this button for 3 seconds for
a factory reset.
5.
SIM Card Slot
As needed, insert your 4FF SIM card into this spring-loaded
6.
Type C Port
Use this port to connect the
USB-C cable to a wall adapter
for external power.
7.
Phone Port (RJ11)
Use a telephone cord to
connect your telephone base
to this port.
8.
Ethernet Port (RJ45)
Insert an ethernet cable to
this port and plug the other
end into your computer for
internet access.
9.
Antenna Connector
Install an optional antenna
(may be sold separately) to
increase signal strength. You
may have to pull off the back
rubber cover prior to
installing.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atel V810VD
Summary of Contents for Atel V810VD
- Page 1 A quick look at your device: Meet Your Device LCD Display Type C Port ATEL V810VD Use this port to connect the Displays Home, Device Information, WiFi Login USB-C cable to a wall adapter 4G LTE Cat-4 Fixed Wireless Access Information (SSID and for external power.
- Page 2 Setting up your device: Step 1: Insert a SIM (if applicable) Remove the back cover. Carefully lift the battery holder from the side. Step 3: Power on the Device Check for a pre-installed SIM card or install a SIM card provided by your wireless carrier. To connect your V810 to the power outlet, insert To install, insert the 4FF Nano SIM card into the your USB cable to the device USB-C port and plug...
- Page 3 Step 4: Connecting a Telephone to your Step 6: Initial Activation V810 Once the above 4 steps are completed, with a service plan subscription, your V810 will Complete Steps 1, 2 and 3 above. Plug one end of the telephone cord to the RJ11 automatically detect the wireless network and Phone Port of your V810 and plug the other end of activate the SIM card services.
- Page 4 For more information Please refer to your V810 User Manual for additional information or visit the ATEL USA website Device and Step 8: Using your V810 Hotspot Wi-Fi Support pages at www.ATEL-USA.com. Locate your Network Name (SSID) / Password from your V810 LCD Display or device label under the battery holder.
