Atel AXIS 1 Quick Start Manual

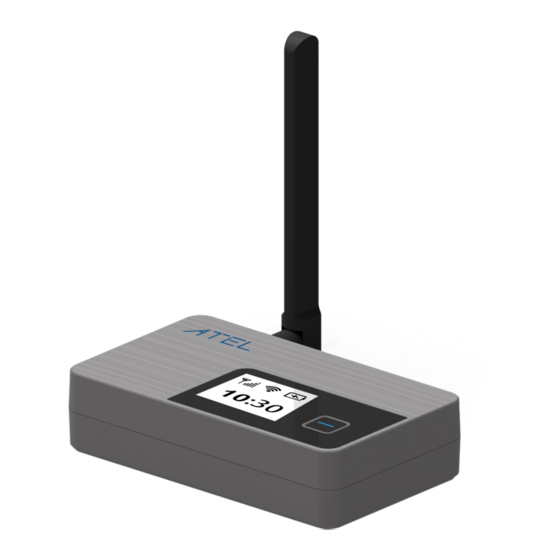

Meet Your Device
ATEL 1
4G LTE Fixed Wireless Access Router
Models Covered:
Model LTE Bands
V810A B2/4/5/12/13/14/66/71
Version 3.0
A quick look at your device:
1 2 3 4
1. LCD Display
Displays Home, Device
Information, Hotspot login
information, and Online Portal
login information.
2. Power Button
Power the V810A On/Off by
pressing and holding this button
for up to 10 seconds. Short press
to wake up the screen.
3. Battery Port
Battery port used to connect to
the NiMH rechargeable battery
pack (may be sold separately).
4. Reset Button
Use a pin to push and hold this
button for 3 seconds for a factory
reset.
6 7
5
5. SIM Card Slot
Insert your 4FF SIM card into this
spring-loaded SIM slot. To
remove a SIM, press the edge of
the SIM inward and the SIM
would pop outward from the SIM
slot.
6. Type-C Port
Use this port to connect the
USB-C cable to a wall adapter
for external power.
6. Ethernet Port (RJ45)
Insert an ethernet cable to this
port and plug the other end into
your computer for internet
access.
8. Antenna Connector
Install an optional antenna (may
sold separately) to increase
signal strength. You may have to
pull off the back rubber cover
prior to installing.
8
