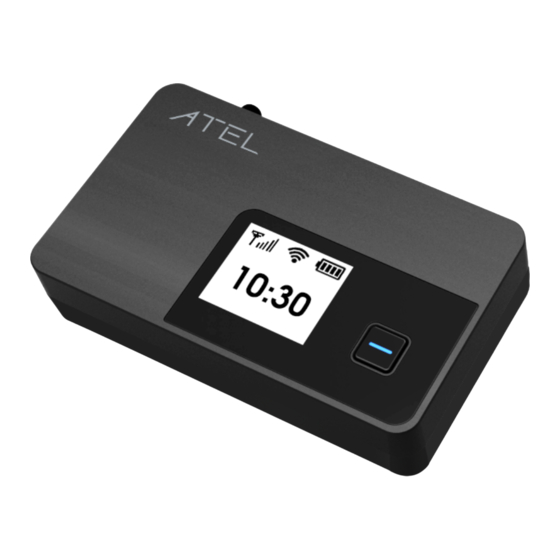

V810VD by ATEL
4G LTE Cat-4 Fixed Wireless Access
Router + POTS Replacement
Models Covered:
Model
LTE Bands
V810VD
B2/4/5/12/13/14/66/71
Quick Start Guide
Version 13.0
About your V810:
Device Display
1.
LCD Display
Displays Home, Device
Information, WiFi Login
Information (SSID and
Password), and Online
Portal Login
Information.
2.
Power Button
Power the V810 on/off
by pressing and holding
this button. You can
also short press this
button to wake up the
screen and toggle
3.
Battery Port
This battery port is used
to connect to the battery
holder (3x AA batteries)
or a Ni-MH rechargeable
battery pack (may sold
separately).
4.
Reset Button
Use a pin to push and
hold this button for 3
seconds for factory reset.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atel V810VD
Summary of Contents for Atel V810VD
- Page 1 About your V810: Quick Start Guide Device Display V810VD by ATEL LCD Display Battery Port Displays Home, Device This battery port is used Information, WiFi Login to connect to the battery 4G LTE Cat-4 Fixed Wireless Access Information (SSID and...
-
Page 2: Install Sim Card
Setting up your V810 Install SIM Card Remove the V810 back SIM Card Slot Ethernet Port (RJ45) cover. Insert your 4FF SIM Insert an ethernet cable Carefully lift the battery card into this spring- to this Port and plug the holder from the side. - Page 3 USB cable to the device USB-C port and plug the other Note: Antenna sold separately. Using optional end into a wall adapter. accessories (antenna and battery pack) by ATEL are recommended, available at ATEL website, https://www.atel-usa.com/. LCD Display Icons Overview: WARNING! Please only use the provided USB adapter for the V810.
- Page 4 Connect your Telephone to the V810 Using a Text Telephone The V810 provides 2 telephone ports (RJ11). The ports To use the V810 with TTY, you must first change the TTY use the same telephone number. mode from the default (None) to one of the following modes.
- Page 5 Open the Wi-Fi Settings of your Wi-Fi capable Changing Your WebGUI Portal Login devices. Password Select the SSID of your V810 from the available network list. You can change the WebGUI Portal login password by When prompted, enter the password of your V810. going to Settings >...
- Page 6 Voice/Emergency calls: You can manage the device using the ATEL Remote ATEL cannot guarantee the voice or E911 calls availability. Making a successful call depends Management Platform ATRACS, by visiting http://aags.a- on your hardware (telephone) availability, physical location, wireless signal strength, and/or network services.
