Melec GDB-5KS20 Instruction Manual page 25

６．Connection

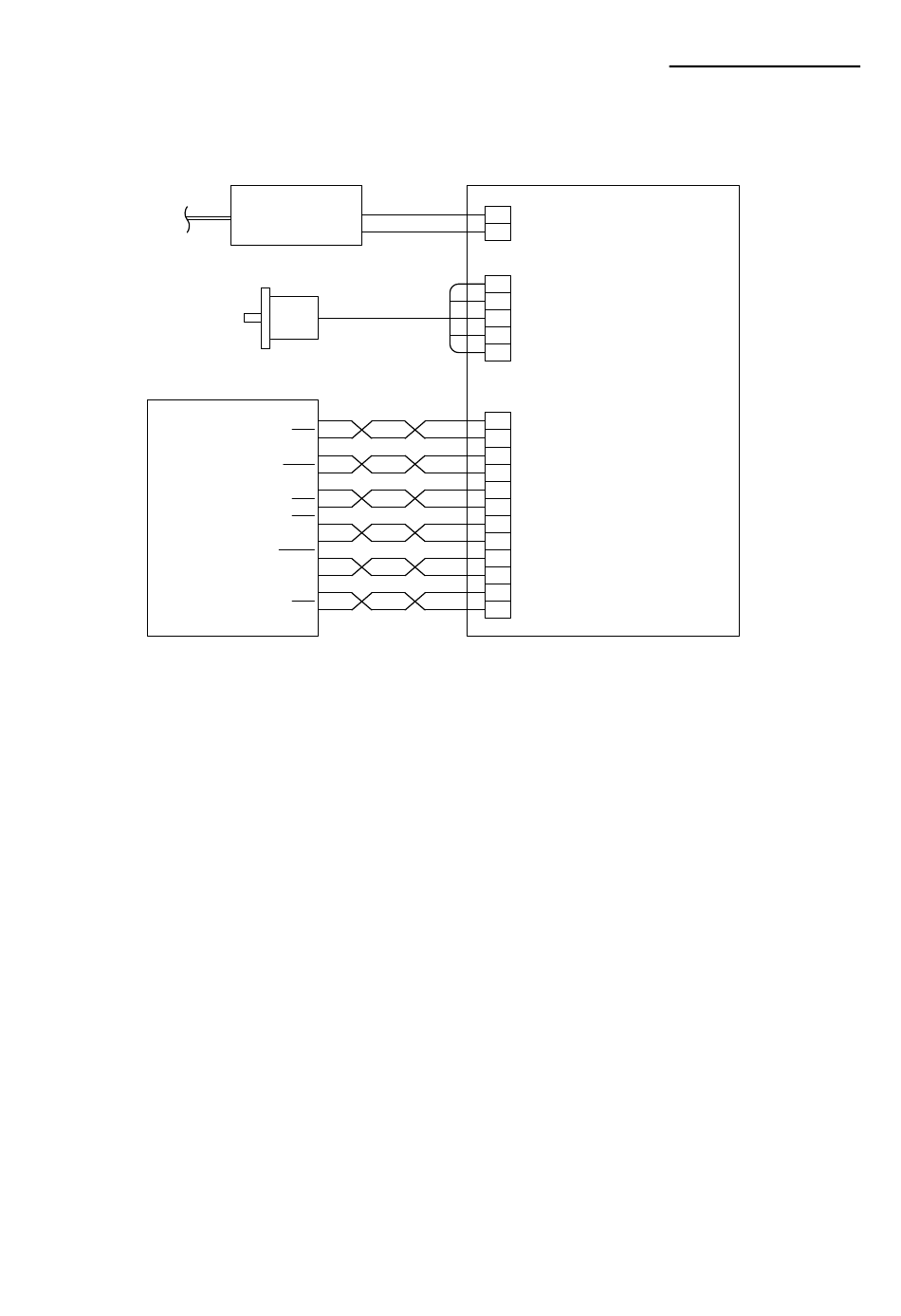

６－１．Overview of Connection Configuration
User's
Controller
●Connect only one motor to one driver.
●Use twisted pair wire for the CW/CCW input signal line.
●Provide shielding for the signal line where considerable noise is generated.
●Use the wire material of the characteristic that is difficult to burn.
●For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.
DC Power Supply
DC+24V
0V(GND)
MOTOR
Twisted pair wire
CWP
CWP
CCWP
CCWP
+COM
M.F
P.O
R.GND
O.H.A
R.GND
+COM
C.S
J2
DRIVER
1 DC+
2 DC-
J3
1
2
3
4
5
J1
1 CW+
2 CW-
3 CCW+
4 CCW-
5 M.F+
6 M.F-
7 P.O+
8 P.O-
9 O.H.A+
10 O.H.A-
11 C.S+
12 C.S-
-25-
GDB-5KS20
Instructions Manual
