Melec GDB-5KS20 Instruction Manual page 12

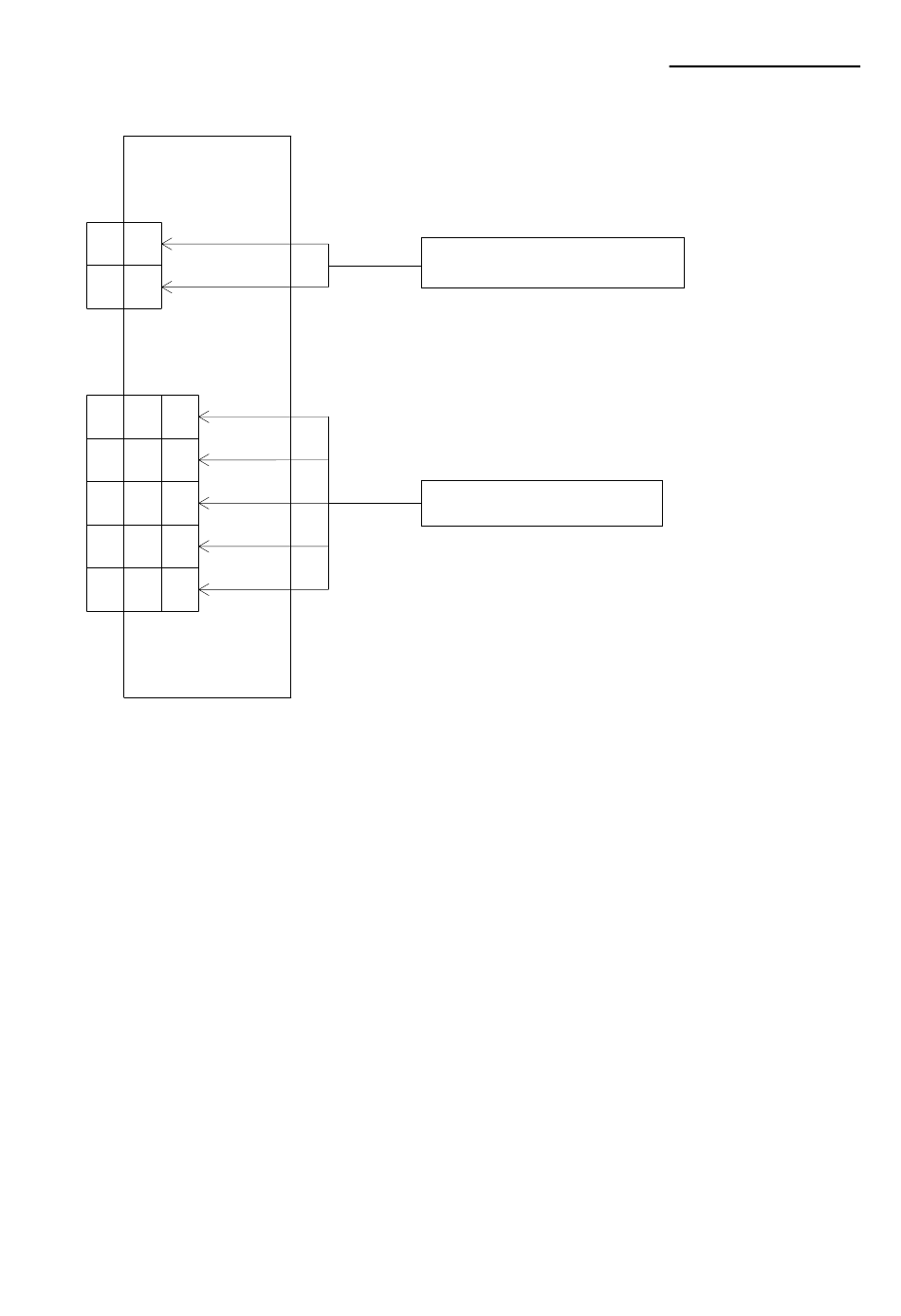

３－２．DC Input/Motor Output Connector（Ｊ２，Ｊ３）
DRIVER
J2
DC+24V
1 DC+
0V
2 DC-
J3
VIO
1 BLK
BLU
RED
2 GRN
GRY
BLK
3 ORN
YLW
WHT
4 RED
ORN
GRN
5 BLU
BRN
３－３．POWER LED
POWER LED(GREEN) comes on upon inputting power.
３－４．O.H.A LED
O.H.A LED（RED）comes on when internal temperature
of the driver has reached approx. 70℃ or more.
DC input terminal
● Power input terminal.
DC power supply is connected.
Motor output terminal
● Output current to drive the motor.
-12-
GDB-5KS20
Instructions Manual
