Melec GDB-5KS20 Instruction Manual page 13

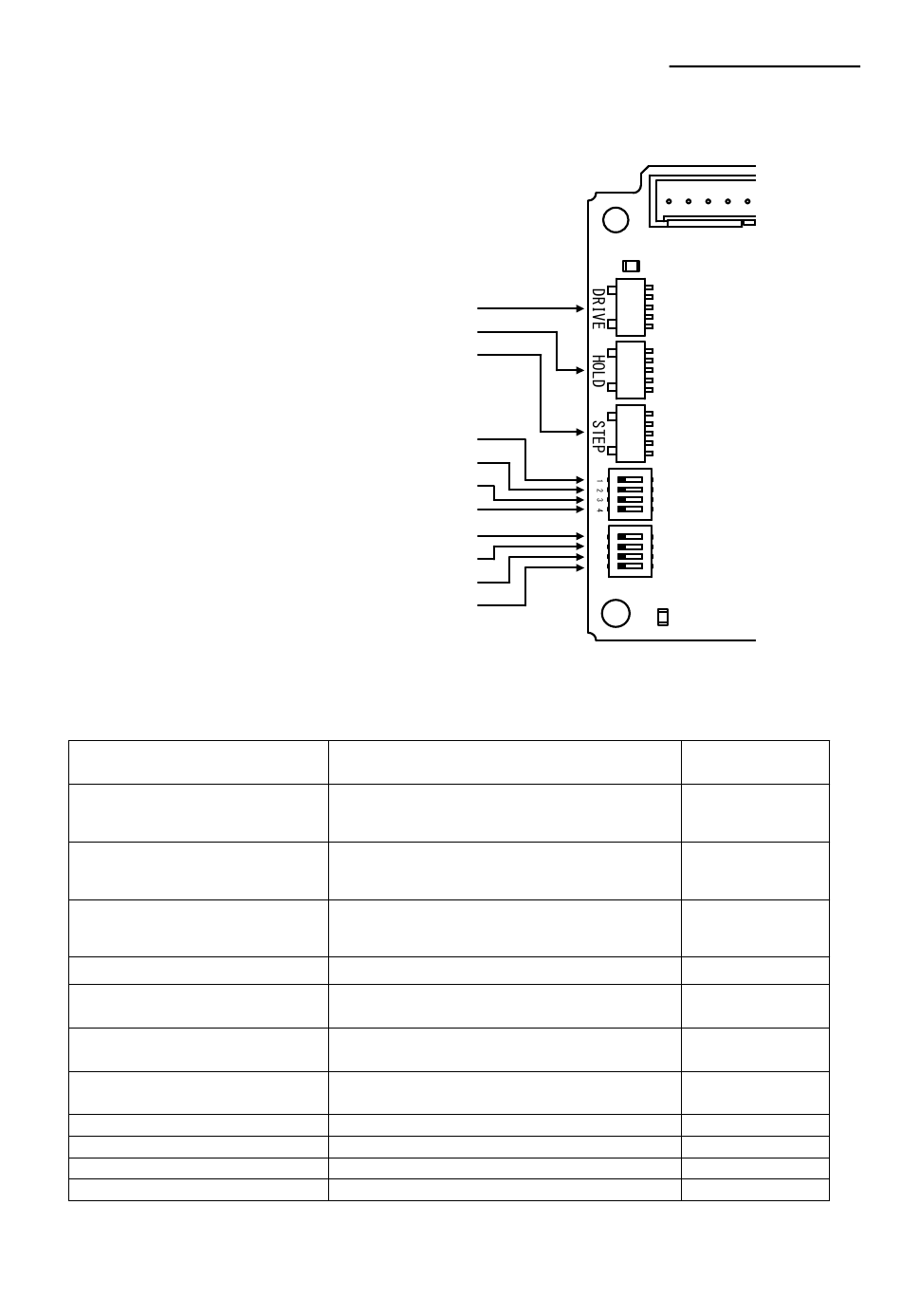

３－５．Operating Section
DRIVE CURRENT SELECT switch (DRIVE I.SEL)
HOLD CURRENT SELECT switch (HOLD I.SEL)
STEP ANGLE SELECT switch (STEP SEL)
HOLD SWITCHING TIME SELECT switch (DHT SEL)
PULSE INPUT TYPE SELECT switch (SPI SEL)
ROTATE MODE SELECT switch 1 (RM SEL)
ROTATE MODE SELECT switch 2 (RM SEL)
ROTATE MODE SELECT switch 3 (RM SEL)
ROTATE MODE SELECT switch 4 (RM SEL)
Name of Operating Section
DRIVE CURRENT SELECT switch
HOLD CURRENT SELECT switch
STEP ANGLE SELECT switch
STEP TABLE switch
1
HOLD SWITCHING TIME SELECT
2
switch
PULSE INPUT TYPE SELECT
3
switch
4 MOTOR SELECT switch
1 ROTATE MODE SELECT switch 1
2 ROTATE MODE SELECT switch 2
3 ROTATE MODE SELECT switch 3
4 ROTATE MODE SELECT switch 4
STEP TABLE switch (S.T SEL)
MOTOR SELECT switch
Select DRIVE CURRENT.
Select HOLD CURRENT.
Select a step angle.
Select STEP TABLE.
DRIVE/HOLD CURRENT automatic switching time
is selected.
Select a pulse input type.
Use it with OFF.
Select ROTATE MODE.
Select ROTATE MODE.
Select ROTATE MODE.
Select ROTATE MODE.
-13-
R1
R2
R3
R4
(O FF ⇔O N)
Function
GDB-5KS20
Instructions Manual
Factory Setting
〔No.E〕
〔No.8〕
〔No.1〕
1:〔OFF(S.T1)〕
2:〔OFF(150ms)〕
3:〔OFF(2P)〕
4:〔OFF〕
R1:〔OFF〕
R2:〔OFF〕
R3:〔OFF〕
R4:〔OFF〕
