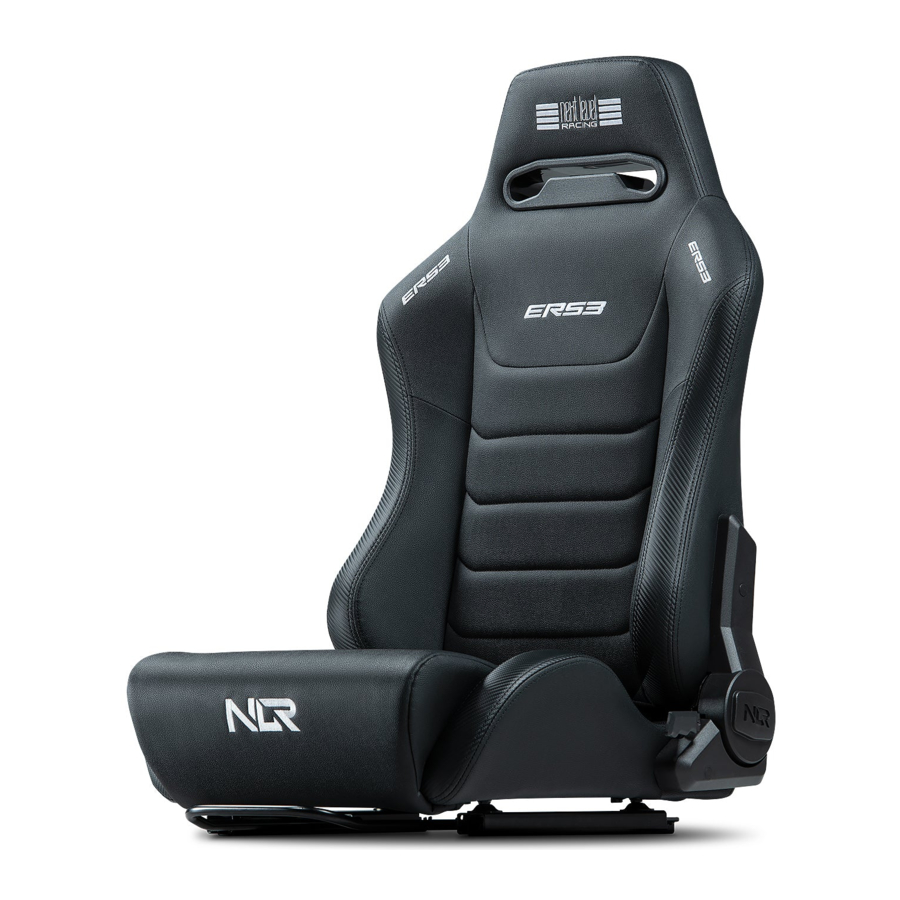

Next Level Racing ELITE Series Manual

PRE-RACE CHECKS

• Please do not use power tools for assembly as over tightening can damage parts.
• If you require further support, consult the installation video or contact us at support@nextlevelracing.com
• Do not force parts together.
• Avoid cross threading bolts.
• Beware of sharp edges.
• Do not use the seating if any part is broken, torn, or missing.
• Make sure all assembly fittings are securely tightened and check them regularly for safety and stability.
• Seats are designed for simulators and esports, not for road use or in vehicle.

If you require any support with your product please contact our friendly team at: support@nextlevelracing.com

CHOKING HAZARD - Small parts not for children under 3 years or any individuals who have a tendency to place inedible objects in their mouths.

bit.ly/nlrbuild

IN THE BOX

*NOT TO SCALE
NOTE: Some Items Come with Rust Resistant Coating

CHOOSE YOUR SEAT SETUP

NLR ELITE SEAT SERIES ASSEMBLY

NLR ELITE COCKPIT SERIES ASSEMBLY

NLR ELITE COCKPIT SERIES ASSEMBLY
FOR ANGLE & HEIGHT ADJUSTMENT
(NOT COMPATIBLE GT ELITE LITE)

NLR GTTRACK ASSEMBLY

NLR F-GT ASSEMBLY
(ONLY COMPATIBLE WITH EXISTING F-GT SEAT SLIDERS)

INSTRUCTIONS

1.
   Make sure both Seat Recliner Arms are set to the same angle before assembling the seat. If an adjustment is required use a cloth to protect your hand while adjusting. Remove warning labels once adjustment has been made.
   PARTS:
   1 x Seat Backrest
   1 x Seat Bottom

   4 x M8 25mm Bolts
   4 x M8 Washers


1. Align the threaded inserts on the Seat Backrest with the mounting holes on the Seat Recliners.

2. Bolt through and secure with the M8 Bolts and Washers.


4. Lift both Seat Recliner Levers to change the angle of the Seat Backrest. Release the levers adjusting the backrest to lock in place.
   PARTS:
   NIL

5. Uninstall the M8 Bolts and Washers securing the Seat Brackets to the 4040 Extrusions.
   PARTS:
   NIL

6. Remove the Seat Brackets.
   PARTS:
   NIL

7. Lift the Seat Slider Lever and slide the Seat Rails all the way back to access the rear mounting slots on the Seat Slider Rail.
   PARTS:
   NIL


9. PARTS:
   2 x M8 16mm Low Profile Bolts

   2 x M8 Spring Washers
   Note: Use Spring Washers with M8 Low Profile Bolts when installing Seat to the F-GT Elite Cockpit.


1. Lift the Seat Slider Lever up and slide the Seat all the way back to access the front mounting holes. Align the Seat Slider front mounting holes with the T-Nuts in the front 4040 Extrusions.

2. Bolt through and secure with the M8 Low Profile Bolts.


10. Your installation is complete on the Elite Series Cockpit.
    PARTS:
    NIL

11. Uninstall the Bolts securing the Seat Brackets to the 4040 Extrusions.
    PARTS: NIL

12. Remove the Seat Brackets.
    PARTS: NIL

13. Uninstall the Ratchet Handles securing the 4040 Extrusion Assemblies to the Base Members.
    PARTS:
    NIL

14. Remove the 4040 Extrusion Assemblies.
    PARTS:
    NIL

15. PARTS: NIL

1. Uninstall the Countersunk Bolts securing the End Plates to the 4040 Extrusions and remove the End Plates.
   NOTE: Leave the 4040 Extrusions aside for future steps.



1. Lift the Seat Slider Lever and slide the Seat Rails all the way back to access the rear mounting slots on the Seat Slider.

2. Align the Seat Slider rear mounting slots with the T-Nuts in the rear 4040 Extrusion that was uninstalled in Step 14. Secure it to the Seat Sliders using M8 Low Profile Bolts.


22. PARTS:
    1 x Front 4040 Extrusion

    2 x M8 16mm Low Profile Bolts

    2 x M8 Spring Washers

    Note: Use Spring Washers with M8 Low Profile Bolts when installing Seat to the F-GT Elite Cockpit.

23. Align the threaded holes on the end of the 4040 Extrusions with the mounting holes and slots on the Seat Brackets.
    PARTS: NIL

24. Bolt through and secure with Ratchet Handles previously uninstalled in Step 13.
    PARTS:
    4 x Ratchet Handles


25. Adjust the Seat to the desired distance from pedals. Secure the Bolts connecting the Seat Brackets to the Base Members.
    PARTS: NIL

26. For angle and height adjustment use the variety of mounting holes and slots provided on the Seat Brackets.
    PARTS: NIL

27. Your installation is complete on the Elite Series cockpit.
    PARTS: NIL

28. Lift the Seat Slider Lever and slide the GTTrack Seat all the way back to access the front Bolts.
    PARTS: NIL

29. Uninstall the M8 Low Profile Bolts securing the front Seat Slider Rails to the frame.
    PARTS: NIL

30. Lift the Seat Slider Lever and slide the GTTrack Seat all the way forward to access the rear Bolts.
    PARTS: NIL

31. Uninstall the M8 Low Profile Bolts securing the rear Seat Slider Rails to the frame.
    PARTS: NIL

32. Remove the GTTrack Seat Assembly.
    PARTS: NIL

33. PARTS: NIL

1. Lift the Seat Slider Lever and slide the Seat Rails all the way back to access the rear mounting slots on the Seat Slider Rails.

2. Identify the Seat Slider Rail mounting holes and slots marked by the arrows.


1. Lift the Seat Slider Lever and slide the Seat all the way back to access the rear Bolts.

2. Uninstall the rear M8 Bolts securing the Seat Rails to the Seat.


40. PARTS: NIL
    1. Lift up the Seat Slider Lever and slide the Seat all the way forward to access the front Bolts.

    2. Uninstall the front M8 Bolts securing the Seat Rails to the Seat and remove the Seat from the frame.


41. PARTS: NIL

1. Lift the Seat Slider Lever and slide the Seat Rails all the way back to access the front mounting Bolts on Seat.

2. Uninstall the Bolts securing the Seat Sliders to the Seat.


45. Your installation on the F-GT is complete.
    PARTS: NIL
