Installation and
Con guration

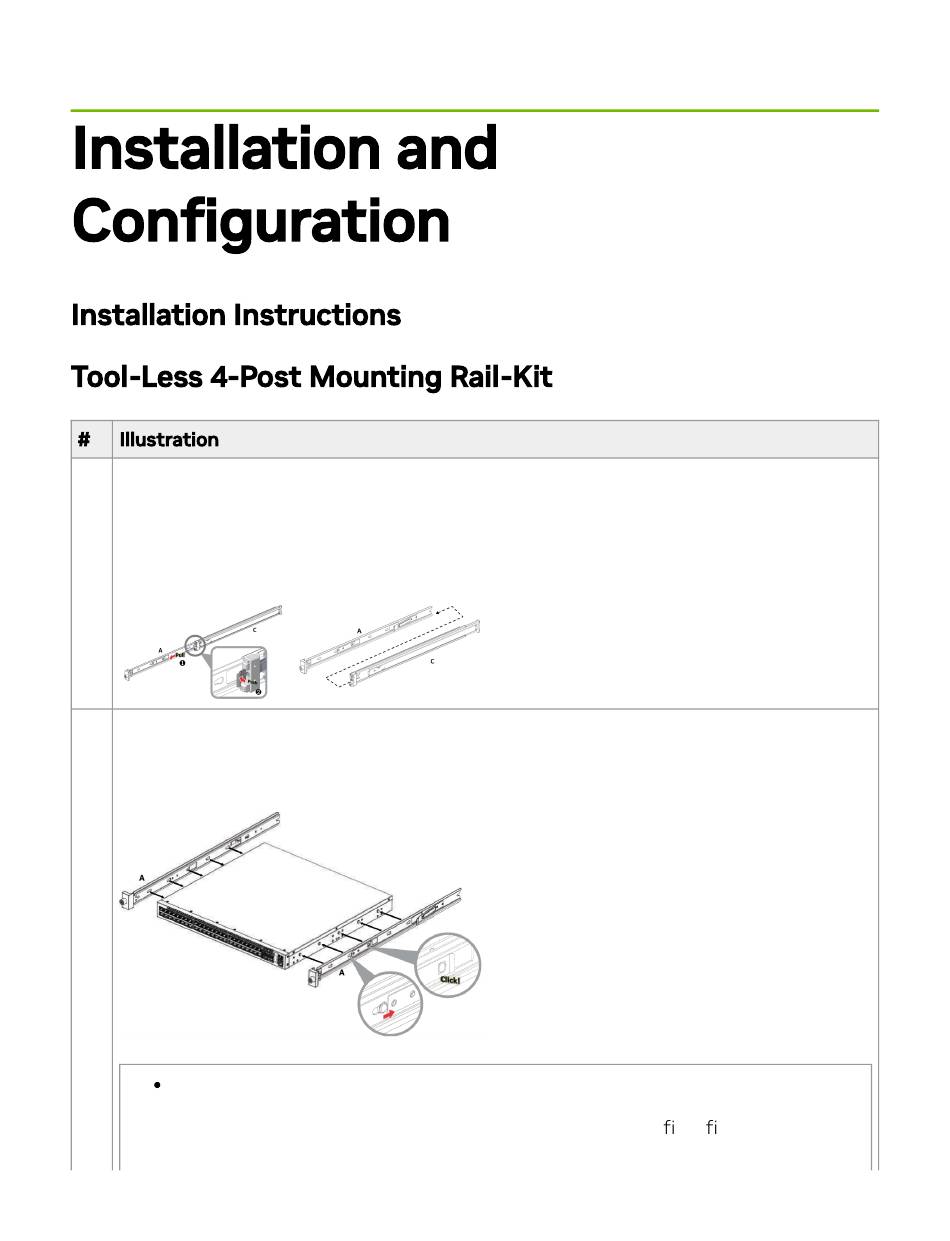

Installation Instructions
Tool-Less 4-Post Mounting Rail-Kit
# Illustration
Extract the inner rail (A):
1. Extract the inner rail (Part A) from the other rails.
2. Press the spring Latch, and pull the inner rail out, as shown in the following
illustration:
1.
2. Mount the inner rails (A) onto the chassis:
Attach the switch to the left and right inner rails (A), and secure the assembly by
pushing the chassis' pins through the slider key holes, until a click is heard and
locking occurs.
Standard Installation:
The inner rails should be assembled to the switch using the rst ve holes (from
its front side).
