Kistler 9819A Series Instruction Manual

Press force sensor, retrofitset
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F
F
z
z
Instruction
Manual

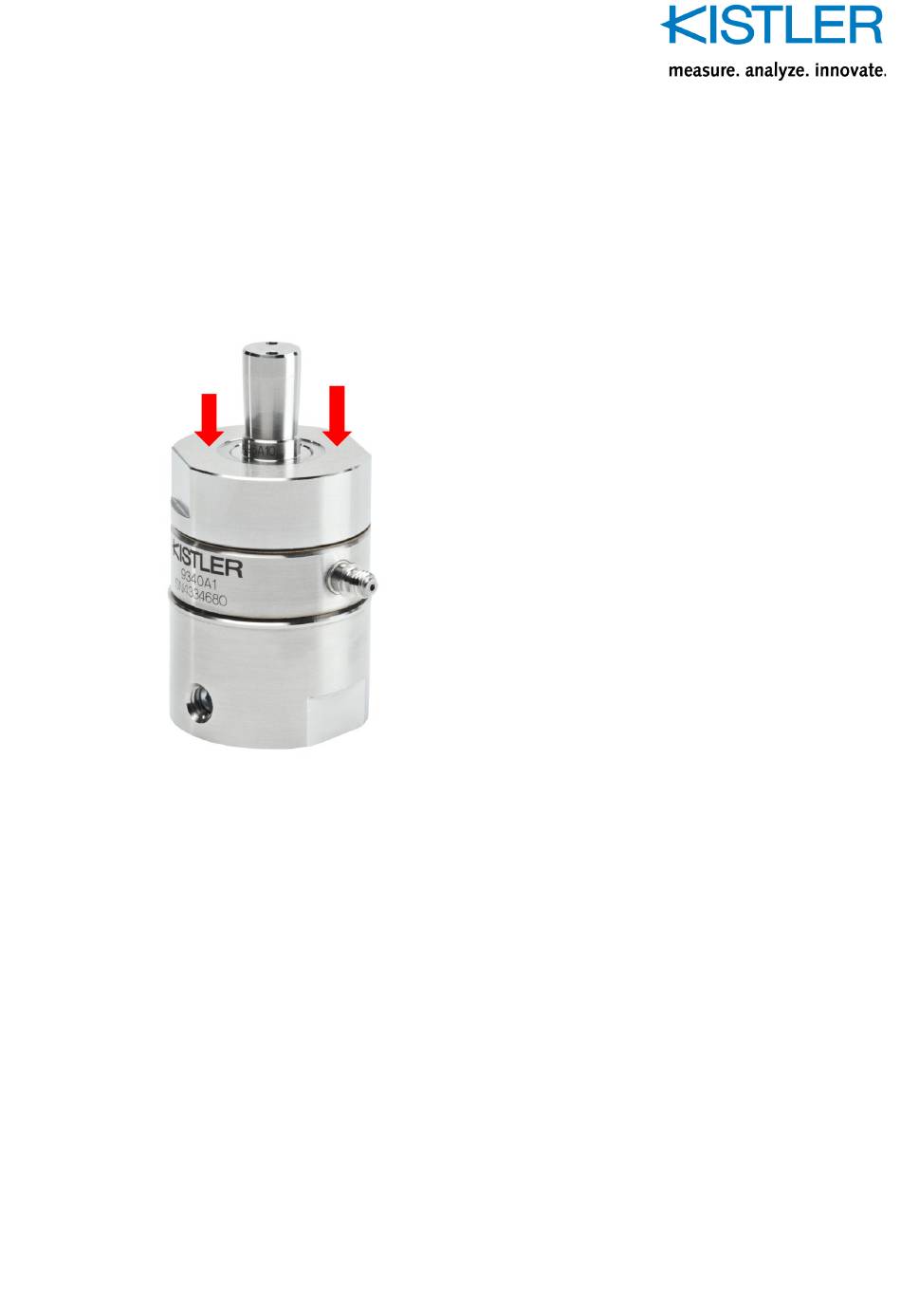

Press Force Sensor
Type 9340A1
Retrofitset
Type 9819A...
9340A1_002-670e-07.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9819A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kistler 9819A Series

Summary of Contents for Kistler 9819A Series

  • Page 1 Instruction Manual Press Force Sensor Type 9340A1 Retrofitset Type 9819A… 9340A1_002-670e-07.24...
