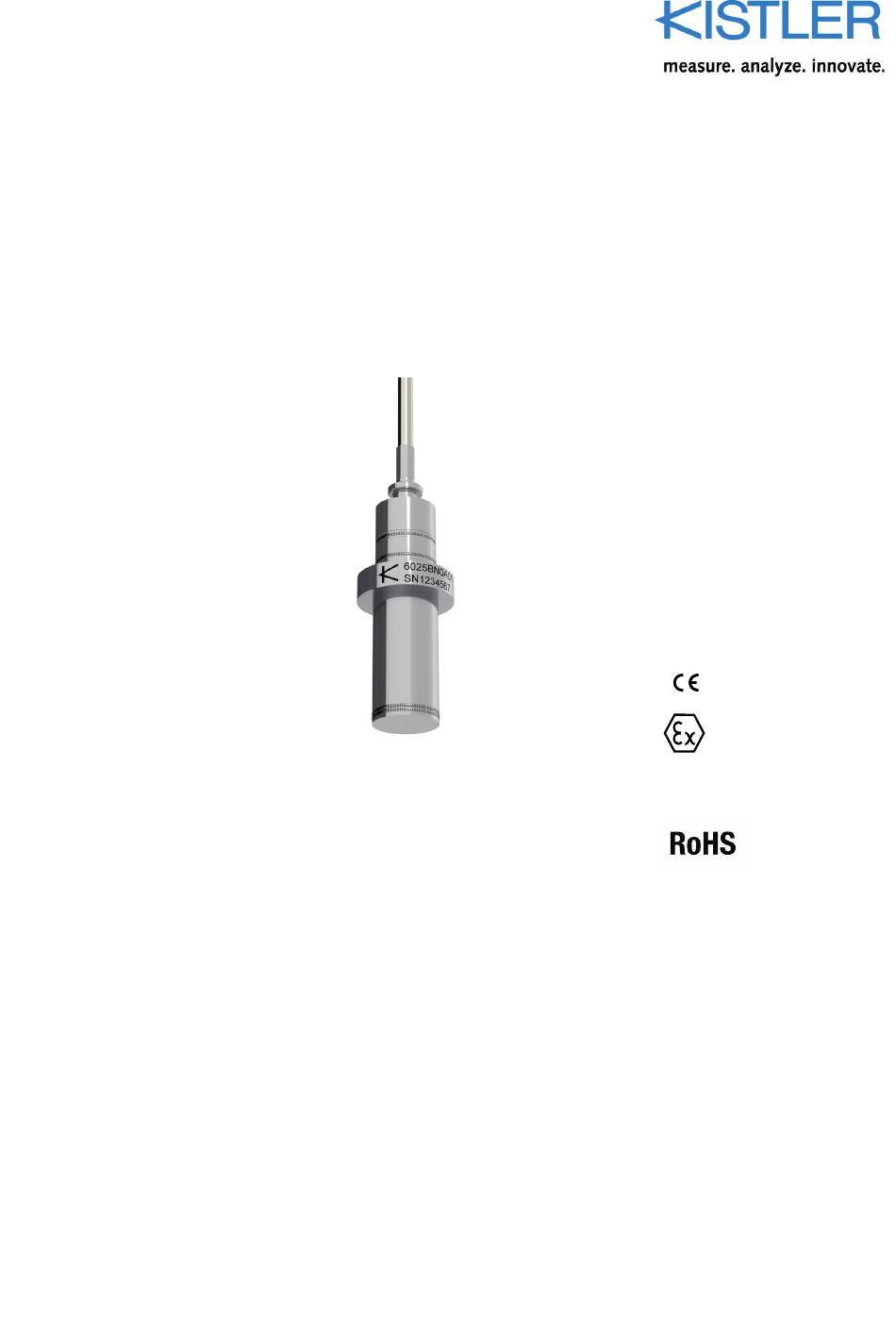

Instruction
manual
High temperature
pressure sensor
Type 6025B...
Standard version
(non-Ex-version)
and explosion-proof
version (Ex-ia, Ex-nA)
IECEx
6025B_012-024e-07.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6021B Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kistler 6021B Series

  • Page 1 Instruction manual High temperature pressure sensor Type 6025B... Standard version (non-Ex-version) and explosion-proof version (Ex-ia, Ex-nA) IECEx 6025B_012-024e-07.22...
  • Page 3 Information in this document is subject to change without notice. Kistler reserves the right to change or improve its products and make changes in the content without obligation to notify any person or organization of such changes or improvements.
  • Page 4: Table Of Contents

    Content Content Introduction ..........................3 Important information ......................4 Protection and standards ....................4 Precautions ........................5 Disposal of electronic equipment ..................5 Personal safety warnings....................5 Pressure sensor ........................7 Technical data ......................... 7 Ordering key ........................7 Operation ..........................8 Operation in non-hazardous areas ...................
  • Page 5: Introduction

    Please read through this manual thoroughly to enable you to fully exploit the various features of your product. To the extent permitted by law Kistler accepts no liability if this instruction manual is not followed or products other than those listed under Accessories are used.
  • Page 6: Important Information

    To the extent permitted by law Kistler accepts no liability if this instruction manual is not followed or products other than those listed under accessories are used.
  • Page 7: Precautions

    For disposal at end of life, please return this product to the nearest authorized electronic waste disposal service or contact your Kistler sales office for disposal instructions. Personal safety warnings Hazardous environment. Read and understand manual before operating! 6025B_012-024e-07.22...
  • Page 8 High temperature pressure sensor Type 6025B... WARNING: HAZARDOUS ENVIRONMENT Risk of explosive atmosphere. Adapters, isolation valves, or sealing rings that are not compatible with process gasses will corrode and fail. This failure may result in gas leaks, fire, explosion, or projectiles. Prevent corrosion and failure by verifying that all components are compatible as described in the installation procedures.
  • Page 9: Pressure Sensor

    Pressure sensor 3. Pressure sensor Basic execution Sensor Type 6025B… is a 2-wire, internally ground isolated differential piezoelectric pressure sensor. The sensor is equipped with an integral mineral insulated hardline cable and is available with different cable terminations. Executions for operation in hazardous areas (Ex-versions) All sensors of the 6025BE...
  • Page 10: Operation

    This requires a differential charge amplifier. Depending on the required application, Kistler recommends the differential charge amplifier Type 5181, 5183 (Ex ia) or 5185 (Ex nA). Measuring...
  • Page 11: Marking

    Operation Recommended measuring chain Sensor Type 6025B… Fig. 1: Recommended measuring chain for operation in non-hazardous areas 4.1.4 Marking The standard execution, ‚non Ex-Version’ is marked as follows: Kistler Instrumente AG Winterthur Switzerland Sensor Type: 6025B… … 6025B_012-024e-07.22 Page 9...
  • Page 12: Operation In Hazardous Areas

    High temperature pressure sensor Type 6025B... Operation in hazardous areas 4.2.1 Instructions for operation in hazardous areas In addition to the instructions for proper operation in Section 4.1.1 the following instructions must be followed for installation and operation in potentially explosive atmospheres: The sensor can be used in intrinsically safe ...
  • Page 13: Sensor Executions

    Type 6025BE… (certified ‚Ex-nA‘ and ‚Ex-ia‘) must be used. 4.2.3 Marking on sensor Minimal marking for "Ex-nA" and "Ex-ia" Due to lack of space the minimal Ex marking is engraved on the sensor. Kistler Type … SN … II 1G II 3G Ex ia IIC T6...T710°C Ga Ex nA IIC T6...T710°C Gc...
  • Page 14: Intrinsically Safe Equipment (Ex-Ia)

    High temperature pressure sensor Type 6025B... 4.2.6 Intrinsically safe equipment (Ex-ia) 4.2.6.1 Intrinsically safe measuring chain, ground isolated (sensor version Type 6025BE…) The sensor can be used in intrinsically safe circuits of the zones 0, 1 and 2. For operation in hazardous areas, the sensor must be operated with an Ex-certified differential charge amplifier and a corresponding Ex-certified barrier.
  • Page 15: Installation, Service & Maintenance

    Installation, service & maintenance 5. Installation, service & maintenance The installation bore as well as the proper installation of the sensor are essential to guarantee the specifications of the sensor. 5.1 Mounting bore Fig. 4: Direct mounting 5.2 Mounting/removal For the mounting and removal of the sensor generally accepted engineering practice...
  • Page 16 High temperature pressure sensor Type 6025B... High temperature screw paste Type 1059 must be applied to the mounting screw. Fig. 5: Blow up drawing for direct installation (Illustration for the Lemo connector version) Fig. 6: Application of torque Page 14 6025B_012-024e-07.22...
  • Page 17: Mounting Screw With Removal Tool

    Installation, service & maintenance Fig. 7: Application of torque in recessed installation situation 5.2.2 Mounting screw with removal tool The removal tool Type 6419A25B which facilitates removal of the sensor is available as an option. The removal tool can only be applied for the Lemo connector and the open leads sensor version.
  • Page 18 High temperature pressure sensor Type 6025B... Fig. 9: Torquing of the removal tool pre-assembly Page 16 6025B_012-024e-07.22...
  • Page 19: Cable Handling

     The minimal bending radius is not smaller than 16 mm  Be sure that the cable is not bent more than 10 times In case of a damaged hardline cable the sensor must be returned to Kistler. Fig. 10: Sensor with integral hardline cable 5.3.2 Softline cable In case of mechanical damage or cable failure the cable can be replaced and operation continued.
  • Page 20: Hardline Cable Fixation

    High temperature pressure sensor Type 6025B... 5.3.3 Hardline cable fixation The signal from the sensor to the differential charge amplifier is in form of a charge. The hardline cable and softline cable should therefore be fastened in such a way as to minimize cable vibration and thus minimize any triboelectric effects.
  • Page 21: Service And Maintenance

    The recalibration interval depends on the conditions of use and is the responsibility of the user. Kistler will gladly advise you. For gas turbines it is recommended to recalibrate the sensor during each revision of the gas turbine.
  • Page 22: Declaration Of Conformity

    High temperature pressure sensor Type 6025B... 6. Declaration of conformity Page 20 6025B_012-024e-07.22...
