Extron electronics UCS SW 313 Setup Manual page 6

Input and output signal and HDCP status LEDs (see
E
• SIGNAL LEDs — Light when active video content is detected on the corresponding input or the output.
•
HDCP LEDs — Light when the corresponding input or the output signal is HDCP encrypted.
NOTES:
• HDCP is authenticated on each input regardless of the currently selected source.
• If the source device connected to the selected input is HDCP encrypted (requires HDCP authentication), the
corresponding signal LED may not light unless HDCP has been authenticated.
USB status LEDs — These stacked green LEDs light as follows:
F
•
HOST LEDs — Light to indicate the USB host status for the corresponding input.
•
DEVICES LEDs — Light to indicate the status for the corresponding USB device port.
USB-C power LED — Lights to indicate switcher power delivery to the connected USB‑C source.
G
USB-C CONFIG port — Connect the computer to this USB‑C port for product configuration using Extron SIS commands or
H
PCS.
Application Example

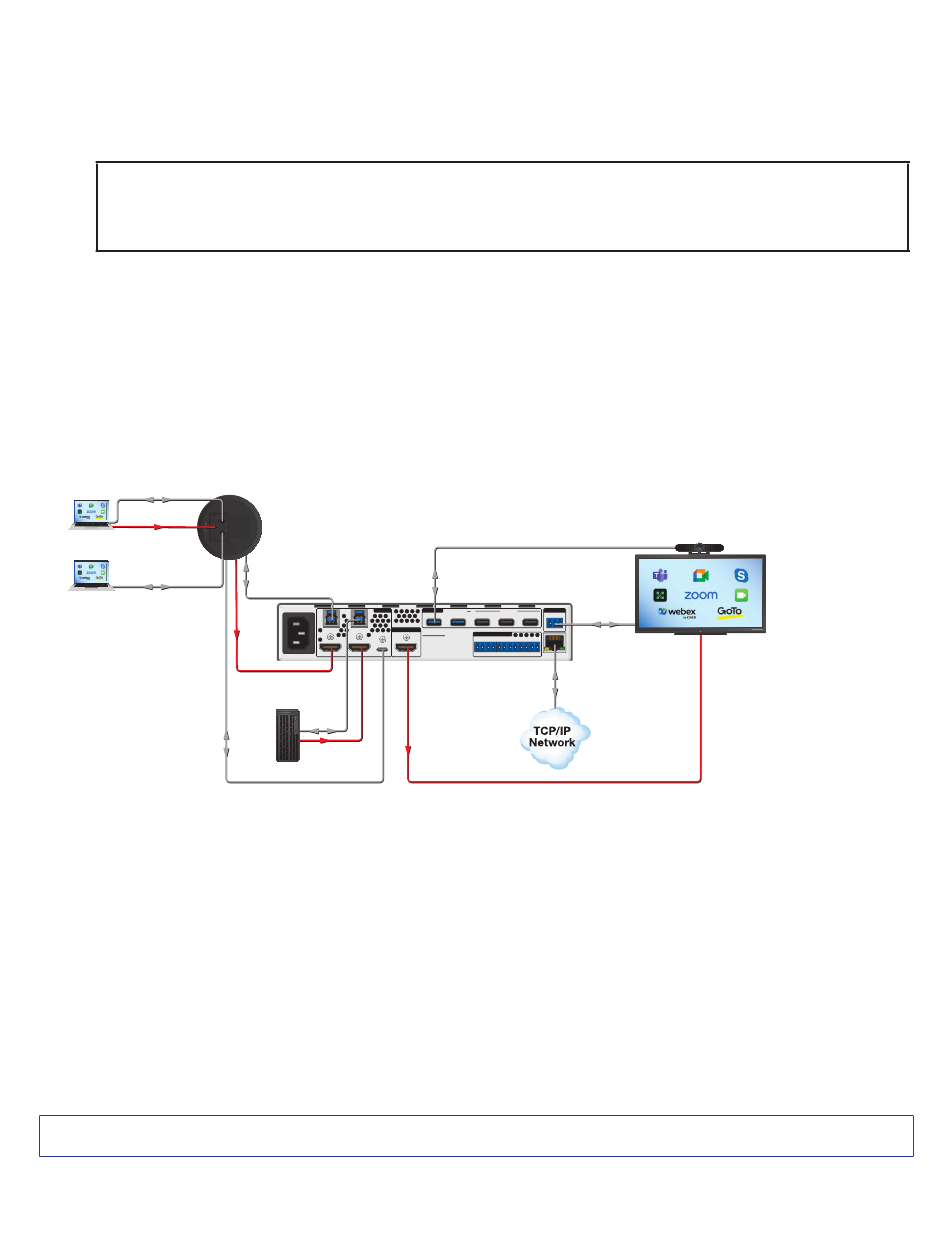

Figure 4 shows an example of how the UCS SW 313 can be connected.
USB
HDMI
Laptop
Laptop USB-C
(Data/Power/Video)
USB-C
(Data/Power/Video)
Figure 4. Application Example for UCS SW 313
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
© 2025 Extron — All rights reserved.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
6
Extron
Cable Cubby 100
Cable Access
Enclosure
USB
~
100-240V 1.1A MAX
INPUTS
HDMI HOST HOST OUTPUT
1 2 3
60W
HDMI HDMI USB-C HDMI/CEC
50-60Hz
USB
HDMI
HDMI
PC
on the Extron website.
www.extron.com
figure 3
on page 5) — These stacked green LEDs light as follows:
USB
DEVICES DISPLAY
USB 10Gbps USB 2.0
1 2 3 4 5 RS-232
Tx Rx G
RS-232
UCS SW 313
CONTACT/TALLY
1 2 3 4 5
C T C T C T C T C T +V G
LAN
Extron
UCS SW 313 Ethernet
Collaboration
Switcher
All trademarks mentioned are the property of their respective owners.
Videobar
(Camera/Mic/Speakers)
Display
68-3836-50 Rev. A
04 25
