UCS SW 313 • Setup Guide (Continued)
Configuration
The following options are available to configure the UCS SW 313:
• Product Configuration Software (PCS) — Extron PCS is available at www.extron.com. Download and install the latest
version to a PC connected to the switcher either via Ethernet or the front panel USB CONFIG port (see figure 3,
instructions while PCS is running, press <F1> on the keyboard, click the ? button in PCS, or select the Help File option from
the PCS Device Tab drop‑down list to view the UCS SW 313 Help File.
• Simple Instruction Set (SIS) commands — The UCS SW 313 can be configured and controlled via SIS commands when
connected to a host computer or other device (such as a control system). Attach the host device to the rear panel LAN
connector (see figure 1,
variables, see the UCS SW 313 User Guide, available at www.extron.com.
• Internal web pages — The factory‑installed web pages can be used to view device status, perform certain configuration
functions, and set a password. To view this page in a web browser, connect the UCS to a LAN. The default IP address is
192.168.254.254. A password is required the first time the page is opened and remains in effect until changed or removed.
NOTE:
The factory configured passwords for all accounts on this device have been set to the device serial number. An
absolute system reset changes the password setting to extron. Passwords are case sensitive.
Firmware Updates
When new firmware versions become available, download the updates from the Extron website. New firmware versions can be
uploaded using PCS, the internal web page, SIS commands, and the Firmware Loader software, available at
(see the UCS SW 313 User Guide for details).
Front Panel Features
C C C
B B B
AUTO
A A A SWITCH
R
Power and Reset LED
A
Reset button
B
Auto Switch LED
C

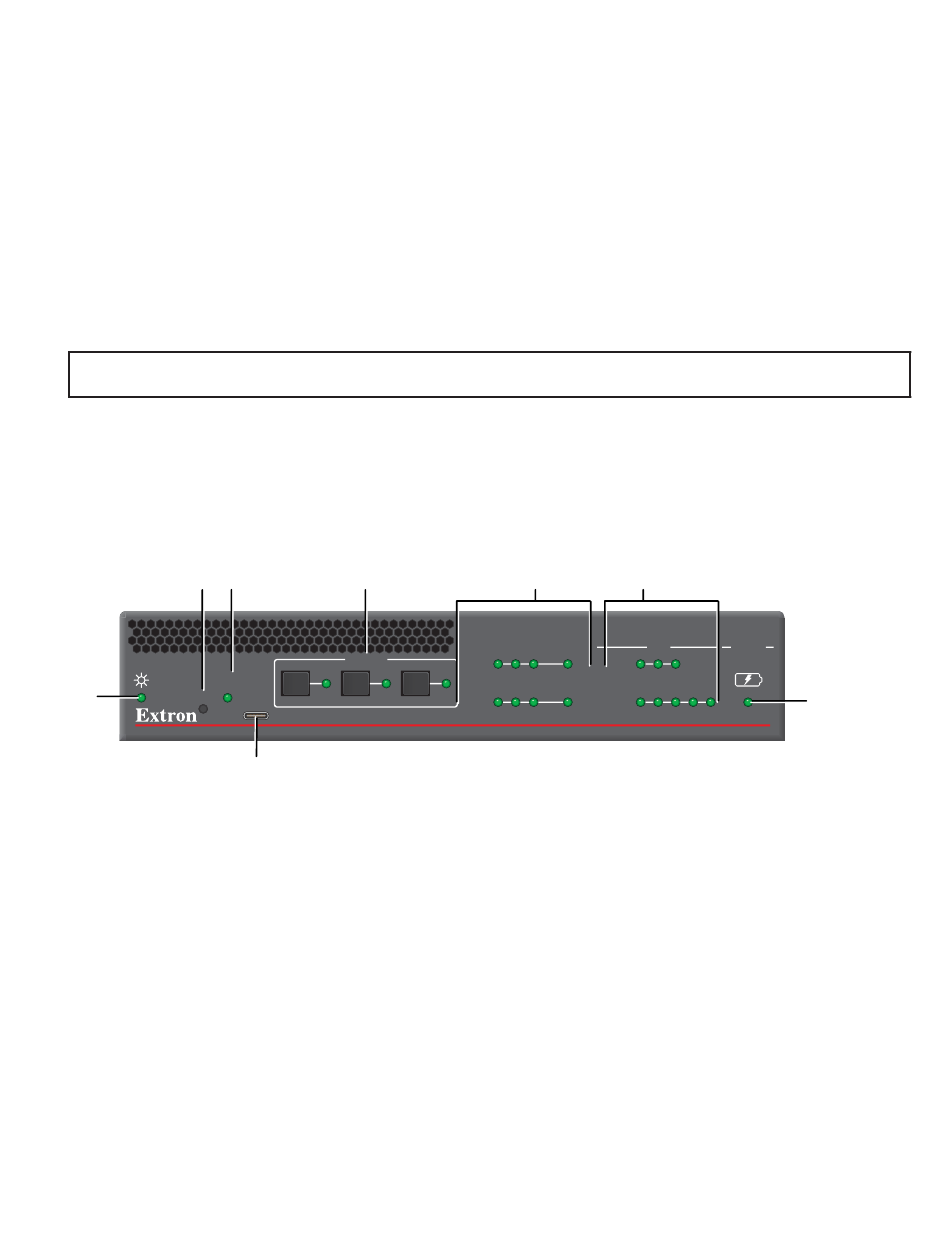

Figure 3. UCS SW 313 Front Panel
Power and reset LED — Lights when the unit has power. When the R (reset) button (see figure 3,
A
this LED blinks every 3 seconds to indicate the level of reset that is initiated if the button is released and momentarily pressed
again at that point.
Reset button — Using an Extron Tweeker (provided) or other small screwdriver or stylus, press the R button to reset the unit.
B
There are three available reset modes:
•
Press and hold the Reset button for 3 seconds to return all settings to the factory default, excluding IP settings.
•
Press and hold the Reset button for 6 seconds to return all settings to default, including IP settings.
• Press and hold the Reset button while applying power to return all settings to default, and revert the firmware to the
factory installed version.
Auto Switch LED — Lights when auto‑switching is in effect. The switcher can be configured via SIS commands or PCS to
C
automatically select the lowest to highest numbered input with an active signal.
Input buttons and LEDs — Press these buttons to select an input to switch to the output. When an input is selected, the LED
D
at the right of the input button lights. If auto‑switching is in effect, the input buttons are disabled, but the LEDs continue to light
to indicate the selected input.
on page 1), or to the front panel USB‑C CONFIG port (
G
D D D
INPUTS
1 2
CONFIG
H H H
Input buttons and LEDs
D
Input and output signal and HDCP status LEDs
E
USB status LEDs
F
E E E
INPUTS OUTPUT
SIGNAL HOST
3
1 2 3
HDCP DEVICES
). For a list of SIS commands and
A
www.extron.com
F F F
USB USB-C
1 2 3 4 5
G G G
UCS SW 313
COLLABORATION SWITCHER
USB-C power LED
G
USB-C CONFIG port
H
) is pressed and held,
B
). For full
A
