4. Connect power to the IEC power connector (see figure 1,
5. Configure the switcher using PCS (see the UCS SW 313 Help File) or SIS commands (see the UCS SW 313 User Guide) as
necessary for functions such as autoswitching, contact closure, and front panel lock mode.
6. Power on the host devices. The switcher is now ready for operation.
Rear Panel Connections
B B B
A A A
~
100-240V 1.1A MAX
HOST
1
HDMI
50-60Hz
J J J
IEC power connector
A
USB host ports
B
C HDMI output (with CEC)

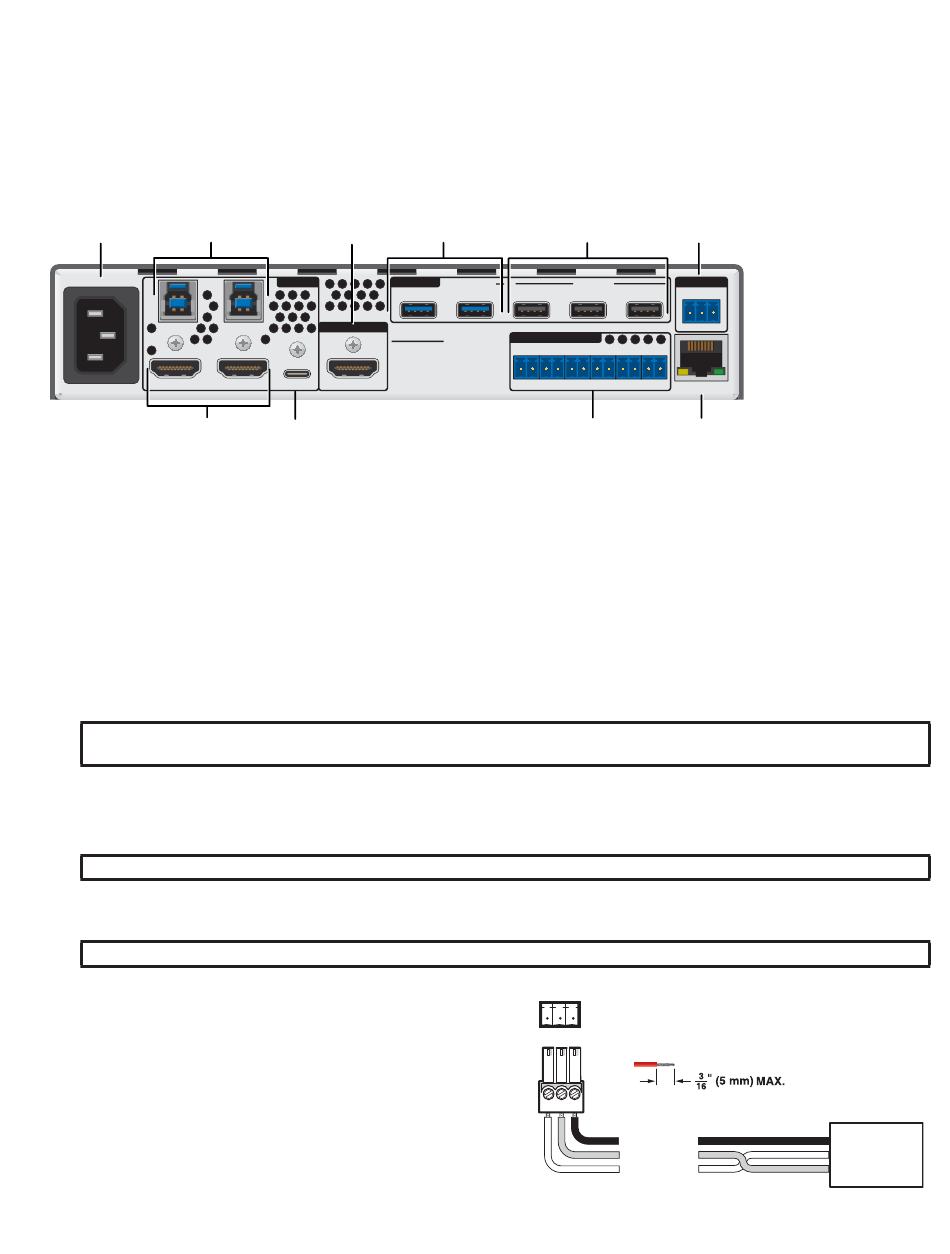

Figure 1. UCS SW 313 Rear Panel
IEC power connector — Connect a 100‑240 VAC IEC power cable to this connector to provide AC power to the switcher.
A
USB host ports — Connect PCs or other USB host devices to these female USB type B connectors for USB 3.2 input in
B
support of HDMI inputs 1 and 2 (
HDMI output (with CEC) — Connect an HDMI or DVI (with an appropriate adapter) output device to this connector for HDMI
C
video with CEC and embedded audio. The output supports resolutions up to 4096x2160 @ 60 Hz, 8‑bit, with 4:4:4 chroma
sampling.
NOTE:
Use the provided LockIt Pro Lacing Brackets to secure the HDMI connectors (see
Lacing Brackets
USB 10 Gbps device ports — Connect USB 3.2, 2.0, or 1.x devices and HIDs (peripherals such as keyboards, mice, or
D
storage drives) to these blue USB ports. USB 3.2 signals from the inputs are routed to these ports. Each port provides up to
5 V, 900 mA of power to the connected devices.
NOTE: These ports do not provide power if the connected device is receiving power from a separate power supply.
USB 2.0 device ports — Connect USB 2.0 or 1.x devices to these black USB Type A ports. USB 2.0 and 1.x signals from the
E
inputs are routed to these ports. Each port provides up to 5 V, 500 mA of power.
NOTE: These ports do not provide power if the connected device is receiving power from a separate power supply.
RS-232 Display control port — Connect a display to this
F
RS‑232 port, which can be configured via PCS to control the
display in modes 0, 1, or 2 (see the UCS SW 313 User Guide and
the UCS SW 313 Help File for more information). The image at
right shows how to wire this port.
