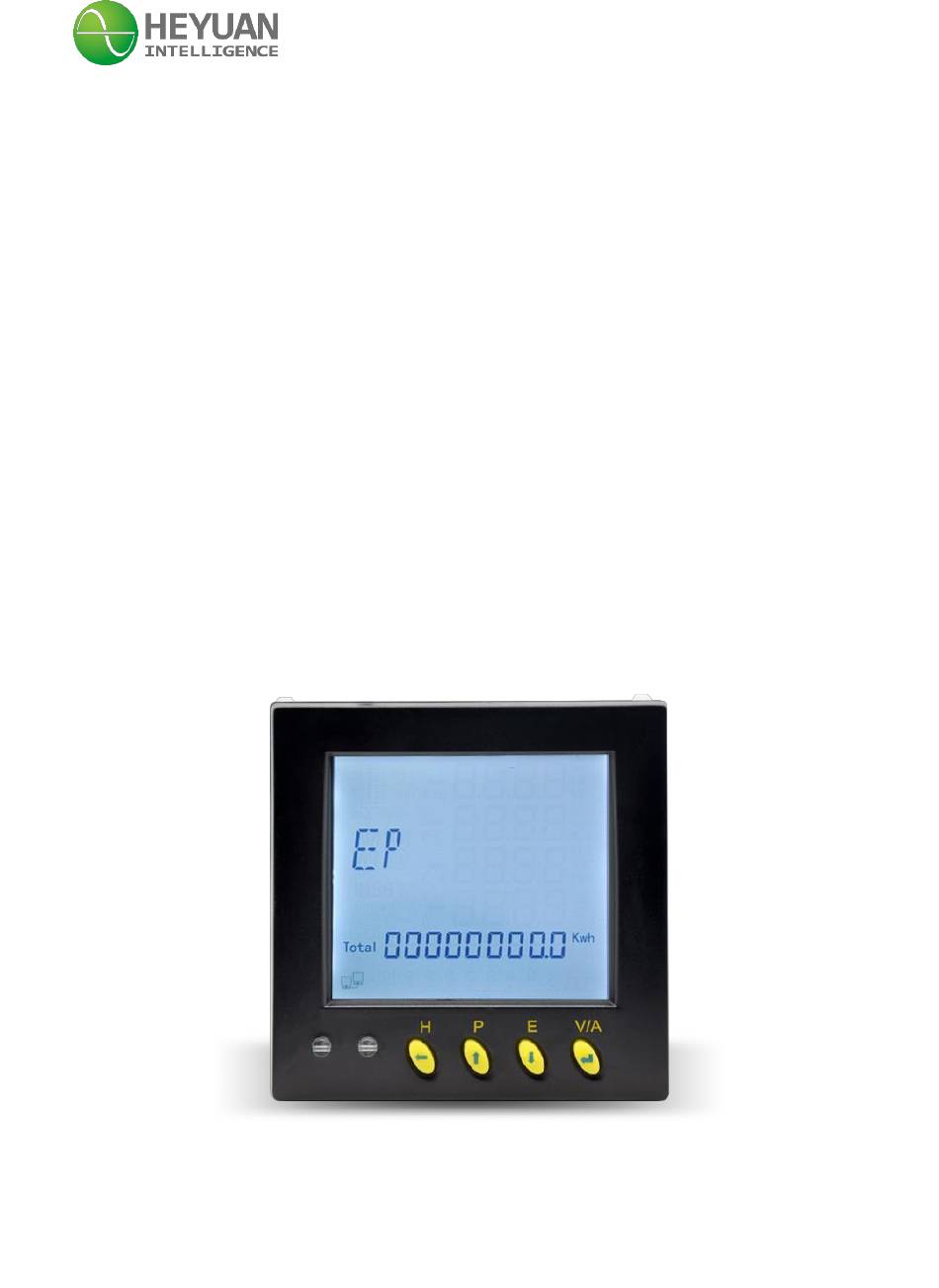

- Page 1 DZ81-MS3E5C Intelligent Energy Meter User Manual (V1.0)
- Page 2 Heyuan Intelligence Technology Co., Ltd IMPORTANT DECLARATIONS Copyright © 2018 Heyuan Intelligence Technology Co., Ltd All Rights Reserved This manual may not be reproduced, copied, transmitted or transcribed in whole or in part by any means without the expressed written permission of Heyuan. Any shall be investigated for legal responsibility in violation of copyright or other intellectual property rights of the Company.
-
Page 3: Table Of Contents
Contents Chapter 1 Meter Overview ……………………………………………………………………………...1 Chapter 2 Specifications ……………………………………………………………………………….1 2.1 Input Voltage …………………………………………………........1 2.2 Input Current ……………………………………………..........1 2.3 Frequency Measurement …………………………………………………....1 2.4 Measuring Accuracy ……………………………………...........1 2.5 Communication……………………………………...........1 2.6 Power Supply…………………………………….............1 2.7 Working Condition……………………………………..........1 2.8 Pulse Constant……………………………………...........1 Chapter 3 Dimension and Installation ………………………………………………………………2 3.1 Dimension …………………………….……………..........2 3.2 Installation Method ……………………………………………….... - Page 4 Chapter 9 Contact Us ....................11...
-
Page 5: Chapter 1 Meter Overview
Chapter 1 Meter Overview DZ81-MS3E5C is an advanced and smart energy meter. It is widely used in power distribution sites, energy management systems and intelligent monitoring systems of different industries. Measuring all parameters: three phase/line voltage, three phase current, zero-sequence voltage, zero-sequence current, voltage unbalance, current unbalance, frequency, analysis of harmonic(2~31times), active/reactive energy, multi -tariff etc. -
Page 6: Pulse Constant
Length Length Width Height DZ81-MS3E5C 3.2 Installation Method This series of products should be installed in a dry and dust free environment, and avoid exposing to excessive heat, radiation and high electrical noise source. The meters can be installed into a standard panel cutout of switch cabinet. -
Page 7: Chapter 5 Typical Wiring
Chapter 5 Typical Wiring 5.1 3-phase 4-wire Wiring Mode (3LN, 3CT) The star-like 3-Phase 4-Line wiring mode is commonly used in low-voltage electric distribution power systems. The “UL” (voltage wiring mode) on the parameter setting interface should be set as “3Ln”; “IL” (current wiring mode) should be set as “3C”. 5.2 Three-Phase Three-Line Open Delta Mode (2LL, 2CT) -
Page 8: Power Supply
EMC filter in the auxiliary power supply loop to increase resistance to interference. The wiring mode is as follows 5.4 Communication DZ81-MS3E5C adopts RS485 interface and Modbus RTU communication protocol to communicate. The terminals are 485A and 485B. Up to 32 pcs of DZ81-MS3E5C can be... -
Page 9: Energy Pulse Wiring Mode
connected on 1 communication line and communication address of each DZ81 -MS3E5C is settable. The RS485 transmission medium is shielded twisted pair, of which diameter is not less than 0.5 mm². In addition, the RS485 interface can also be used for device maintenance and upgrading. -
Page 10: Current, Voltage Display Interface
6.1 Current, Voltage Display Interface Press button “V/A”, it will cyclically display the values of phase voltage(U), line voltage (UL) and current(I) etc. 6.2 Energy Display Interface Press button “E”, it will cyclically display the values of total active energy and total reactive energy. -
Page 11: Multi-Tariff Display Interface
Press “H” and “E” simultaneously, the meter will display the 2nd~31st HC (harmonic content). The harmonic order will increase from 2nd to 31st by one each time pressing button “P”. And the harmonic order will decrease by one each time pressing button “E”. And press buttons “H”... - Page 12 Item Description Ep: Active Energy; Active; Reactive Eq: Reactive Energy; The number 00~11 represent the current month to the last Historical Period Time 11th month. Reactive Energy in Number 1~4 represent the 1st to the 4th quadrant Quadrants : Sharp Period : Peak Period Multi-tariff : Shoulder Period...
-
Page 13: Chapter 7 Parameter Setting Interface
Chapter 7 Parameter Setting Interface 7.1 System Parameter Setting Press buttons “H” and “V/A” simultaneously at any display interface of metering data, it will enter the system setting interface. At the setting mode: The button “H” is used for digital shift. Press button “H” each time to shift one digit, which will flash at the same time. -
Page 14: Bl" (Back-Light) Setting Interface
Press buttons “H” and “V/A” simultaneously, it will enter “PS” setting interface. The default password is “0000”. Press button “V/A” to confirm and enter “BL” interface. If the password is not correct, it won’t enter “BL” interface 7.3 “BL” (Back-light) Setting Interface “BL”... -
Page 15: Il" Setting Interface
“UL” interface is the voltage wiring mode setting interface. There are 3 options for the voltage wiring modes, i.e. “3Ln” referring to 3-phase 4-wire 3PT wiring mode; “2Ln” referring to 3-phase 4-wire 2PT star-like wiring mode and “2LL” referring to 3-phase 3-wire open-delta wiring mode. -
Page 16: Chapter 8 After-Sales Service
the present CT ratio, whose value ranges from 1~9999. The product of CT ratio and PT ratio is not more than 300,000. After setting, press button “V/A” to confirm and switch back to “BL” interface. After all the settings are finished, press buttons “H” and “V/A” simultaneously, it will exit the present setting interfaces.
