- Page 1 DZS100-4P Single-Phase Energy Meter User Manual Heyuan Intelligence Technology Co., Ltd...
- Page 2 IMPORTANT DECLARATIONS Copyright © 2018 Heyuan Intelligence Technology Co., Ltd All Rights Reserved This manual may not be reproduced, copied, transmitted or transcribed in whole or in part by any means without the expressed written permission of Heyuan. Any shall be investigated for legal responsibility in violation of copyright or other intellectual property rights of the Company.
- Page 3 Contents Chapter 1 Meter Overview ………………………………………………………………………….1 Chapter 2 Specification & Technical Parameters …………………………… ……………….1 2.1 Specification ……………………………………………………......1 2.2 Technical Parameters …………………………………………………………………1 Chapter 3 Dimension & Wiring …………………………………………………………………….2 3.1 Dimension …. ………………………………………………………………...………..2 3.2 Terminals & Wiring …………………………………………………………………..2 Chapter 4 Communication Interface ……………………………………………………………..3 Chapter 5 Meter Display &...

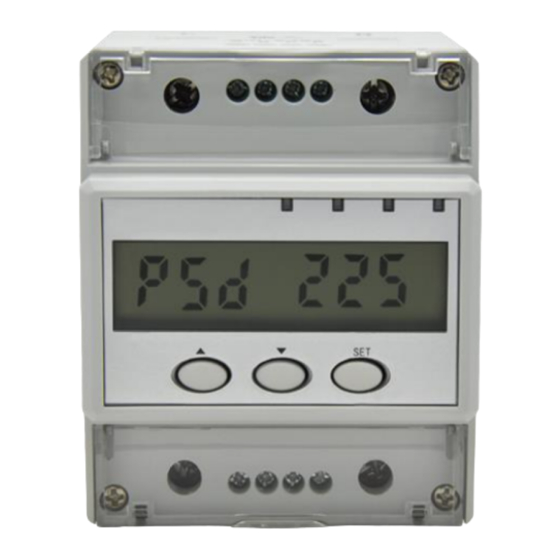

- Page 4 Chapter 1 Meter Overview DZS100-4P is an advanced, smart single-phase DIN rail energy meter. It meters electric parameters of single-phase current, voltage, power, energy, frequency, power factor etc. with high accuracy. It is LCD display and also equipped with RS485 communication and pulse output.
- Page 5 harmful substances in the air Chapter 3 Dimension & Wiring 3.1 Dimension (Unit: mm) 3.2 Terminals & Wiring 1.5(6)A wiring diagram (CT operated) 5(40)A, 10(80)A wiring diagram(directly connected) Chapter 4 Communication Interface The meter is equipped with one communication interface. The settable baud rates of RS485 communication are 1200bps, 2400bps, 4800bps, 9600bps, 19200 bps.
- Page 6 with RS485 communication interfaces. For Modbus Communication Protocol, when the last three digits of the bar code are less than 256(decimal), the last three digits are the communication protocol addre ss for the meter. For example, if the bar code is 170510201023, the communication protocol address is 023.
- Page 7 Press button “▲” to increase values of passwords, baud rates, baud rate, PT/CT etc. Pres s button “▼” to shift digits. 5.2 Digits and Symbols Display Digits Display Communication Indication Unit Figure 1 LCD Display Interface Reference Diagram LCD Display Description LCD Display Description...
- Page 8 Chapter 7 After-sales Service Product Warranty 1. The product warranty period is one year. 2. The company is responsible for free maintenance or exchange within one -year warranty period. 3. The cost of the components and freight shall be charged for improper meter installation and/or operation.
