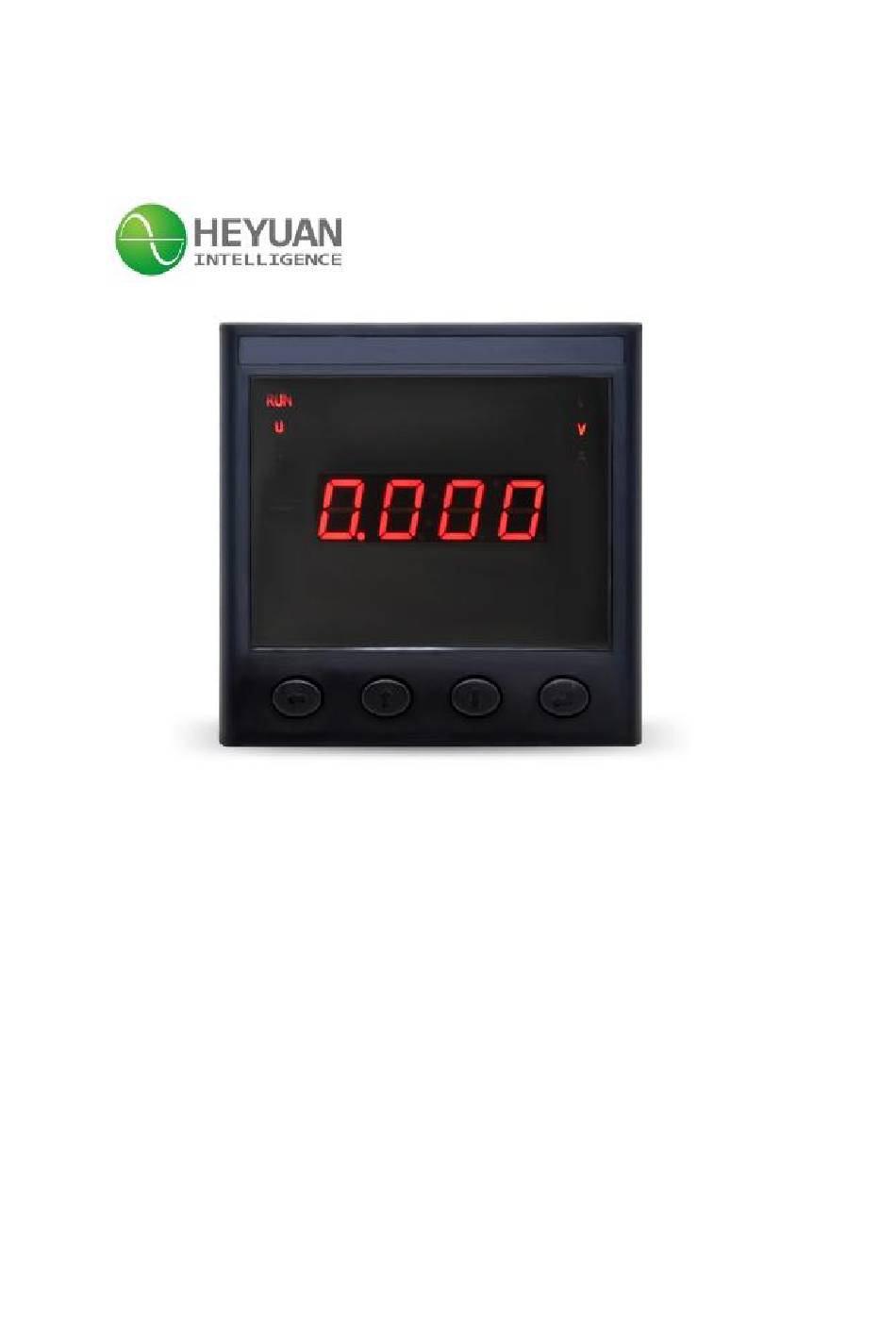

- Page 1 MS1UI7E1 Energy Meter User Manual Heyuan Intelligence Technology Co.,Ltd...
-
Page 2: Table Of Contents
Heyuan. IMPORTANT DECLARATIONS 1. This document is an instruction manual for MS1UI7E1. Its content will change as product is upgraded without notice. Please contactwith Heyuan Intelligence Technology Co., Ltd to get the latest product specifications if it is needed. -
Page 3: Meter Overview
Cutout Size Meter Installation MS1UI7E1 should be installed in dry, dust-free areas and avoid being placed. in the heat source, the source of radiation, the vicinity of the strong interference source. MS1UI7E1 instrument is generally installed on the switch cabinet disk, would hand clamp meter loading disk from the front to rear opening, the dew on the disk on the front panel, after the main shell and the terminal is located in the area. -
Page 4: Wiring Diagra
EMC filter, as shown in the figure. 2.2 The Communication The communications of MS1UI7E1 use the RS485 interface and Modbus RTU communication protocol. The terminals are 485A and 485B respectively. 2.3 Pulse Output... -
Page 5: Basic Operation
The meter usually works in the measurement data display mode, the voltage value measured in real time. It will appear on the screen. A total of four buttons on the MS1UI7E1 meter are left - shift key ), increase key (... - Page 6 1 .3 Press to circulate the power parameters in turn. 2.1 system parameter setting. In the measurement data display interface, press the " " and" " to enter the system parameter setting mode. In setting mode: The " " button is used to move the cursor, and each time, the cursor moves to the left of the cursor, while the light is at the same time.
- Page 7 Energy Ratio Switch(Optional) 2.3 Parameter Setting Operation Steps. 2.3.1 Under the measurement data display interface, press " " and" "at the same time Then will enter the system parameter setting mode. 2.3.22.3.2 The first interface of system parameter setting is PS, then press " ", enter the password inquiry interface, enter the meter password (the default password is 0000),press the "...
-
Page 8: After-Sales Service
2.3.6 The CT interface is the interface of the instrument CT(current transformer ratio). Press the " " to see the CT ratio of the current meter, which is set. The product range of PT and CT is not greater than 5500, press " "... - Page 9 Contact US Website: www.heyuanintel.com Hotline: 86-400-606-9877 Fax: 86-0531-68621679 Address: 7F No. 1 Aosheng Building, 1166 Xinluo Street, High-tech Development Zone, Jinan, P.R. China 250101...
