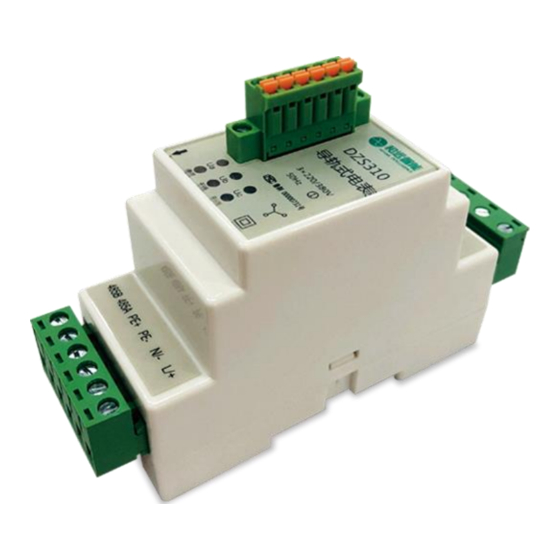

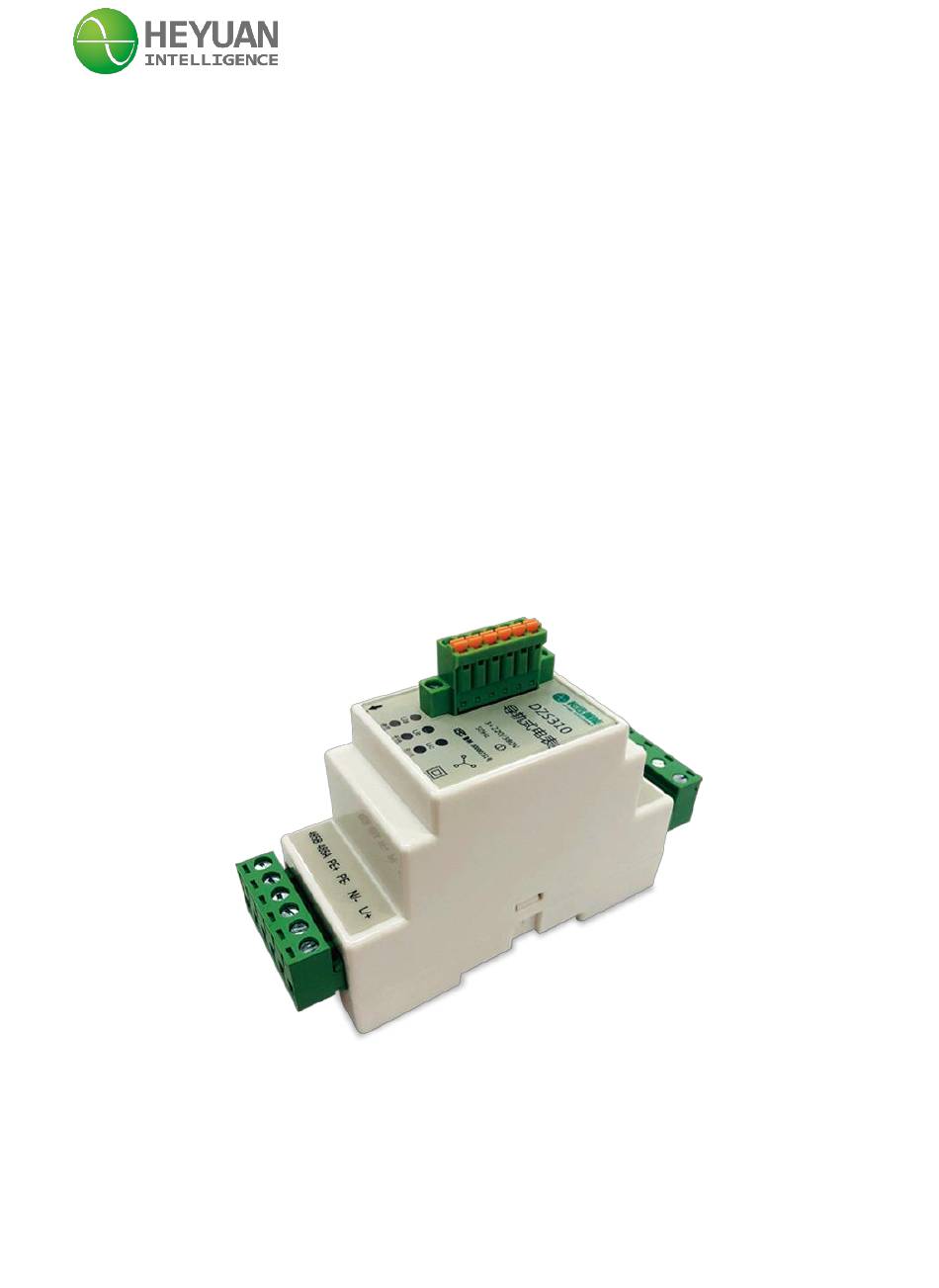

- Page 1 Smart Compact Din Rail Meter DZ81-DZS310 User Manual (V1.0) Heyuan Intelligence Technology Co., Ltd...
- Page 2 IMPORTANT DECLARATIONS Copyright © 2018 Heyuan Intelligence Technology Co., Ltd All Rights Reserved This manual may not be reproduced, copied, transmitted or transcribed in whole or in part by any means without the expressed written permission of Heyuan. Any shall be investigated for legal responsibility in violation of copyright or other intellectual property rights of the Company.
-
Page 3: Table Of Contents
Contents Chapter 1 Meter Overview ……………………………………………………………………………..1 Chapter 2 Specifications ………………………………………………………………………………….1 2.1 Specification……………………………………………………...........1 2.2 Main Technical Parameters…………………………………………………………………..1 2.1 Input Voltage ……………………..................1 2.2 Input Current ……………………..................1 2.3 Energy ……………………....................1 2.4 Frequency Measurement ……………………..............1 2.5 Measuring Accuracy …………………….................1 2.6 Communication ……………………................1 2.7 Power Supply ……………………...................1 2.8 Pulse Output Interface ……………………..............1 2.9 Working Condition ……………………................1 Chapter 3 Dimensions &... -
Page 4: Chapter 1 Meter Overview
2.6 Communication RS485/Modbus-RTU Communication Protocol Baud Rate: 1200~9600bps (settable) Remark: DZ81-DZS310 adopts RS485 interfaces and Modbus RTU communication protocol to communicate. The terminals are 485A and 485B. The RS485 transmission medium is shielded twisted pair. 2.7 Power Supply Power Supply: AC85~265V Power Consumption: <3VA... -
Page 5: Chapter 3 Dimensions & Installation
Chapter 3 Dimension & Installation 3.1 Overall Dimension (unit: mm) Top View (Unit: MM) Side View (Unit: MM) Model No. Dimension(mm) DZ81-DZS310 113.5 36.43 58.7 3.2 Installation Method Installation Environment: DZS310 should be installed in a dry and dust free environment. Avoid exposing meter to excessive heat, radiation and high electrical noise sources. -
Page 6: Three-Phase Three-Wire Wiring Mode Under Low Voltage
5.2 Three-phase Three-wire Wiring Mode under Low Voltage 5.3 RS485 Interface 5.4 Interface of Energy Pulse Output... -
Page 7: Chapter 6 Modbus Register Table
Chapter 6 Modbus Register Table 6.1 Basic Parameters Measured Zone (Secondary Value) (Function Code 03 Read) Address Address Parameter Name Default Value Value Range 4096 1000 A phase voltage Magnifying 100 times 0～65535 4097 1001 B phase voltage Magnifying 100 times 0～65535 4098 1002... -
Page 8: Basic Parameters Measured Zone (Primary Value) (Function Code 03 Read)
4127 101F voltage unbalance Magnifying 100 times 0~65535 4128 1020 current unbalance Magnifying 100 times 0~65535 6.2 Basic Parameters Measured Zone (Primary Value) (Function Code 03 Read) Address Address Parameter Name Default Value Value Range 5376 1500 A phase voltage Magnifying 100 times 0～4294967295 5377... - Page 9 5404 151C Magnifying 1000 A phase active power 2147483647~214748 times 5405 151D 3647 5406 151E Magnifying 1000 B phase active power 2147483647~214748 times 5407 151F 3647 5408 1520 Magnifying 1000 C phase active power 2147483647~214748 times 5409 1521 3647 5410 1522 Magnifying 1000 total active power...
-
Page 10: Basic Setting Parameters Zone
Remark: 1. Primary Voltage Value = Secondary Voltage Value * Voltage Ratio 2. Primary Current Value = Secondary Current Value * Current Ratio 3. Primary Power Value = Secondary Power Value * Voltage Ratio * Current Ratio 6.3 Basic Setting Parameters Zone (Function Code 06/0x10 Write;... -
Page 11: Chapter 7 After-Sales Service
17670 4506 17671 4507 Export Active Energy 17672 4508 17673 4509 17674 450A Total Reactive Energy 17675 450B 17676 450C 17677 450D Import Reactive Energy 17678 450E 17679 450F 17680 4510 Export Reactive Energy 17681 4511 Primary Power Value = Secondary Power Value * Voltage Ratio * Current Ratio Chapter 7 After-sales Service Product Warranty 1.
