  • Page 1 Instructions for use, installation, and connection Your induction hob...
  • Page 2: Table Of Contents

    CONTENTS Your induction hob Introduction Control panel SIVK6ETS Description Safety instructions What you should pay attention to Connection and repair During use Temperature safety Cooking-time limiter Using the touch controls Induction cooking How does induction work Pans Operation Switching on the hob and setting the power Switching off the hob Pan detection Residual warmth indicator...
  • Page 3: Your Induction Hob

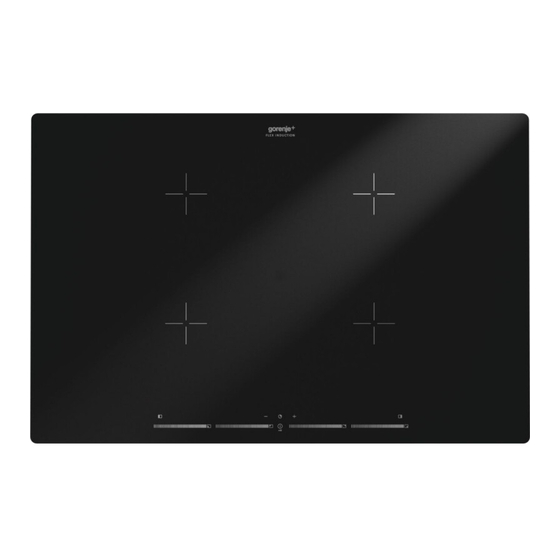

    YOUR INDUCTION HOB Introduction This hob has been designed for the real lover of cooking. Cooking with an induction hob has a number of advantages. It is easy, because the hob reacts quickly and can also be set to a very low power level. Because, moreover, it can also be set to a high power level, it can bring dishes to the boil very quickly.
  • Page 4: Control Panel Sivk6Ets

    YOUR INDUCTION HOB Control panel SIVK6ETS Bridge button for cooking zones left Multi slider cooking zone front left Multi slider cooking zone rear left On/Off button with lock mode indicator Timer button Multi slider cooking zone rear right Multi slider cooking zone front right Bridge button for cooking zones right Bridge indicator for cooking zones right 10.
  • Page 5: Description

    YOUR INDUCTION HOB Description Cooking zone front left octa 180 mm x 220 mm 3,7 kW Cooking zone rear left octa 180 mm x 220 mm 3,7 kW Cooking zone rear right octa 180 mm x 220 mm 3,7 kW Cooking zone front right octa 180 mm x 220 mm 3,7 kW Control panel GB 5...
  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS What you should pay attention to • Induction cooking is extremely safe. Various safety devices have been incorporated in the hob such as a residual heat indicator and a cooking time limiter. There are nevertheless a number of precautions you should take.
  • Page 7 SAFETY INSTRUCTIONS • The zones heat up during use and stay hot for a while afterwards. Keep young children away from the hob during and immediately after cooking. • Never let children play with this device. Children are not to be allowed near the device unsupervised.
  • Page 8: Temperature Safety

    SAFETY INSTRUCTIONS • The appliance is not intended to be operated by means of an external timer or separate remote-control system. • If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer’s service organisation or equivalently qualified persons, in order to avoid dangerous situations.
  • Page 9: Use

    Using the touch controls The touch controls may take some getting used to if you are used to other (rotary) controls. Place the tip of your finger flat on the control to achieve the best results. You do not have to apply any pressure. The touch sensors only react to the light pressure of a fingertip.
  • Page 10: How Does Induction Work

    How does induction work A magnetic field is generated in the appliance. By placing a pan with an iron base on a cooking zone, a current is induced in the pan base. This induced current generates heat in the base of the pan. Easy The electronic controls are accurate and easy to set.
  • Page 11 You can check for yourself whether your pans are suitable using a magnet. A pan is suitable if the base of the pan is attracted by the magnet. Suitable Unsuitable Special stainless steel pans Earthenware Class Induction Stainless steel Hard-wearing enamelled pans Porcelain Enamelled cast-iron pans Copper...
  • Page 12: Operation

    OPERATION Switching on the hob and setting the power The power has 9 settings. There is also a ‘boost’ setting, which is indicated by a ‘P.’ in the display (see page 14 ‘Boost’). • Put a pan on a cooking zone (In model SIVK6ETS, always place the cookware in such way that the indicated center of the cooking zone is covered.).
  • Page 13: Pan Detection

    OPERATION Pan detection If the hob does not detect a (ferrous) pan after the cooking power has been set, the pan detection symbol and the selected power setting will flash alternately in the display and the hob will remain cold. If a (ferrous) pan is not placed on the cooking zone within 1 minute, the cooking zone will automatically switch off (see also page 11 and 12 ‘Pans’).
  • Page 14: Two Cooking Zones Behind Each Other

    OPERATION Switching on the automatic heat-up function The hob is switched on and a pan is on a cooking zone. • Touch and slide your finger over the multi slider of the desired cooking zone to choose the correct setting and hold down your finger on that setting for 3 seconds.
  • Page 15: Bridge Mode

    OPERATION boost will automatically be switched to a lower setting. • Two cooking zones that are beside each other do not influence each other. You can set both cooking zones to Boost. Bridge mode The bridge mode can be activated by pressing the bridge button. Both zones on the left (and the right side;...
  • Page 16: Keeping Food Warm

    OPERATION Keeping food warm The function to keep food warm keeps the temperature of the food at a constant 42 °C. The selected cooking zone is operated with low power. When this function is active, the display shows the ‘keeping food warm’ symbol.
  • Page 17: Cooking Timer/Egg Timer

    OPERATION Cooking timer/Egg timer A cooking timer can be set for each cooking zone. All of the cooking timers can be used at the same time. The hob also has an egg timer. Both the cooking timer and the egg timer can be set to a maximum of 99 minutes.
  • Page 18 OPERATION Assigning and switching on the cooking timer The hob is switched on, at least one cooking zone is active (the cooking timer can only be linked to active cooking zones). • Press the timer button several times until the timer indicator (corresponding to the correct cooking zone) in the timer display starts blinking.
  • Page 19: Cooking

    Healthy cooking Burning point of different types of oil To ensure your food is fried as healthily as possible, Gorenje+ recommends choosing the type of oil according to the frying temperature. Each oil has a different burning point at which toxic gasses are released.
  • Page 20 COOKING • fry raw potatoes; • make French toast; • fry breaded fish. Use setting 6 and 5 to: • complete the cooking of large quantities; • defrost hard vegetables; • fry thin slices of breaded meat. Use settings 1-4 to: •...
  • Page 21: Maintenance

    MAINTENANCE Cleaning Set the child lock before you start cleaning the hob. Daily cleaning • Although food spills cannot burn into the glass, we nevertheless recommend you to clean the hob immediately after use. • Best for daily cleaning is a damp cloth with a mild cleaning agent. •...
  • Page 22: Faults

    FAULTS General If you notice a crack in the glass top (however small), switch the hob off immediately, unplug the hob, turn off the (automatic) fuse switch(es) in the meter cupboard or, in the event of a permanent connection, set the switch in the power supply lead to zero.
  • Page 23 FAULTS Symptom Possible cause Solution Fault code ER22. The control panel is filthy or Clean control panel. has water on it. Fault code E2. The hob has overheated. Let the hob cool down and then use a lower setting. Fault code E3. The pan you are using is not Use a suitable pan, see page suitable.
  • Page 24: Installation

    INSTALLATION What you need to consider Safety instructions for the installation • The connection must comply with national and local regulations. • The appliance must always be earthed. • This appliance may only be connected by a competent electrical installer. •...
  • Page 25 INSTALLATION Installation dimensions The dimensions and recesses are shown in the illustrations below. R10 (4x) R10-12 min.40 R10-12 R10 (4x) R10-12 min.40 R10-12 If the hob is wider than the cupboard, with a worktop less than 48 mm thick, saw a cut-out in both sides of the cupboard, so the appliance is detached from the cupboard.
  • Page 26 INSTALLATION Installation dimensions inside the cabinet x<48 mm: y = 48 mm - x x>= 48 mm: y = 0 mm GB 26...
  • Page 27: Additional Requirements For The Integration (Flush Installation) Of The Hob (Hi7271Msi, Hi8271Si And Hi9271Si)

    INSTALLATION Additional requirements for the integration (flush installation) of the hob (HI7271MSI, HI8271SI and HI9271SI) • The hob can only be integrated above a single cupboard at least 800/900 mm wide (see illustration). • Once it has been integrated, the hob must remain accessible from min.
  • Page 28: Ventilation

    INSTALLATION Ventilation The electronics in the appliance need cooling. The appliance will automatically switch off if there is insufficient air circulation. There are ventilation openings on the underside of the appliance. It must be possible for cool air to be drawn in through these openings.
  • Page 29: Lower Kitchen Cabinet With An Oven

    INSTALLATION Lower kitchen cabinet with an oven • Installing the oven under an induction hob is possible with oven types EVP4.., EVP2.., which are fitted with a cooling fan. Before installing the oven, the rear wall of the kitchen cabinet should be removed.
  • Page 30: Electrical Connection

    INSTALLATION Electrical connection Common connections: • 2 phase and 1 zero connection (2 1N, 400 V~/ 50 Hz): ▷ The voltage between the phases and the neutral is 230 V~. The voltage between the two phases is 400 V~. Fit a connecting bridge between connecting points 4-5.
  • Page 31 INSTALLATION Special connection: • Single phase connection (1 1N, 230 V~ / 50 Hz): ▷ The voltage between the phase and the neutral is 230 V~. Fit a connecting bridge between connecting points 1-2 and 4-5. The group must have a fuse of at least 32 A. The core diameter of the connecting should be at least 6 mm The bridges on the connecting block can be used to create the required connections, as indicated in these illustrations.
  • Page 32: Building In

    INSTALLATION Building in Check that the cabinet and the cut-out meet the dimension and ventilation requirement Treat the sawn ends of wooden or synthetic worktops with sealing varnish if necessary, to prevent moisture causing the worktop to swell. Lay the hob upside down on the worktop. Fit the connecting cable to the appliance in compliance with the requirements (see page 29 and 30).
  • Page 33: Technical Details

    INSTALLATION Technical details This appliance complies with all relevant CE directives. Hob type SIVK6GTS SIVK6ETS Induction Connection 230V - 50Hz 230V - 50Hz Max. capacity cooking zones Front left 3,7 kW (octa 180x220 mm) 3,7 kW (octa 180x220 mm) Rear left 3,7 kW (octa 180x220 mm) 3,7 kW (octa 180x220 mm) Rear right 3,0 kW (Ø180 mm)
  • Page 34: Environmental Aspects

    ENVIRONMENTAL ASPECTS Disposal of packaging and appliance In the manufacturing of this appliance durable materials were used. Make sure to dispose of this equipment responsibly at the end of its lifecycle. Ask the authorities for more information regarding this. The appliance packaging is recyclable. The following may have been used: •...
  • Page 35 GB 35...
