Summary of Contents for Pyxis OxiGO SP-208

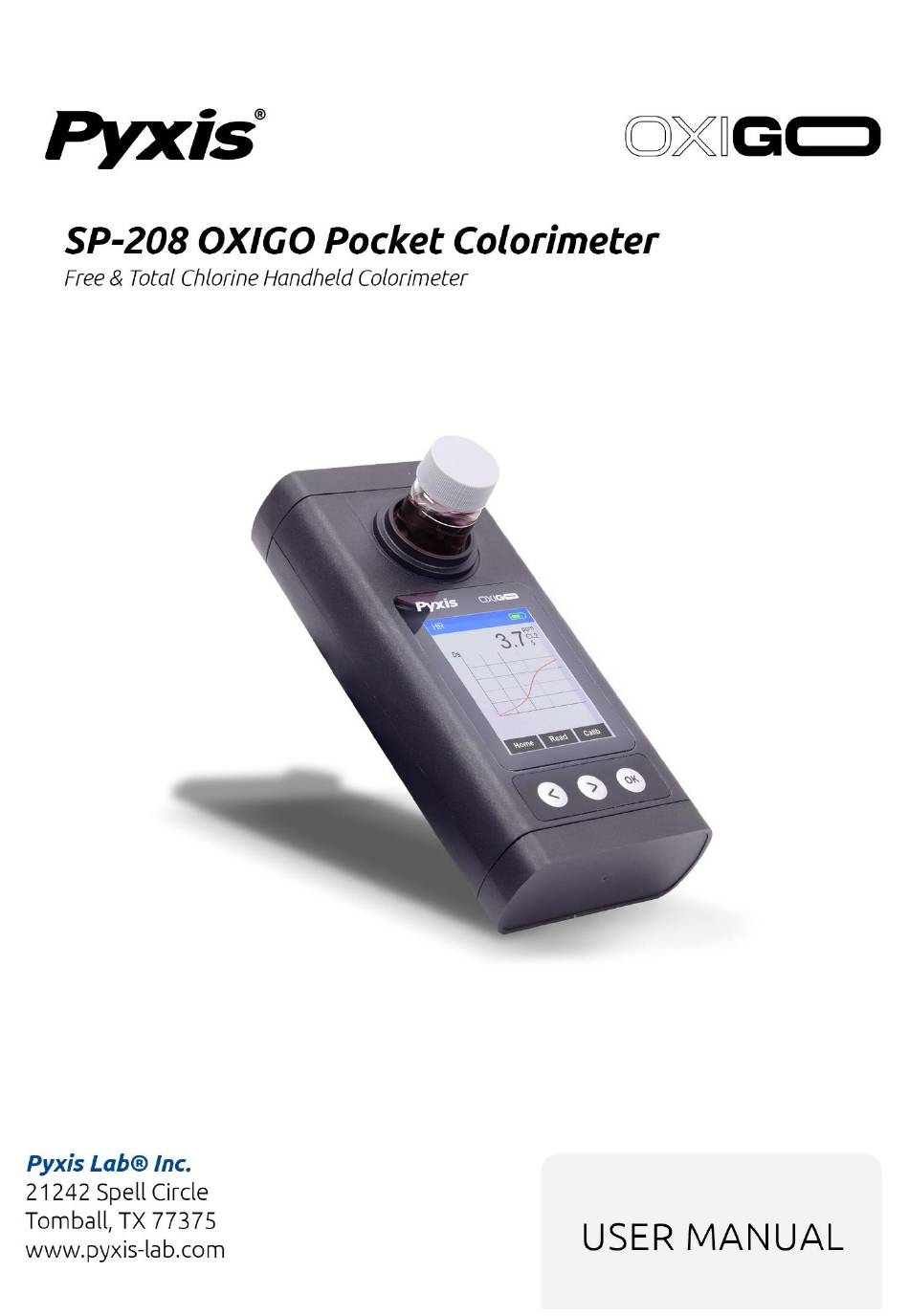

- Page 1 SP-208 Oxi-GO Handheld Free/Total Chlorine Colorimeter Operation Manual May, 2024 Rev. A Pyxis Lab, Inc. 21242 Spell Circle Tomball, Tx 773756 USA www.pyxis-lab.com © 2024 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
-
Page 3: Table Of Contents
Contents General Description ......................1 Major Features ......................1 Specification ........................2 Unpacking the Instrument ....................3 Standard Accessories ....................3 Optional Accessories ....................3 Optional Reagents and HACH Cross Reference ............4 Installation ........................5 Battery Installation ....................5 pH/ORP Module Installation .................. - Page 4 Free & Total Chlorine Calibration ................15 pH Calibration ......................17 7.2.1 One-Point Calibration ................... 18 7.2.2 Two-Point Calibration ................... 18 7.2.3 Three-Point Calibration ................19 ORP Calibration ...................... 20 Device Information and Diagnosis ................. 22 8.1 Bluetooth Connection to uPyxis® Mobile or uPyxis® Desktop App ......23 Factory Reset ......................
- Page 5 Pyxis Lab Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new). The warranty set forth is exclusive and no other warranty, whether written or oral, is expressed or implied.
-
Page 7: General Description
This device is Bluetooth® 5.0 enabled for data log transfer, firmware updates and screen customization via the uPyxis® mobile and desktop app. *NOTE* The SP-208 allows users to expand its functions by purchasing a Pyxis pH & ORP Module (P/N 50315), see section 5.0 for more details. -
Page 8: Specification
2 Specification *NOTE* Specifications are subject to change without notice. Contact Pyxis (service@pyxis- lab.com) for an updated specification list. Item SP-208 OXI-GO 63068 Low Chlorine Range 0.02-2.2mg/L (Free or Total Chlorine) High Chlorine Range 0.1-10.0mg/L (Free or Total Chlorine) Temperature Range... -
Page 9: Unpacking The Instrument
Remove the instrument and accessories from the shipping container and inspect each item for any damage that may have occurred during shipping. Verify that all items listed on the packing slip are included. If any items are missing or damaged, please contact Pyxis Customer Service at service@pyxis-lab.com. -
Page 10: Optional Reagents And Hach Cross Reference
3.3 Optional Reagents and HACH Cross Reference Pyxis Method Pyxis Reagent Hach HACH Reagent Description Reagent Name Reagent Name CAT # Name DPD Free Chlorine Free Chlorine CL-F 31002 21055-69 Powder Pillows Chlorine DPD Total Chlorine Total Chlorine CL-T 31014... -
Page 11: Installation
4 Installation 4.1 Battery Installation The SP-208 is powered by 4 AA alkaline batteries. The 4 AA alkaline batteries will last sufficient for approximately 10,000 measurements. When the battery capacity is critically low, the SP-208 will display a LOW BATTERY warning for 5 seconds and then automatically turn off. -
Page 12: Ph/Orp Module Installation
Order a replacement pH/ORP module (P/N: 50315) from Pyxis at order@pyxis-lab.com. If the module is turned on for 20 minutes a day, the module battery can last for about a year. The module indicator light will flash red if the module battery is low. Each replacement pH/ORP module will be shipped with a COC (Certificate of Calibration). -
Page 13: Ph/Orp Module Battery Installation
4.4 pH/ORP Module Battery Installation The new pH/ORP module has a lithium thionyl chloride battery (3.7V-ER14250) installed. When the battery capacity is critically low and the main module displays a LOW BATTERY warning, replace the ER14250 battery. Use the following procedure to install a new battery: Unsnap the pH/ORP module from the top of the main module. -
Page 14: Instruction Overview
5 Instruction Overview pH & ORP module Overview Figure 5 Main module Overview Figure 6... -
Page 15: Ph/Orp Cell Cap Seal
It may be discarded if desired, but pH/ORP Storage Solution must be maintained in the unit cell at all times during non-use. Please fill the pH/ORP cell with 1 mL of Pyxis pH/ORP Storage Solution (P/N: 63900) at all times when not using the pH/ORP cell. -
Page 16: Ph/Orp Module On/Off
6 Measurement 6.1 Switch Measurement Mode The SP-208 only has one measurement mode when it leaves Pyxis factory (i.e., DPD free and total Chlorine mode). However, the measurement mode of SP-208 can be expanded with the purchase of a pH&ORP module. *Note* The pH&ORP mode is disabled by default, refer to section 8.0... -
Page 17: Dpd Free And Total Chlorine Measurement
6.2 DPD Free and Total Chlorine Measurement 6.2.1 Supported Methods The SP-208 OXIGO™ is a unique pocket colorimeter specifically designed for measurement of free and total chlorine at low and high ranges (0.02–2.2ppm LR; 0.1–10.0ppm HR) in both Industrial & Municipal water treatment applications. Method Name Description Range... -
Page 18: Ph/Orp Measurement
6.3 pH/ORP Measurement 6.3.1 Measurement Procedure *Precondition* when first using pH&ORP module, please enable and pair the pH/ORP module, refer to 8.0 section section. Once completed, follow the steps below for pH&ORP measurements Press pH/ORP ( ) to switch to the pH/ORP measurement mode. This will automatically power on the pH/ORP module. -
Page 19: Erroneous Values
6.3.2 Erroneous Values An erroneous pH value could be obtained if the module has been stored dry without the protection of pH/ORP Storage Solution for a long period of time. In this case, please fill the module cell with pH/ORP Storage Solution to wet the electrode and allow it to soak for 30 minutes before use. -
Page 20: Orp Measurement Principle
6.3.4 ORP Measurement Principle The SP-208 pH/ORP module measures the sample ORP with the platinum electrode and the Ag/AgCl reference electrode in the pH/ORP cell. The pH measurement and the ORP measurement share the same reference electrode. Reporting an ORP value without specifying the reference scale has no meaning. -
Page 21: Calibration
7 Calibration Free & Total Chlorine Calibration The method has been calibrated prior to shipping, there is no need to calibrate unless a calibration check indicates that the method needs a calibration. The following steps are used to calibrate a method: Each method has been calibrated prior to shipping, there is no need to calibrate unless a calibration check indicates that the method needs a calibration. - Page 22 Figure 16 Figure 17...
-
Page 23: Ph Calibration
pH Calibration The SP-208 is designed to provide a flexible calibration procedure. The user can start with the one-point pH7 calibration and progressively add a two- and three-point calibration with the pH4 and pH10 buffers. This allows the user to choose a procedure based on the need of measurement accuracy and the target pH range. -
Page 24: One-Point Calibration
7.2.1 One-Point Calibration Rinse the pH/ORP sample cell three times with the pH7 buffer. Fill the sample cell with the pH7 buffer. Allow 5–10 seconds for the pH measurement to stabilize and the padlock ( ) to appear. Press pH7 ( ) to start a one-point calibration. -
Page 25: Three-Point Calibration
7.2.3 Three-Point Calibration Use the remaining buffer (either the pH4 or pH10) for a three-point calibration. Rinse the pH/ORP sample cell three times with the remaining buffer. Fill the sample cell with the remaining buffer. Allow 5–10 seconds for the pH measurement to stabilize and the padlock ( ) to appear. -
Page 26: Orp Calibration
ORP Calibration The ORP scale of the SP-208 depends on the ORP scale of the calibration standard. For example, if the value of 220 mV for the common Zobell’s standard at 25 °C is entered in the above calibration, the ORP value reported by the SP-208 after calibration is referenced to the Ag/AgCl(3M KCl) scale. - Page 27 7. Press OK ( ) to launch the ORP CALIBRATION screen (Figure 23). 8. Use + ( ) and - ( ) to adjust the ORP value to match the ORP standard used. 9. Press Calib ( ). The message “Calibration Success” will appear on the display (Figure 24).
-
Page 28: Device Information And Diagnosis
). The information has no use for normal operation, Figure but instead is used for device troubleshooting. Provide an image of both the Information screen and the diagnosis screen when you contact service@pyxis-lab.com troubleshooting your device or call +1 (866) 203-8397. Figure 25 Figure 26... -
Page 29: Bluetooth Connection To Upyxis® Mobile Or Upyxis® Desktop App
8.1 Bluetooth Connection to uPyxis® Mobile or uPyxis® Desktop App The SP-208 uses a built-in Bluetooth Low Energy Connection (BTLE) to connect wirelessly to a smart phone via the uPyxis® Mobile App or to a computer via the included Bluetooth Adapter (P/N: MA-NEB) and the uPyxis®... -
Page 30: Bluetooth Paring To Ph&Orp Module
8.3 Bluetooth Paring to pH & ORP module Power on the SP-208 by pressing ( Make sure pH&ORP mode is enabled, refer to see section 8.0. Press Measure ( ) to switch the measurement mode to pH/ORP mode(Figure 13). Press Comm ( ) to launch the Bluetooth Paring screen(Figure 30). -
Page 31: Use With Upyxis® 1.0 Mobile App
2. Open uPyxis® Mobile App. 3. On uPyxis® Mobile App, pull down to refresh the list of available Pyxis devices. 4. If the connection is successful, the SP-208 and its Serial Number (SN) will be displayed ( Figure ). -
Page 32: Setting Screen
9.3 Setting Screen From the Setting screen (Figure 31), the user can set the Power off time and Screen off time in seconds. Figure 33 Figure 34 9.4 System Screen When connected, the uPyxis® Mobile App will default to the System screen (Figure 34). From the System screen, users can change the Device Name, find the Serial Number, Hardware Version, and Firmware Version, as well as update the firmware of the SP-208 by pressing Check... -
Page 33: Datalog Screen
9.5 Datalog Screen From the Datalog screen, the user can view and export the internal log files of the SP-208 by pressing Read Datalogs and selecting the desired datalog (these are separated by month). The SP-208 will then populate any relevant log event from the selected datalog which can be viewed in more detail by pressing Read Record or exported as a CSV document by... -
Page 34: Use With Upyxis® Desktop App
10 Use with uPyxis® Desktop App 10.1 Install uPyxis® Desktop App Download the latest version of uPyxis® Desktop software package from: https://pyxis- lab.com/upyxis/ this setup package will download and install the Microsoft.Net Framework 4.5 (if not previously installed on the PC), the USB driver for the MA-NEB USB-Bluetooth adapter (P/N: MA-NEB) and the main uPyxis®... -
Page 35: System Screen
Once connected to the device, a picture of the device will appear on the top-left corner of the window and the uPyxis® Desktop App will default to the System screen. From the System screen, users can upgrade the firmware by selecting an appropriate firmware file (contact service@pyxis-lab.com for these firmware files) and clicking Upgrade Firmware. -
Page 36: Setting Screen
10.4 Setting Screen From the Setting screen, the user can set the Power off time and Screen off time in seconds. Figure 39... -
Page 37: Datalog Screen
10.5 Datalog Screen From the Datalog screen, the user can view, delete, and export the internal log files of the SP- 208 by clicking Read Datalog List and selecting the desired datalog (these are separated by month). The SP-208 will then populate any relevant log event from the selected datalog which can be viewed in more detail by clicking Read Datalog, deleted by clicking Delete, or... -
Page 38: Device Maintenance And Precaution
When the pH/ORP cell is not in use, fill the cell with 1 mL of Pyxis pH/ORP Storage Solution (P/N: 63900) and ensure the pH/ORP cell seal is closed completely. The pH/ORP cell seal maintains a moist environment for the electrodes. -
Page 39: Contact Us
12 Contact Us Pyxis Lab, Inc 21242 Spell Circle Tomball, Tx 773756 USA www.pyxis-lab.com Phone: +1 (866) 203-8397 Email: service@pyxis-lab.com...
