InWin IW-RL100 User Manual

1u liquid-cooled rackmount chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

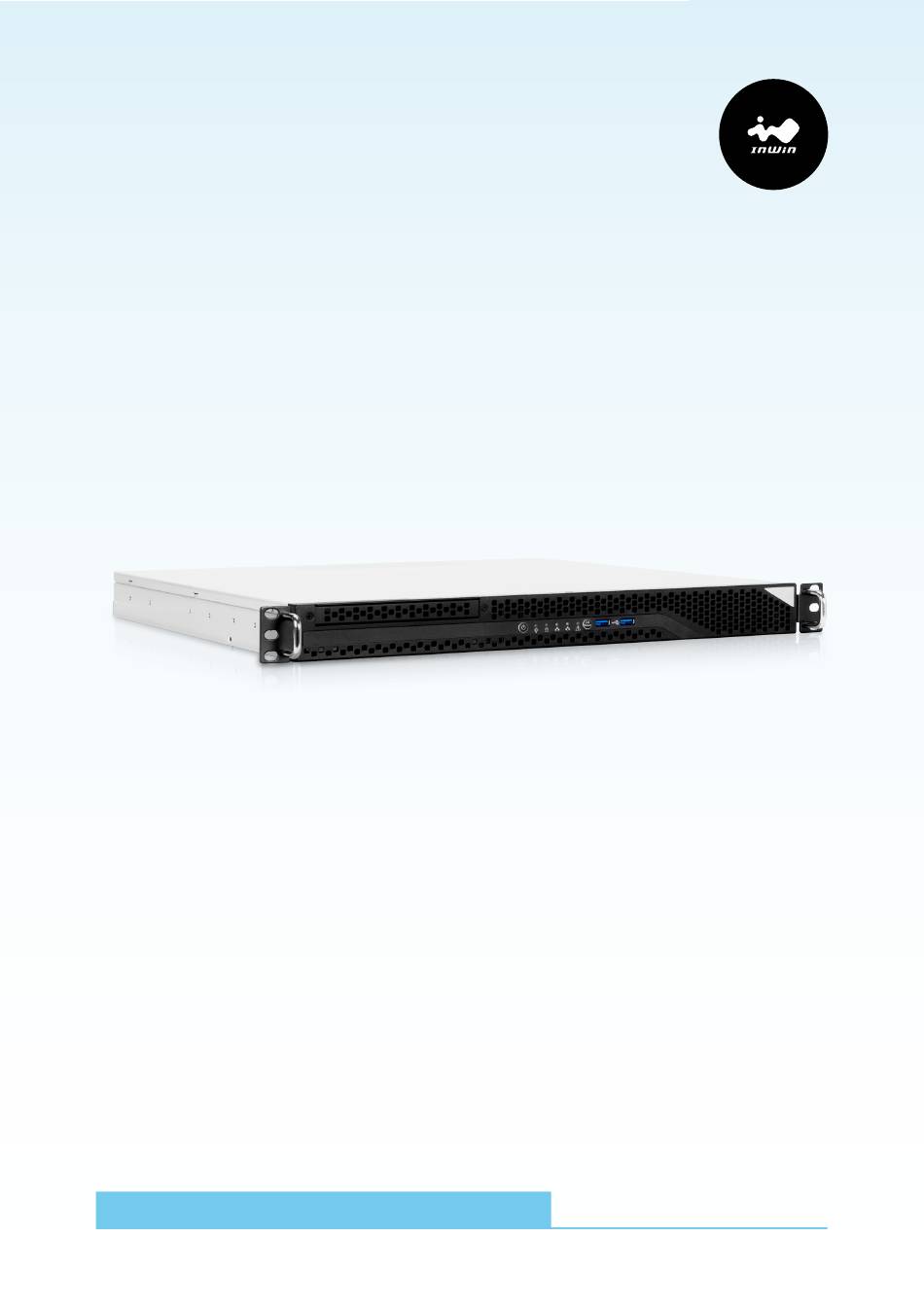

IW-RL100
User Manual
1U Liquid-Cooled Rackmount Chassis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW-RL100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InWin IW-RL100

Summary of Contents for InWin IW-RL100

  • Page 1 IW-RL100 User Manual 1U Liquid-Cooled Rackmount Chassis...
  • Page 2 InWin’s server website. SAFETY INFORMATION To ensure a safe and smooth operation of your InWin IW-RL100, it is essential that you choose an appropriate location for the system, provide an appropriate operating environment and supply an adequate amount of power for all components of the system.
  • Page 3 Installing or Removing Jumpers: A jumper is a short length conductor used to close, open or bypass part of an electronic circuit. Jumpers on InWin backplanes have a small tab on top that you can pick up with your fingertips. Grip the jumper carefully and plug the jumper to cover the jumper pins on the backplane.

  • Page 4: Product Introduction

    1 Product Introduction 1.1 Box Contents When you open the IW-RL100 box, the contents should include following:...

  • Page 5: Accessories Box

    1.2 Accessories Box Item Item Motherboard Stand-Offs x 10 Thermal Compound x 1 Motherboard Screws x 11 Standoff Screws (LGA 1851/1700) x 4 PSU Screws A x 2 Intel CPU Backplate (High standoff) x1 PSU Screws B x 3 Intel CPU Backplate (Low standoff) x1 3.5"...

  • Page 6: General Information

    1.3 General Information When you open the chassis, it should reflect the diagram’s image. 40 x 28mm PWM fans x 2 (optional) Top cover Front controls and indicator Rear I/O shield mounting area 1U-height AIO liquid cooler (pre- HDD mounting area installed) M/B mounting area 1U Flex PSU mounting area...
  • Page 7 1.3.1 Front Panel Controls and Indicators The IW-RL100 control panel, indicators are located on the Front Panel. Name Color Status Description Power On/Off Button Press the button to turn the power on. Solid on System is powered on. Power LED Blue System is off.

  • Page 8: Rear Panel Configuration

    Power Supply Window compatibility list to select the compatible models. System I/O InWin offers a customized service for 1U I/O shield. For more (Depends on M/B Specifications) Information, please contact InWin’s sales reps. The slot supports standard high profile cards. The bracket should be Full-Height PCIe Slot x 1 removed before using.

  • Page 9: Hardware Installation

    For a quick installation video, please visit Fan Bracket & Expansion Card Installation The IW-RL100 has options to add additional fans and expansion card bracket set. Users can select the options according to the system need. Fan Bracket & Expansion Card Installation.

  • Page 10: Connecting Cables

    2.4 Connecting Cables Connecting LED Cable, Front Control Panel Refer to your motherboard user guide for pin functions and locations, and then plug the connectors to the pins on the motherboard to activate the functions. POWERSW POWER LED HDD LED LAN 1 LED LAN 2 LED INST...

  • Page 11: Installing The Slide Rail

    2.5 Installing the Slide Rail The IW-RL100 is a rackmount model, which supports EIA-RS310D standard cabinets and chassis racks. InWin provides standard slide rails to allow users to mount the chassis onto the cabinets. 2.5.1 Identifying the Slide Rail The slide rail by your order might be different. You can reference the quick installation guide inside the slide rail package and follow the instructions to mount the rail onto your cabinet or chassis rack.
  • Page 12 Step 3: Install the outer rails and the brackets onto the rack. 2.5.3 Mount the chassis onto the cabinet Step 1: Make sure the ball bearing retainer is at the forefront. Step 2: Insert the inner rail to the outer rail which has already locked up on the cabinet. Step 3: Mount the inner rail onto the chassis by the direction which the arrows show on the image.

  • Page 13: Compatibility Lists

    InWin’s chassis. You can download the latest updated device compatibility list from InWin’s website: ipc.in-win.com. Technical Support If you need help with installation or troubleshooting, you can contact your local InWin reps, or send an e-mail to InWin’s local contacts for technical assistance.
  • Page 14 Co py r ig ht © I n W in D eve lo p m ent I n c . A l l Ri g ht s Res e r ved .
