InWin IW-RL400 User Manual

4u liquid-cooled rackmount chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IW-RL400
User Manual
4U Liquid-Cooled Rackmount Chassis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW-RL400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InWin IW-RL400

Summary of Contents for InWin IW-RL400

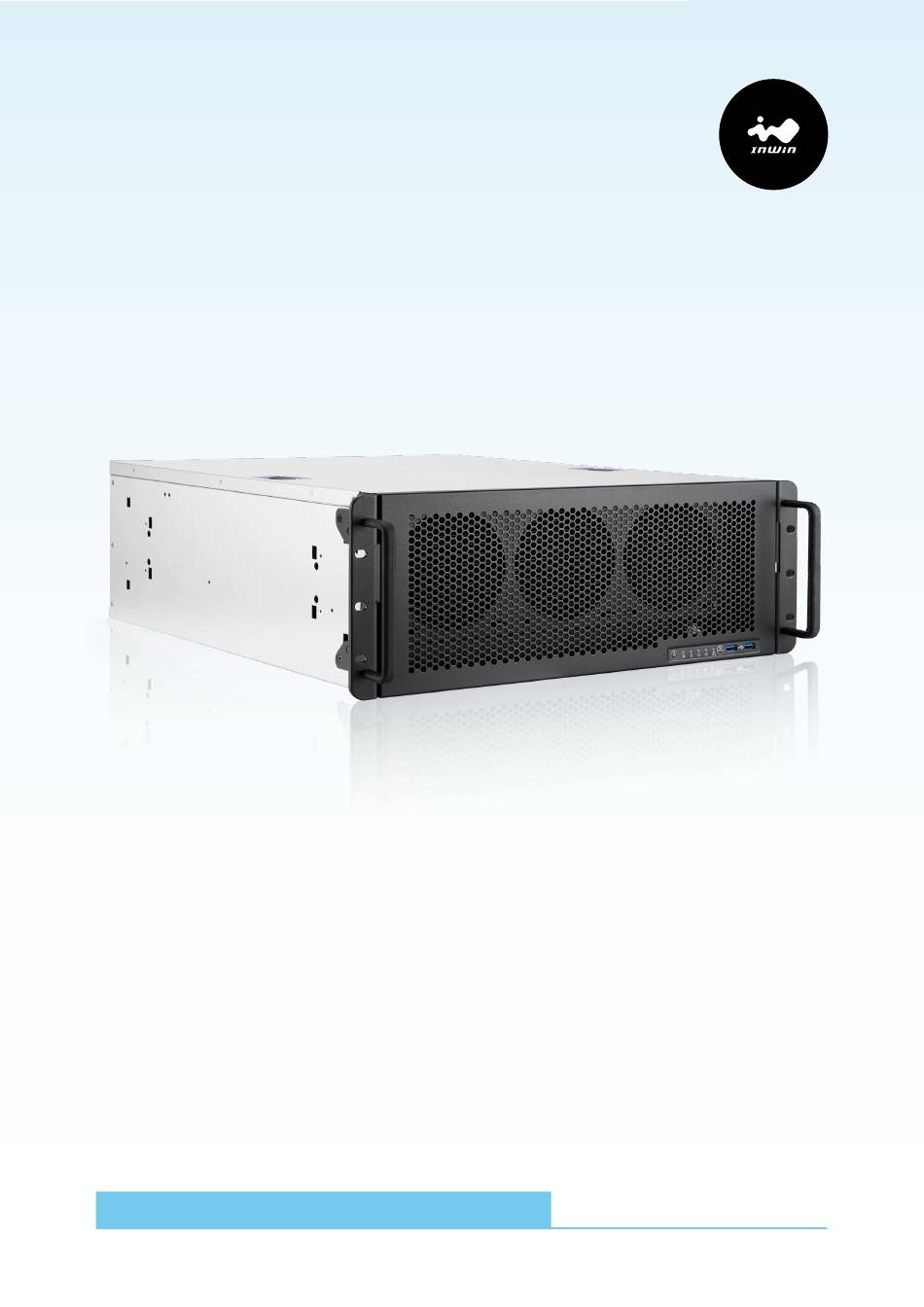

  • Page 1 IW-RL400 User Manual 4U Liquid-Cooled Rackmount Chassis...
  • Page 2 InWin’s server website. SAFETY INFORMATION To ensure a safe and smooth operation of your InWin IW-RL400, it is essential that you choose an appropriate location for the system, provide an appropriate operating environment and supply an adequate amount of power for all components of the system.
  • Page 3 Installing or Removing Jumpers: A jumper is a short length conductor used to close, open or bypass part of an electronic circuit. Jumpers on InWin backplanes have a small tab on top that you can pick up with your fingertips. Grip the jumper carefully and plug the jumper to cover the jumper pins on the backplane.

  • Page 4: Product Introduction

    1 Product Introduction 1.1 Box Contents When you open the IW-RL400 box, the contents should include following:...

  • Page 5: Accessories Box

    1.2 Accessories Box 10-1 10-2 10-3 10-4 Item Item Motherboard Stand-Offs x 14 Cable Ties and Mounts x 5 Motherboard Screws x 14 PWM Fan Extension Cable x 1 3.5" HDD Standoff x 1 CRPS holder bracket set 3.5" HDD screws x 30 10-1 Outer bracket 2.5"...

  • Page 6: General Information

    1.3 General Information When you open the chassis, it should reflect the diagram’s image. Top cover Full-Height PCIe Slot x 8 Optional rear fans mounting area Screwless adjustable GPU holder Rear I/O shield mounting area HDD cage 360mm AIO liquid cooler (pre-installed) PSU mounting area Front controls and indicator HDD cage mounting area...

  • Page 7: Front Panel Controls And Indicators

    1.3.1 Front Panel Controls and Indicators The IW-RL400 offer a five-layer 3.5" HDD tray with the option to swap the first layer for a 2.5" SSD. The control panel, indicators are located on the Front Panel. Name Color Status Description Power On/Off Button Press the button to turn the power on.

  • Page 8: Rear Panel Configuration

    1.3.2 Rear Panel Configuration Name Description This window is for installing single PSU, please reference InWin Power Supply Window compatibility list to select the compatible models. System I/O The I/O shield should come with the motherboard or is provided by (Depends on M/B Specifications) motherboard vendors.

  • Page 9: Hardware Installation

    For a quick installation video, please visit Storage & Fan Installation The IW-RL400 features tool-less cage. Users no longer need to use screws to mount the cages. The IW-RL400’s offers optional fans and fan kits. User can purchase additionally for installation.
  • Page 10 ■ 2500W Single PSU Cable Information 600 mm 700 mm 24-Pin Main Power Connector PCIe 6-2 pin GPU 700 mm 150 mm 4+4-Pin CPU Peripheral Power Connector 550 mm 700 mm 150 mm 150 mm PCI-E 12V-2X6 SATA Please use an addictional 6+2 Pin PCI-E cable if your GPU exceeds 225W While your GPU exceeds 225W, please connect the 6+2 Pin PCI-E cables as diagram.
  • Page 11 ■ 550W 、 800W and 1200W CRPS PSU Cable Information 24-Pin Main Power Connector Peripheral Power Connector 8-Pin CPU SATA Power Connector PCIe 6-2 pin X2 GPU PMBus PCIe 6-2 pin X2 GPU...
  • Page 12 ■ 1600W and 2000W CRPS Cable Information 24-Pin Main motherboard PCIe 6+2 pin X2 GPU 8-Pin CPU PCIe 6+2 pin X2 GPU 8-Pin CPU PCIe 6+2 pin X2 GPU 4+4-Pin CPU PCIe 6+2 pin X2 GPU...
  • Page 13 molex 4pin X2 expansion SATA 15pin X3 internal HDD molex 4pin X2 expansion PMBus...

  • Page 14: Connecting Cables

    2.4 Connecting Cables Connecting LED Cable, Front Control Panel Refer to your motherboard user guide for pin functions and locations, and then plug the connectors to the pins on the motherboard to activate the functions. USB 3.0 Connector Name Abbreviation Color Front I/O Indication Power Switch...

  • Page 15: Installing The Slide Rail

    2.5 Installing the Slide Rail The IW-RL400 supports EIA-RS310D standard cabinets and chassis racks. InWin provides standard slide rails to allow users to mount the chassis onto the cabinets. Or the slide rail by your order might be different. You can reference the quick installation guide inside the slide rail package and follow the instructions to mount the rail onto your cabinet or chassis rack.
  • Page 16 Step 3: Install the outer member and bracket on the rack. Step 4: Assemble the chassis on to the rack.
  • Page 17 2.5.2 Remove the slide rails Step 1: Remove the chassis from the rack. Step 2: Remove the outer rail from the rack. Step 3: Remove the inner rail from the chassis.

  • Page 18: Compatibility Lists

    InWin’s chassis. You can download the latest updated device compatibility list from InWin’s website: ipc.in-win.com. Technical Support If you need help with installation or troubleshooting, you can contact your local InWin reps, or send an e-mail to InWin’s local contacts for technical assistance.
  • Page 19 Co py r ig ht © I n W in D eve lo p m ent I n c . A l l Ri g ht s Res e r ved .
