InWin IW-RL200 User Manual

2u liquid-cooled rackmount chassis

Advertisement

Quick Links

IW-RL200
User Manual
2U Liquid-Cooled Rackmount Chassis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW-RL200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for InWin IW-RL200

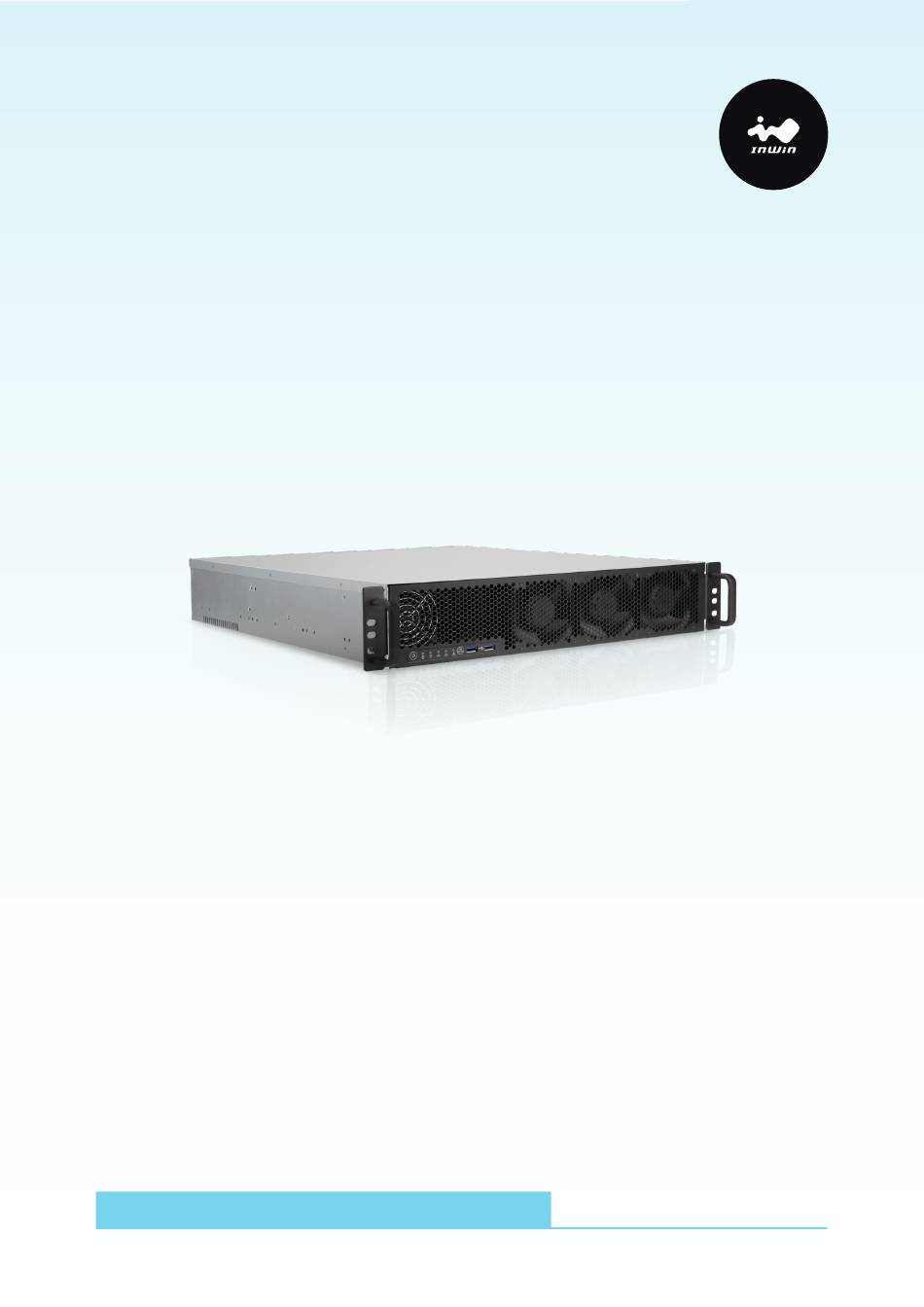

  • Page 1 IW-RL200 User Manual 2U Liquid-Cooled Rackmount Chassis...
  • Page 2 InWin’s server website. SAFETY INFORMATION To ensure a safe and smooth operation of your InWin IW-RL200, it is essential that you choose an appropriate location for the system, provide an appropriate operating environment and supply an adequate amount of power for all components of the system.
  • Page 3 Installing or Removing Jumpers: A jumper is a short length conductor used to close, open or bypass part of an electronic circuit. Jumpers on InWin backplanes have a small tab on top that you can pick up with your fingertips. Grip the jumper carefully and plug the jumper to cover the jumper pins on the backplane.
  • Page 4: Product Introduction

    1 Product Introduction 1.1 Box Contents When you open the IW-RL200 box, the contents should include following:...
  • Page 5: Accessories Box

    1.2 Accessories Box Item Item AIO Accessories: Fan Screws x 12 Radiator Screws x 4 Motherboard Screws x 12 Thumbscrew Caps x 4 Thermal Compound x 1 Mylar x 1 Motherboard Stand-off Socket x 12 Redundant Power Supply Accessories: Cables Ties and Mount x 5 Mounting Bracket x 2...
  • Page 6: General Information

    1.3 General Information When you open the chassis, it should reflect the diagram’s image. � � � � � � � �� � � Full-Height PCIe Slot x 3 Top cover Front controls and indicator Optional fans mounting area 2U-height AIO liquid cooler Rear I/O shield mounting area (pre-installed) M/B mounting area...
  • Page 7: Front Panel Controls And Indicators

    1.3.1 Front Panel Controls and Indicators The IW-RL200 supports USB 3.0 x 2. The control panel, indicators are located on the Front Panel. � � � � � � � Name Color Status Description Power On/Off Button Press the button to turn the power on.
  • Page 8: Rear Panel Configuration

    � � � Name Description This window is for installing single PSU, please reference InWin Power Supply Window compatibility list to select the compatible models. System I/O The I/O shield should come with the motherboard or is provided by (Depends on M/B Specifications) motherboard vendors.
  • Page 9: Hardware Installation

    IW-RL200 Expansion Card & Fan For a quick installation video, please visit Storage & PSU Installation The IW-RL200 includes a modular 2.5" SSD bracket for easy installation and a modular 1+1 CRPS (optional) for easy swapping. IW-RL200 Storage & PSU...
  • Page 10 2.3.1 Power Supply Cable Information 550W、800W and 1200W CRPS Cable Information Peripheral Power Connector 24-Pin Main Power Connector 8-Pin CPU SATA Power Connector PCIe 6-2 pin X2 GPU SATA Power Connector PCIe 6-2 pin X2 GPU...
  • Page 11 2.3.2 Power Supply Cable Information 1600W and 2000W CRPS Cable Information 24-Pin Main motherboard PCIe 6+2 pin X2 GPU 8-Pin CPU PCIe 6+2 pin X2 GPU 8-Pin CPU molex 4pin X2 expansion 4+4-Pin CPU molex 4pin X2 expansion PCIe 6+2 pin X2 GPU SATA 15pin X3 internal HDD PCIe 6+2 pin X2 GPU PMBus...
  • Page 12: Connecting Cables

    2.4 Connecting Cables Connecting LED Cable, Front Control Panel Refer to your motherboard user guide for pin functions and locations, and then plug the connectors to the pins on the motherboard to activate the functions. USB 3.0 Connector Name Abbreviation Color Front I/O Indication Power Switch...
  • Page 13: Installing The Slide Rail

    2.5 Installing the Slide Rail The IW-RL200 is a rackmount model, which supports EIA-RS310D standard cabinets and chassis racks. InWin provides standard slide rails to allow users to mount the chassis onto the cabinets. Step 1: Release and detach the inner member from the slide.
  • Page 14 2.5 Installing the Slide Rail Step 4: (1) CAUTION! Verify ball bearing retainer is locked forward. (2)Horizontally install system half way into slide rail. Step 5: Slide release tab and pushs system into rack.
  • Page 15: Compatibility Lists

    InWin’s chassis. You can download the latest updated device compatibility list from InWin’s website: ipc.in-win.com. Technical Support If you need help with installation or troubleshooting, you can contact your local InWin reps, or send an e-mail to InWin’s local contacts for technical assistance.
  • Page 16 Co py r ig ht © I n W in D eve lo p m ent I n c . A l l Ri g ht s Res e r ved .
