Summary of Contents for InWin Chopin Pro
- Page 1 User Manual...

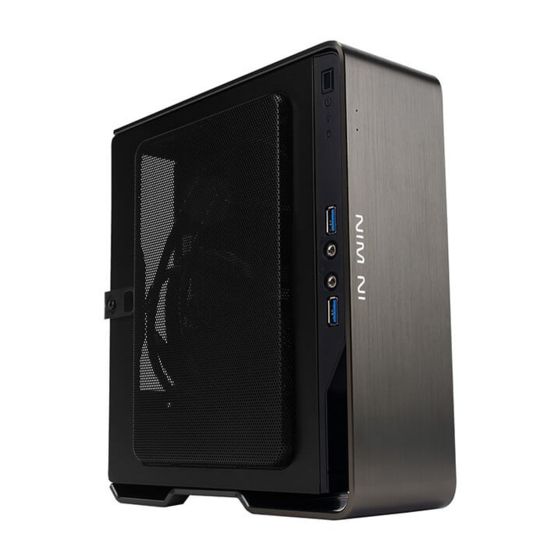

- Page 2 8. HDD Indicator 2 x USB 3.0 I/O Ports HD Audio Package Content 1. Chopin Pro chassis x 1 4. Accessories Bag x 1 Thermal Solution CPU Heatsink up to 43mm 2. QR Code Card x 1 a. Motherboard Screws x 4 3.
- Page 3 User Manual˙English 1.Remove the Left Panel 2.Motherboard Installation 3.Remove the Right Panel Parts Required: Motherboard Screws 4.Internal 2.5" Drive Installation 5.Complete the installation Parts Required: 2.5" HDD Screws...
- Page 4 User Manual˙English Switch/LED Connector 2 Black(HDD LED +) Black(P LED +) 1 4 Black(HDD LED -) Black(P LED -) 3 6 NC Black(P SW +) 5 8 NC Black(P SW -) 7 Key 9 10 NC Notices and Warranty ■ Notices 1.
- Page 5 Copyright © 2021 In Win Development Inc. All Rights Reserved.
