Summary of Contents for Outsunny 846-166V70BK

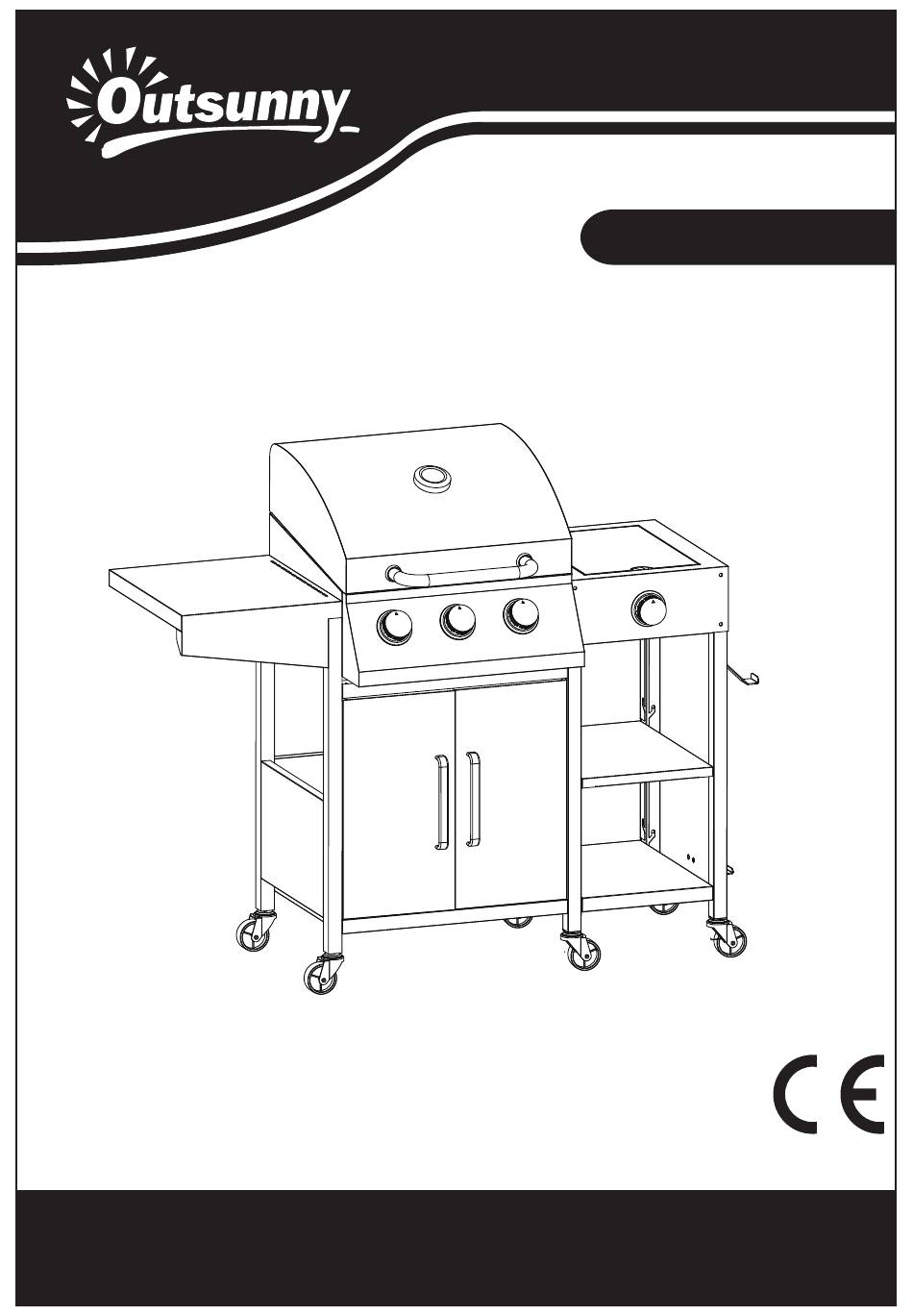

- Page 1 IN241200261V01_UK 846-166V70BK WN-01JY03-F IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
- Page 2 WARINING Read the instructions before using the appliance. Follow the steps in the order specified and please observe the safety warnings. Failure to observe these instructions can affect or damage the device and other objects and lead to personal injury. These instructions are part of the product.
- Page 3 Take special care not to light any naked flames, do not smoke or switch on electric appliance (devices, lights, door bells), etc (spark over possible). Before each use, check to ensure that all connections through which gas is supplied are sealed ...
- Page 4 disconnected. Do not use the BBQ on a surface that may be damaged by excessive heat. This is a gas appliance. Do not use any other type of fuel / accelerants or lava rock. CAUTION KEEP OUT OF REACH OF CHILDREN and PETS DURING and AFTER USE. ...
- Page 5 Please read these instructions carefully before assembly and use. Caution: Whilst every effort has made in manufacture of your barbecue to remove sharp edge, you should handle all components with care to avoid accidental injury. Safety and Care Advice Important! Please read this instructions fully before using the appliance Retain these instructions for future reference.
-
Page 6: Installation
bottled gas. Propane bottles, will supply gas all year round, even on cold winter days. Butane bottles will supply sufficient gas in summer, but it may affect the performance of the barbecue and restrict the heat output available from the burners, particularly once the gas temperature starts to fall below +10°C. A spanner may be required to change gas bottles. -
Page 7: Operation
next to the barbecue and safely away from any source of heat. Should you need to install or change the gas bottle, confirm that the barbecue is switched off, and that there are no sources of ignition (cigarettes, open flame, sparks, etc.) near before proceeding. Fixing a Regulator to the Gas Bottle Confirm all barbecue control knobs are in the off position. -
Page 8: Grill Cooking
Grill Cooking The burners heat up the flame tamer underneath the grill, which in turn heats the food on the grill. The natural food juices produced during cooking fall onto the hot flame tamer below and vaporise. The subsequent rising smoke bastes the food, as it travels upwards, imparting that unique barbecued flavor. -
Page 9: Care And Maintenance
DO NOT REMOVE THE DRIP TRAY. If the fire does not seem to be abating or appears to be worsening, contact your local Fire Brigade for assistance. End of Cooking Session After each cooking session, turn the barbecue burners to the “high” position and burn for 5 minutes. This procedure will burn off cooking residue, thus making cleaning easier. -
Page 10: Cooking Surfaces
required. To prevent rusting, wipe chrome plated parts with cooking oil after rinsing and drying. Cooking Surfaces When the barbecue has cooled, clean with hot soapy water. To remove any food residue, use a mild cream cleaner on a non-abrasive pad. Do not use scouring pads or powders as they can permanently damage the finish. -
Page 11: Part List
PART LIST 16 17 18 19 -11-... - Page 12 M4*6 M5*12 M5*15.5 M6*16 M3*10 -12-...
- Page 13 Assembly Note: Please do not tight the screws and nuts till all assembly steps completed. -13-...
- Page 14 -14-...
- Page 15 B:M5*12 screw -15-...
- Page 16 B:M5*12 screw Note: make sure the 8pcs screws are pre-assembled before sliding. -16-...
- Page 17 -17-...
- Page 18 -18-...
- Page 19 -19-...
- Page 20 NOTI CE In order to succeed in lighting the side burner, make sure the ignition needle's head is directed at one of side burner's gas hole. -20-...
- Page 21 -21-...
- Page 22 -22-...
- Page 23 Tight all screws before use Assembly completed -23-...
- Page 24 Model: WN-01JY03-F IMPORTER ADDRESS: MH STAR UK LTD Unit 27, Perivale Park, SKU: 846-166V70BK Horsenden lane South Perivale, UB6 7RH MADE IN CHINA PRODUCT: Outdoor gas grill Manufacturer: Butane: 691 g/h Gas consumption NINGBO XINWEI METAL PRODUCTS CO., LTD. Propane: 678 g/h Address: No.
- Page 25 IMPORTER ADDRESS: Importador/REP: MH STAR UK LTD Spanish Aosom, S.L. Unit 27, Perivale Park, C/ Roc Gros, nº 15. 08550, Els Hostalets de Balenyà, Horsenden lane South Spain. Perivale, UB6 7RH B66295775 MADE IN CHINA HECHO EN CHINA Importé par/REP : MH France 2, rue Maurice Hartmann 92130 Issy-les-Moulineaux...
