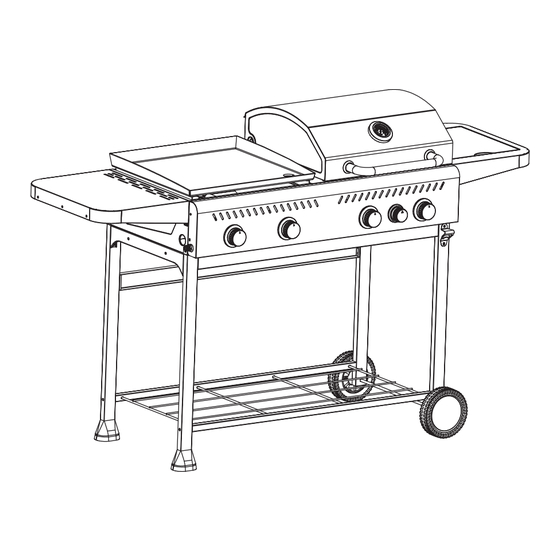

- Page 1 IN231100418V01_UK 846-137V70 Operating Instructions for Outdoorgas Grill THIS GAS GRILL IS DESIGNED FOR OUTDOOR USE ONLY IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTIONS...
-
Page 2: For Your Safety
FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT. Warnings: Only to be used outdoors. Read the instructions before using the appliance. Accessible parts maybe very hot, keep young children away. Do not move the appliance during use. Turn off the gas supply at the gas cylinder after use. -
Page 3: Technical Data
1.Technical data Zhejiang Xiangguo Leisure products Co., Ltd Product name: Outdoor gas Grill No.26, Shanyan Road, Lijin Hardware technology Pin Number: 2531DO-0026 Industrial Park, Lishui, Zhejiang, China Serial Number: www.kangdaooutdoor.com MainBurner Side Burner GC07080812E2-SB Country of Destination Appliance Category Gas and Supply Pressure Injector Size InjectorSize... -
Page 4: Energy Saving Tips
Energy saving tips: a)Reduce the opening time of the lid. b)Turn the grill off as soon as cooking is completed. c)Preheat the gas grill for 10 to 15 minutes only. (Except for the first use) d)Do not preheat longer then recommended. e)Do not use a higher setting than required. -
Page 5: Warning And Safety Points
How to disconnect a gas bottle a)Turn the orange cap so that the arrow is pointing to the gap in the shroud. b)Remove the orange safety cap by pulling the lanyard out, then out. Do not use tools. Leave the cap hanging. c)Check that the black sealing washer is fitted inside the cylinder valve. -
Page 6: Safety Precautions
m)Any modification of the appliance may be dangerous. Do not attempt any unauthorized interference of the main controls on this gas grill, i.e. gas taps, injectors, valves etc. Figure 4 WARNING The Handle Black Area (See Above Picture for Reference) Will Become Hot When the Gas grill In Use, BE CAREFUL! Do Not Touch The Black Area. - Page 7 Figure 5 WARNING For Your Safety This grill has been made to high quality standards. NOTE: The use and installation of this product must conform to local codes. IMPORTANT NOTICE: read all instructions prior to assembly and use. Read and understand all warnings and precautions prior to operating your grill. CAUTION 1.
-
Page 8: Cleaning Instructions
8. Storage Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not being used. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas bottle from your gas grill. - Page 9 Electrical issues: 1.Replace electrode. 1. Electrode cracked or broken;” 2.Tip of electrode should be pointing toward sparks at crack.” port hole in burner. The distance should be 2. Electrode tip not in proper position 1/8” to 3/16”. Adjust if necessary. 3.
- Page 10 10. Gas grill Safety Hints Stand your gas grill on a safe level surface, away from inflammable items such as wooden fences or overhanging tree branches. Never use your gas grill indoors! Once lit do not move your gas grill or leave it unattended. Keep children and pets at a safe distance from the gas grill.
- Page 11 GC07080812E2-SB *1(LF) *1(LB) *1(RF) *1(RB) *1(R) *1(L) 24 *1 25 *1 26 *1 27 *1 M5-55*4 M5-12*20 D *2 F *4 M6-12*22 G M4-8*10...
- Page 12 4PCS 8PCS 2PCS 8PCS 2PCS...
- Page 13 4PCS 4PCS 4PCS 2PCS...
- Page 14 2PCS 2PCS 10PCS 2PCS...
- Page 15 2PCS 2PCS...
