Mercia Garden Products 12PTGAZHP0303-V1 Manual

3m x 3m pressure treated hip roof gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
2mm Drill bit
Pressure Treated Timber
Your product has been pressure treated.
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a land ll.
PLEASE SCAN HERE:
x2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12PTGAZHP0303-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 12PTGAZHP0303-V1

Summary of Contents for Mercia Garden Products 12PTGAZHP0303-V1

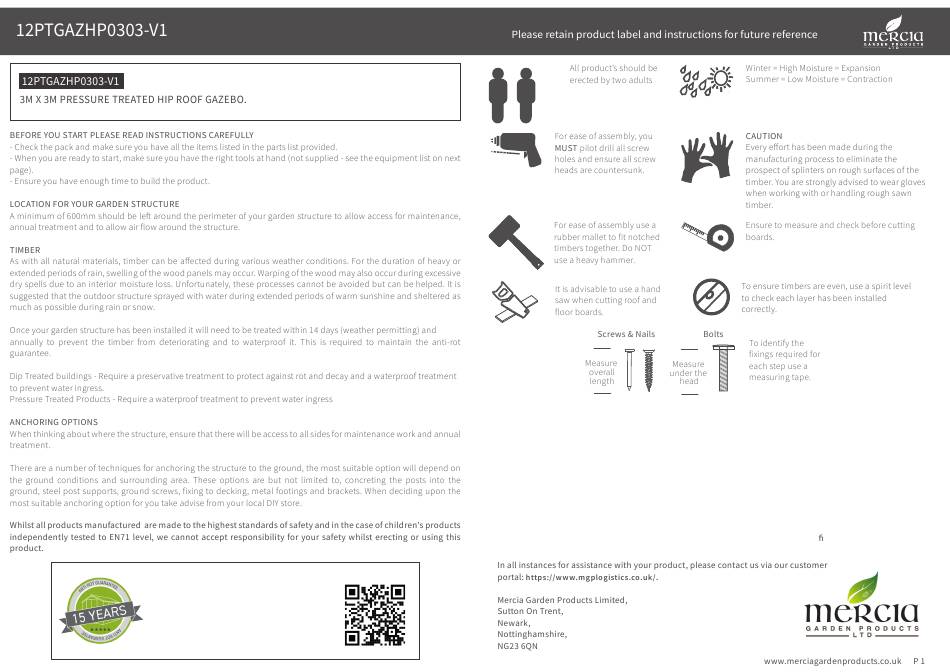

  • Page 1 2mm Drill bit Pressure Treated Timber Your product has been pressure treated. Pressure treating is a chemical process which helps to protect wood against adverse weather which could lead to rot or insect damage. The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ), Copper Azole (CA), and Micronized Copper Quaternary (MCQ).

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 Before assembly please make sure you have a suitable base ready to erect your building Left Roof Truss - 40x160x1000mm QTY 4 AI-12GAZHP3LRT-V1 Right Roof Truss - 40x160x1000mm QTY 4 MADE IN GREAT BRITAIN AI-12GAZHP3RRT-V1 Overall Dimensions: Base Dimensions: Width = 3406mm Width = 3000mm Depth = 3406mm Depth = 3000mm...
  • Page 4 Panels and Rails. Layout Inspiration. The rails and panels can be arranged in a variety of di erent con gurations. See below for some potential If you have purchased any panels or rails with your Gazebo, please follow the instructions to assemble layouts.
  • Page 5 Step 1 Pre-Assembly. 3000mm Anchoring techniques. Before beginning assembly make sure To ensure the longevity and structural integrity of your gazebo, the posts need to be securely and safely anchored 2810mm you have chosen the base type and to the ground / your chosen base. anchoring method that is most suitable for you, see ‘Pre-assembly’...
  • Page 6 Step 2 Step 1a - Panels and Rails IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 4 Before beginning assembly make sure you have chosen the base type and Using the anchoring method that is most 3000mm anchoring method that is most suitable suitable for your base, if you have not yet for you, see ‘Pre-assembly’...
  • Page 7 Step 2a - Panels and Rails Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 4 Parts Needed - No. 2 QTY 2 No. 13 Once upright posts Using the anchoring method that is most anchored, the rest of the Gazebo suitable for your base, if you have not yet can be constructed.
  • Page 8 Step 5 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 4 QTY 8 Parts Needed - No. 3 QTY 2 Locate one Corner Brace (No.4) ush Locate the Cross Beam B’s (No.3) in to the side of the Upright Post (No.1) between the Cross Beam A’s (No.2) and the underside of the Cross Beam...
  • Page 9 Step 7 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 6 QTY 2 Parts Needed - No. 6 QTY 2 No. 10 QTY 1 Locate the remaining Truss A’s (No.6) Locate one Truss A (No.6) ush to the ush to the available sides of the Roof Block (No.10) ensuring there is 40mm side of the Roof Block (No.10)
  • Page 10 Step 9 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 7 QTY 2 Parts Needed - No. 7 QTY 2 Locate one Truss B (No.7) in between Locate the remaining Truss B’s (No.7) in the Truss A’s (No.6) ensuring the faces between the Truss A’s (No.6) ensuring ush and that there is 40mm...
  • Page 11 Step 12 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 11 QTY 1 Parts Needed - No. 8 QTY 4 No. 12 QTY 1 No. 9 QTY 4 Slot the Underside Support B Locate one Left Roof Truss (No.8) (No.12) into the Underside Support and one Right Roof Truss (No.9)
  • Page 12 Panel and Rail Assembly. If you have purchased any panel or rails with your Gazebo, please follow the below instructions to assemble onto your Gazebo. Please note: If you have purchased more than one rail or panel, you will receive one ‘Post Kit’ for every two panels or rails purchased.
  • Page 13 Step 15 Full Panel. IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 18 Step 14 Locate the second Panel (No.18) Parts Needed - No. 18 on top of the previously secured panel, ensuring the faces and Before assembling please decide sides are ush.
  • Page 14 Rails. IMPORTANT: Pre-drill before xing screws. Step 16 Parts Needed - No. 14, 15 or 16. Before assembling please decide where you want your rails to be positioned. Locate the Rail (No.14, 15 or 16) ush up to the inside edge of the corner post next to where you want the panel to sit.
  • Page 15 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 18 REGISTER FOR YOUR PLEASE SCAN HERE: ANTI-ROT GUARANTEE TODAY...
