Mercia Garden Products 12PTPEG0304-V1 Manual

3m x 4m pressure treated pergola
Hide thumbs

Advertisement

Quick Links

Download this manual
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
2mm Drill bit
Pressure Treated Timber
Your product has been pressure treated.
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a land ll.
PLEASE SCAN HERE:
x2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 12PTPEG0304-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 12PTPEG0304-V1

Summary of Contents for Mercia Garden Products 12PTPEG0304-V1

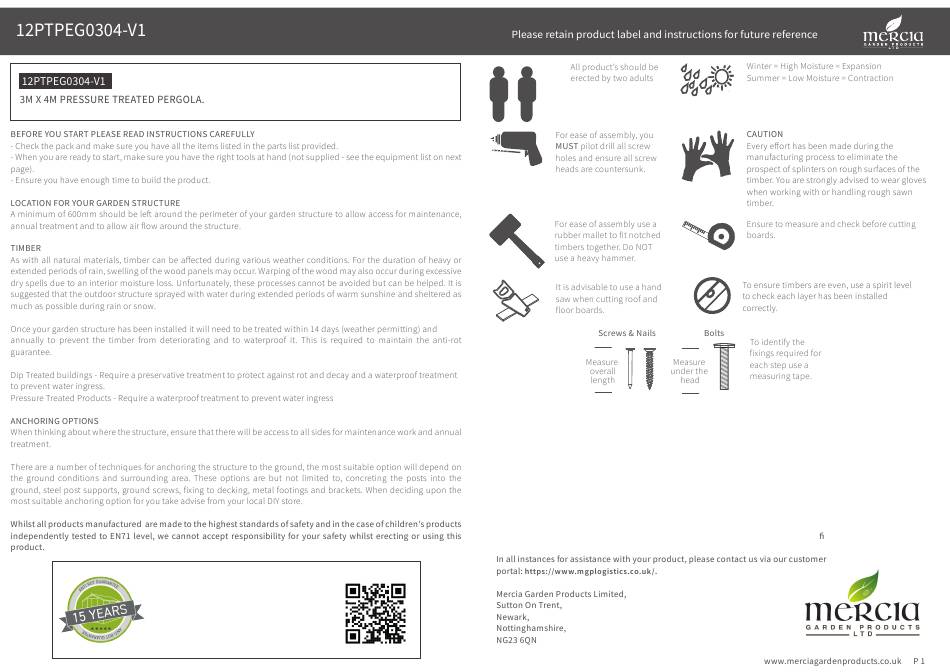

  • Page 1 2mm Drill bit Pressure Treated Timber Your product has been pressure treated. Pressure treating is a chemical process which helps to protect wood against adverse weather which could lead to rot or insect damage. The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ), Copper Azole (CA), and Micronized Copper Quaternary (MCQ).

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 Panels and Rails. Before assembly If you have purchased any panels or rails with your Gazebo, please follow the instructions to assemble please make sure you have a suitable base ready to erect your the Gazebo and refer to the ‘Panels and Rails’ instructions when relevant. building Please note: If you have purchased more than one 1.5m rail or panel (for the 3M side), you will receive one ‘Post Kit’...
  • Page 4 Layout Inspiration. 2m Rails: 2m Panels: The rails and panels can be arranged in a variety of di erent con gurations. See below for some potential layouts. Please decide which way you want to arrange your panels and rails before beginning assembly. Framed Rail - 120x1857x804mm 12PTFRMRWC1857X804-V1 Panel with Cap - 120x1857x1136mm...
  • Page 5 Step 1 Pre-Assembly. Anchoring techniques. Before beginning assembly make sure 3000mm To ensure the longevity and structural integrity of your Pergola, the posts need to be securely and safely anchored to you have chosen the base type and the ground / your chosen base. anchoring method that is most suitable 2810mm for you, see page 5 for guidance.
  • Page 6 Step 2 Step 1a - Panels and Rails Parts Needed - No. 1 QTY 4 Before beginning assembly make sure No. 2 QTY 2 3000mm you have chosen the base type and anchoring method that is most suitable Using the anchoring method 1357.5mm 1357.5mm for you, see ‘Pre-assembly’...
  • Page 7 Step 3 Step 2a - Panels and Rails IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 3 QTY 2 Step 2 Once upright posts Parts Needed - No. 1 QTY 4 anchored, the rest of the Pergola can No.
  • Page 8 Step 4 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 4 QTY 2 Parts Needed - No. 4 QTY 6 Locate the Cross Beam B’s (No.4) Locate the remaining six Cross Beam B’s into the end notches of the Cross (No.4) into the central notches of the Beam A’s (No.3) on either side of the...
  • Page 9 Step 6 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 5 QTY 12 Parts Needed - No. 6 QTY 24 Locate one Corner Brace (No.5) ush Position the Cover Strips (No.6) ush to the side of the Upright Post (No.1 to the bottom of the Upright Posts or 2) and the underside of the Cross...
  • Page 10 Panel and Rail Assembly. If you have purchased any panels or rails with your pergola, please follow the instructions to assemble the pergola and refer to the ‘Panels and Rails’ instructions when relevant. Please note: If you have purchased more than one 1.5m rail or panel (for the 3M side), you will receive one ‘Post Kit’ for every two panels or rails purchased.
  • Page 11 Step 10 Full Panel. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 11 and/or 16 Step 9 Locate the second Panel (No.11 Parts Needed - No. 11 and/or 16 or 16) on top of the previously secured panel, ensuring the faces Before assembling please decide and sides are ush.
  • Page 12 Rails. IMPORTANT: Pre-drill before xing screws. Step 11 Parts Needed - No. 7, 8 and/or 9. No. 12, 13 and/or 14. Before assembling please decide where you want your rails to be positioned. Locate the Rail (No.7, 8, 9, 12, 13 and/or 14) ush up to the inside edge of the corner post next to where you want the panel to sit.
  • Page 13 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 16 REGISTER FOR YOUR PLEASE SCAN HERE: ANTI-ROT GUARANTEE TODAY...
