Mercia Garden Products 10DTBARK0804-V1 Manual

Hide thumbs Also See for 10DTBARK0804-V1:
Table of Contents

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10DTBARK0804-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 10DTBARK0804-V1

Summary of Contents for Mercia Garden Products 10DTBARK0804-V1

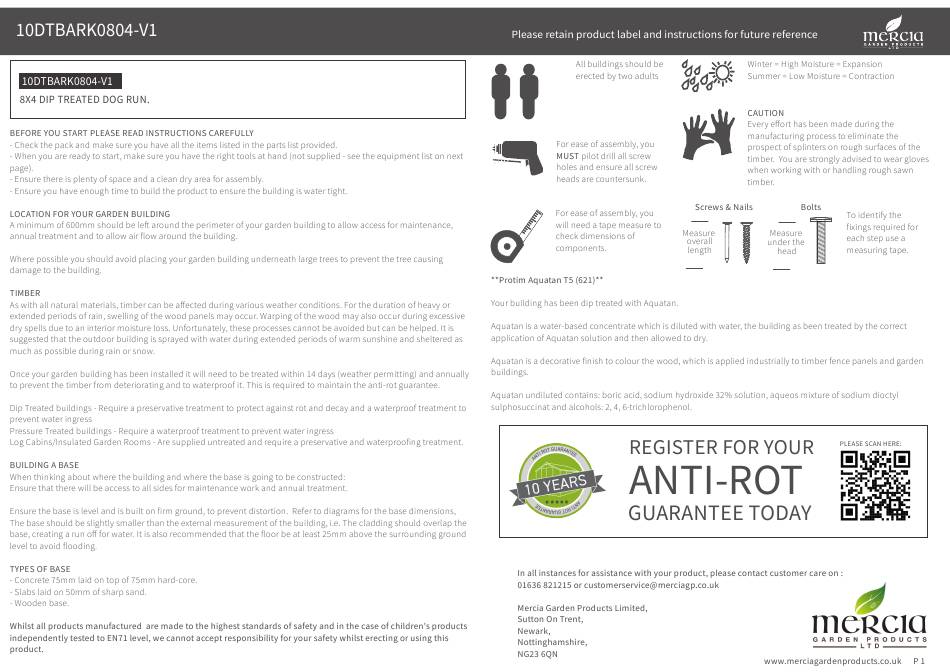

  • Page 1 2mm Drill bit...
  • Page 3 10x4 12x4 Overall Dimensions: Overall Dimensions: Overall Dimensions: Width = 2330mm Width = 2896mm Width = 3483mm Depth = 1252mm Depth = 1252mm Depth = 1252mm Height = 1256mm Height = 1256mm Height = 1256mm Base Dimensions: Base Dimensions: Base Dimensions: Width = 2258mm Width = 2823mm Width = 3388mm...
  • Page 4 Pack B Nail Bag 70mm Screw x25 *If you have purchased a 12x4 building then you will have double the amount of 30mm Screw x198 each item in pack B* 50mm Screw x76 20mm Screw x44 Felt Tacks x105 40mm Screw x98 Small Back Panel QTY 1 AI-10BARK564X974-V1SBP Mesh Panel QTY 1...
  • Page 5 Step 1 Step 3 IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 17 QTY 2 IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 1 QTY No. 18 QTY 1 No. 19 QTY 1 Fix the Door Panel (No. 1) with 3x40mm scews.

  • Page 6: Table Of Contents

    Step 7 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 6 QTY 1 Parts Needed: No. 3 QTY 2 No. 8 QTY 1 Place the Left Gable (No. 6) into position and secure with 3x40mm screws per side. Fix the remaining Back Panel (No.

  • Page 7: Step 5 Important: Pre-Drill Before Xing Screws

    Step 9 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 9 QTY 2 No. 16 QTY 4 Fix the building to the Base Framing with 50mm screws evenly spaced. Fix the Eaves Frames (No. 16) to the back and front of the Roof OSB (No.

  • Page 8: Parts Needed: No. 3 Qty 1

    10x4 Run With Extension (Pack A + Pack B) Step 14 IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 7 QTY 1 IMPORTANT: Pre-drill before xing screws. Step 12 Place the Central Gable (No. 7) into posi- Parts Needed: No. 17 QTY 1 tion and secure with 3x40mm screws per No.

  • Page 9: Do Not X To The Base Framing Until

    IMPORTANT: Pre-drill before xing screws. Step 16 Step 18 IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 9 QTY 2 Parts Needed: No. 26 QTY 1 No. 27 QTY 1 No. 16 QTY 4 No. 24 QTY 1 Fix the Roof Blocks (No. 27) to the framing No.
  • Page 10 Step 20 Step 22 IMPORTANT: Pre-drill before xing screws IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 22 QTY 2 No. 23 QTY 2 Fix the building to the Base Framing with 50mm screws evenly spaced. Fix a Back Panels (No. 22) and the Mesh Panels (No.
  • Page 11 Step 26 IMPORTANT: Pre-drill before xing screws. Step 24 IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 21 QTY 1 Parts Needed: No. 3 QTY 1 No. 6 QTY 1 Fix the Centre Framing (No. 21) to the No. 8 QTY 1 Centre Gable with 3x40mm screws.
  • Page 12 Step 28 **The following steps are applicable to all buildings.** IMPORTANT: Pre-drill before xing screws. Step 30 Fix the assembled roof panels to the building with 12x30mm screws per roof sheet. Cut the roof felt provided into equal lengths making sure that there is 50mm of **Do NOT x to the base framing until the overhang on both sides.
  • Page 13 IMPORTANT: Pre-drill before xing screws. Step 33 Step 31 IMPORTANT: Pre-drill before xing screws. Parts Needed: No. 14 QTY 4 Parts Needed: No. 2 QTY 1 No. 11 QTY 3 Fix the Fascias (No. 14) to the building To x the kennel Door to the building, with 3x30mm screws per Fascia.
  • Page 14 IMPORTANT: Pre-drill before xing screws. Step 35 Parts Needed: No. 12 QTY 4 No. 13 QTY 2 Fix a Pad Bolt (No. 13) to each door. make sure to screw through the Door framing. Use 8x20mm screws to attach to the Door/Mesh Door and 4x30mm screws to attach the Pad Bolt catch to the building.
