Mercia Garden Products 0644AXUPVC403HGDD1SW-V1 Manual

Upvc 44mm 4m x 3m apex log cabin
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 0644AXUPVC403HGDD1SW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 0644AXUPVC403HGDD1SW-V1

Summary of Contents for Mercia Garden Products 0644AXUPVC403HGDD1SW-V1

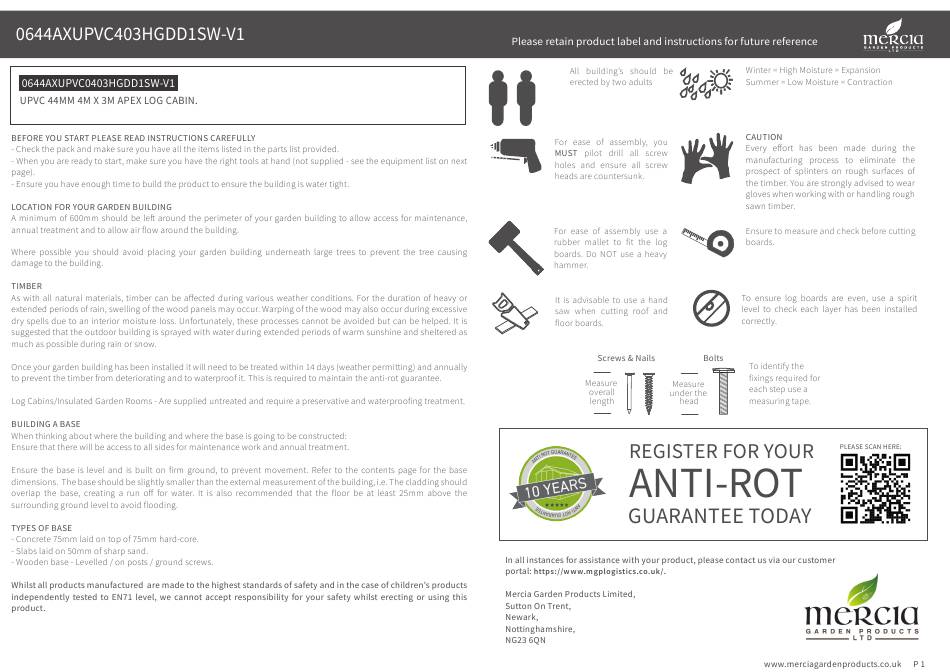

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 Tip: Labelling your parts, using a pencil and masking tape, Before assembly PLEASE SCAN HERE: ANY QUESTIONS? please make sure you have a may help you to identify them easier when you need them. suitable base ready to erect your Scan code building...
  • Page 4 Fixing Kit Contents: Door Contents: Floor Bearer - 44x58x2814mm QTY 2 F4458-2814mm-PT Floor Bearer - 44x58x3702mm QTY 10 F4458-3702mm-PT Glass 521mm x 1071mm QTY 2 Purlin - 45x120x3396mm QTY 3 PI-19-0145 F45120-AE-3396mm Roof Board - 16x121x2114mm QTY 64 MB16-2114mm UPVC Double Doors QTY 1 (Morticed for lock) PI-19-0119 White PI-19-0120 Oak...

  • Page 5: Window Contents

    Pre-assembly Window Contents: *Please note: Each board interlocks at either end in a staggered pattern. Before securing ensure that the boards are tted properly in their respective tongue’s and groove’s. Glass 504mm x 1036mm QTY 1 UPVC Window QTY 1 PI-19-0147 PI-19-0125 White PI-19-0126 Oak...
  • Page 6 Step 2 Step 1 PLEASE SCAN HERE: Parts Needed - No. 13 QTY 2 Parts Needed - No. 14 QTY 8 No. 14 QTY 2 Following the same method shown in the previous step, arrange the remaining bearers (No. 14) inside the Lay the bearers (No.
  • Page 7 Step 3 Step 4 Parts Needed - No. 1 QTY 2 Parts Needed - No. 2 QTY 12 No. 2 QTY 2 No. 3 QTY 6 No. 4 QTY 6 Place the starter boards (No.1) on to the front and back of the assembled bearers and lightly position the rst No.
  • Page 8 Step 5 Step 6 Parts Needed - No. 28 QTY 1 No. 29 QTY 1 Once you have laid 6 log boards (o of the starter board) up the door section, slide the No. 30 QTY 1 assembled door frame over the boards, ensuring to rest the frame on top of the starter board. If No.
  • Page 9 Step 7 Step 8 Parts Needed - No. 37 QTY 1 Parts Needed - No. 2 QTY 12 No. 3 QTY 6 Once you have laid 6 log boards up the window section, slide the assembled Window frame No. 5 QTY 12 No.
  • Page 10 Step 9 Step 10 Parts Needed - No. 10 QTY 2 Parts Needed - No. 2 QTY 6 No. 23 QTY 4 No. 3 QTY 6 No. 5 QTY 12 Lay the Log Boards (No. 10) onto a at and level surface and locate one Vent (No.23) into each vent hole, as No.
  • Page 11 Step 11 Step 12 Parts Needed - No. 3 QTY 1 Parts Needed - No. 12 QTY 2 No. 7 QTY 1 No. 11 QTY 2 Following the method shown in the illustration, locate the Gables (No. 12) onto the front and back of the log cabin.
  • Page 12 Step 13 Step 14 Parts needed - No. 15 QTY 3 Parts needed - No. 16 QTY 64 No. 25 QTY 5 Align the Purlins (No.15) into the cut out notches on the Gables, ensuring they interlock. Place the rst two roof boards (No. 16) onto either side of the log cabin, making sure the boards are ush to the end of the roof purlin.
  • Page 13 Step 15 Parts Needed - No. 18 QTY 2 Ensuring the roof boards are ush and level, locate the Eaves Frames (No. 18) to the underside of the roof boards on either side of the log cabin. Secure in place using 7x30mm screws per frame, as shown in the illustration.
  • Page 14 Step 16 Parts Needed - No. 26 QTY 1 No. 32 QTY 1 No. 33 QTY 2 No. 35 QTY 1 No. 42 QTY 1 The cill (No. 32) for the bottom of the doors will be slightly larger than required, this will require cutting to size before tting.
  • Page 15 Step 17 Parts Needed - No. 26 QTY 1 No. 32 QTY 1 No. 35 QTY 1 No. 36 QTY 1 No. 42 QTY 1 Apply beads of clear silicone (No. 35) along the at face of the cill (No. 32), along the front, back and both sides.
  • Page 16 Step 18 Parts Needed - No. 33 QTY 2 No. 35 QTY 1 No. 38 QTY 1 No. 40 QTY 1 No. 42 QTY 1 The cill (No. 40) for the bottom of the windows will be slightly larger than required, this will require cutting to size before tting.
  • Page 17 Step 19 Parts Needed - No. 35 QTY 1 No. 36 QTY 1 No. 38 QTY 1 No. 40 QTY 1 No. 42 QTY 1 Apply beads of clear silicone (No. 35) along the at face of the cill (No. 40), along the front, back and both sides.
  • Page 18 Step 20 Parts Needed - No. 27 QTY 2 No. 39 QTY 2 No. 42 QTY 1 Internally on the UPVC doors (No. 26) there is beading attached which holds the glass (No. 27) in place once tted. Remove the four pieces of beading, you may need to use a scraper between the beading and the frame to prise them o .
  • Page 19 Step 21 Step 22 Parts Needed - No. 17 QTY 35 Parts needed - No. 21 QTY 5 Place the rst oor board (No. 17) inside the building ush to the log board on one side. Continue adding Inside the building place the closure trim (No. 21) against the boarding and align with the roof as shown in the oor boards (internally) making sure to interlock each individual board.
  • Page 20 Step 23 Step 24 Parts needed - No. 21 QTY 6 Parts needed - No. 24 Once the oor has been laid, arrange the closure trim (No. 21) around the outside edge of the oor Cut the felt (No. 24) into ve strips measuring: 3500mm (L) X 1000mm (W) and lay onto the roof in the order (internally), measure and cut down accordingly to best match the internal space.
  • Page 21 Step 25 Step 26 Parts Needed - No. 34 QTY 1 Parts Needed - No. 19 QTY 2 No. 41 QTY 1 No. 20 QTY 4 Attach the Fascias (No. 19) to the sides of the log cabin (ensuring to trap the felt in between the fascias) Attach the Rain Guard (No.
  • Page 22 Step 28 Step 27 Parts needed - No. 22 QTY 8 Once constructed, apply a preserving and a waterproo ng treatment to your garden building as soon as Arrange the storm braces (No.22) around the building (internally), placing two storm braces per wall. possible.
  • Page 23 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 25 Problem: Doors catching on the frame - sides. If your door is catching on the adjacent door or side frames, your doors need adjusting to the left or right: Unlock the doors and open. When open, you can see the back of the hinges, (if the doors open outwards this will be inside) where there are two screws inside the hinge.
  • Page 26 Problem: Doors catching on the frame - top or bottom. If your door is catching on the top or bottom frame, your doors need moving up or down. Unlock the doors and open. On the front of the doors, locate the part of the hinge that is attached to the frame, on the underside there are two small holes.
  • Page 27 Problem: Gaps, draughts, excessive movement between doors and framing: If your doors are rattling or have excessive movement, the internal latch needs to be adjusted. Unlock the doors and open. Locate the latch on the inside of the secondary door or framing, with screws above and below it.
  • Page 28 Problem: Windows not staying open. If your window is not staying open on its own, you may need to adjust the friction stays. Unlock and open the window - ensure to hold window open manually. Locate the friction stay on the inside of the window Use a screwdriver to tighten the screw by turning clockwise.
