Mercia Garden Products 10DTSHAX0806-V1 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10DTSHAX0806-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 10DTSHAX0806-V1

Summary of Contents for Mercia Garden Products 10DTSHAX0806-V1

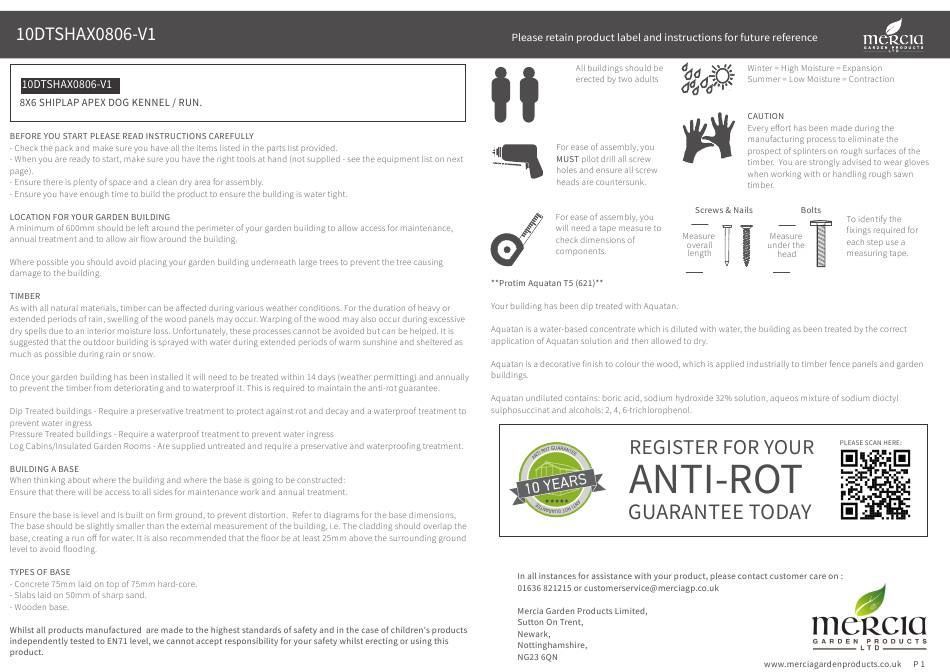

  • Page 1 2mm Drill bit...
  • Page 3 PI-07-0034 Depth = 2458mm Depth = 2386mm Height = 2054mm Bearer - 27x44x1119mm QTY 2 8x6 Building Contents: F2744-1119mm 10DTSHAX0806-V1 Ply Triangle QTY 2 Bearer - 27x44x1860mm QTY 3 F2744-1860mm Bearer - 27x44x1135mm QTY 2 Pad Bolt QTY 1 F2744-1135mm...

  • Page 4: Pre-Assembly

    10x6 Building. Nail Bags 10DTSHAX0806-V1 + 10DTSHAX0206PB-V1 There may be extra screws present in the nail bag Overall Dimensions: Width = 2056mm Depth = 2458mm 70mm screws x 32 Height = 2054mm Base Dimensions: 50mm screws x 76 Width = 1888mm...
  • Page 5 Step 1 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 13 QTY 2 Parts Needed - No. 2 QTY 1 No. 14 QTY 2 Place the second Side Panel (No. 2) onto Position the bearers (No.
  • Page 6 Step 5b - EXTENSION PACK B IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 5 Parts Needed - No. 30 QTY 2 Parts Needed - No. 14 QTY 1 No. 15 QTY 2 Locate the Small Mesh Panels (No. 30) on top of the front bearers.
  • Page 7 Step 6 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 6 QTY 2 Parts Needed - No. 4 QTY 2 Locate both Small Mesh Panels (No. 6) Locate both Large Mesh Panel (No. 4) onto the front bearers as shown.
  • Page 8 Step 9 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 24 QTY 2 Parts Needed - No. 10 QTY 1 Locate the Gable Top (No. 10) on top Locate the Ply Triangles (No. 24) of the two Small Mesh Panels (No.
  • Page 9 IMPORTANT: Pre-drill before xing screw Step 10a - EXTENSION PACK B Step 10 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 16 QTY 1 Parts Needed - No. 16 QTY 1 No. 17 QTY 1 No. 17 QTY 1 No.
  • Page 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 11 Step 12 Parts Needed - No. 19 QTY 2 Parts Needed - No. 11 QTY 4 No. 26 QTY 2 Locate the Support Framing (No.19) ush Place the Roof Panels (No.11) on top of with the front of the Gable Top (No.10) the building, making sure the framing in the roof panels sits rmly within the...
  • Page 11 IMPORTANT: Pre-drill before xing screws. Step 12a - EXTENSION PACK B Step 12b - EXTENSION PACK B IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 11 QTY 4 Parts Needed - No. 34 QTY 2 No. 26 QTY 2 No.
  • Page 12 Step 12c - EXTENSION PACK B IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 13 Parts Needed - No. 35 QTY 2 Fix the Roof Panels in place using Position a Truss Block (No.35), up to the 32x40mm screws.
  • Page 13 IMPORTANT: Pre-drill before xing screws. Step 14 IMPORTANT: Pre-drill before xing screws. Step 15 Parts Needed - No. 7 QTY 1 Once the Roof is secure, x the panels to - No. 8 QTY 1 the bearers. - No. 21 QTY 4 - No.
  • Page 14 Step 16 Step 18 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 28 QTY 1 Parts Needed - No. 20 QTY 1 - No. 29 QTY 1 Locate the Door Strip (No.20) to the Cut the Felt (No.28) into two strips inside of the Door Panel on the opposite side to the hinges.
  • Page 15 Step 20 Step 19 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 12 QTY 4 Parts Needed - No. 5 QTY 1 - No. 27 QTY 2 - No. 21 QTY 3 - No. 23 QTY 2 Attach the Fascias (No.
  • Page 16 It is ESSENTIAL that you apply wood treatment immediately after the building has been assembled.
