Middle Atlantic Products PB-90 Instruction Sheet

90 degree power mounting bracket

Download this manual

Instruction Sheet

PB-90

90 Degree Power Mounting Bracket

THANK YOU

Thank you for purchasing the PB-90, 90 Degree Power Mounting Bracket. Please read

these instructions thoroughly before installing this product.

PRODUCT FEATURES

- Provides easier access to power outlets

- Mounts power strips so outlets face the front or back of the rack

- Works with MPR, PD and PDT Series vertical power

I-00225

Rev B

Need help?

Do you have a question about the PB-90 and is the answer not in the manual?

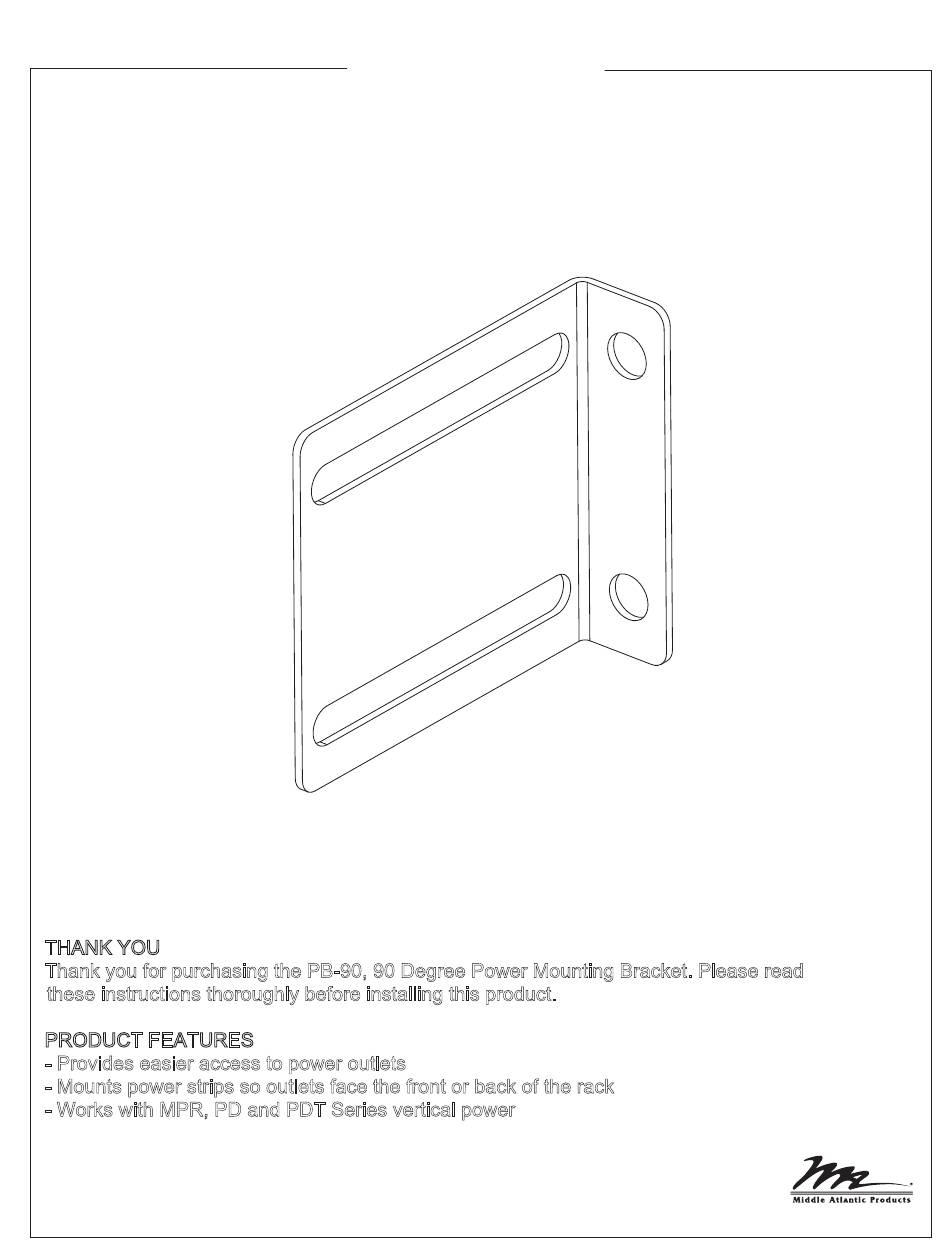

Page 1 Instruction Sheet PB-90 90 Degree Power Mounting Bracket THANK YOU Thank you for purchasing the PB-90, 90 Degree Power Mounting Bracket. Please read these instructions thoroughly before installing this product. PRODUCT FEATURES - Provides easier access to power outlets - Mounts power strips so outlets face the front or back of the rack...
Page 2 RECTANGLE NUT INSTALLATION 1) Loosely attach a Rectangle Nut and Mounting Screw into the top hole of the PB-90. (This allows for adjustment after installation) FIGURE A 2) Insert affixed Rectangle Nut into Adjustable Slot. Adjust PB-90 to desired location.
Page 3 INSTALLATION (QUICK MOUNTING CLIP) 1) Install two clips as shown. After mounting Power Strip, bend tab outward to secure. Bend this tab out INSTALLATION (STANDARD MOUNTING CLIP) 1) Install two clips as shown. Page 3...
Page 4 WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the PB-90 to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and...
