Eastern Jungle Gym Dream Owner's Instruction Manual

Hide thumbs Also See for Dream:

Advertisement

Table of Contents

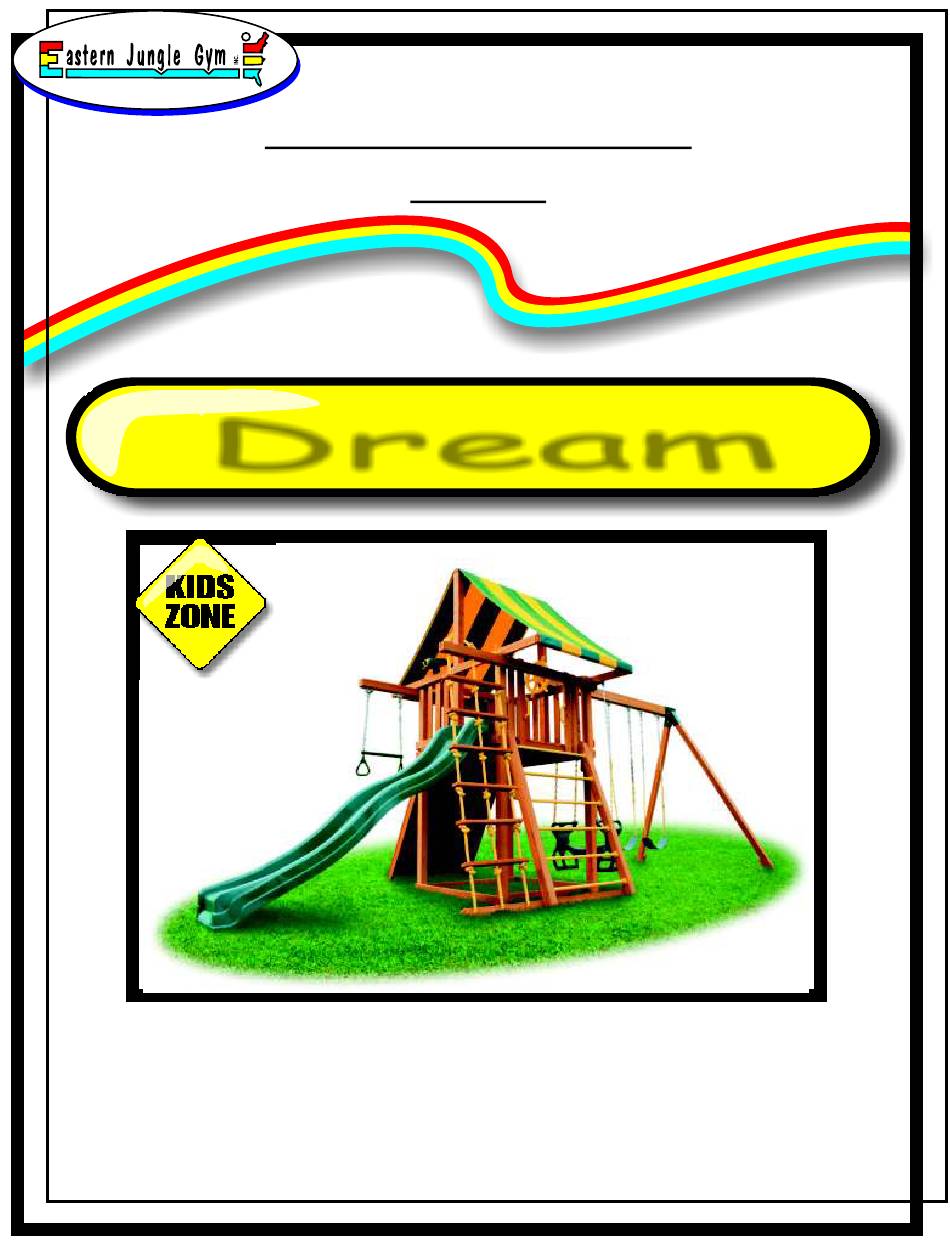

R
"Creating Childhood Memories"
Owners & Instruction
Manual
Dream
This instruction booklet is to be used exclusively for Eastern Jungle Gym
customers only. It is not to be handed out to the general public. Any duplication of
this booklet will be subject to copyright protection and federal laws.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dream and is the answer not in the manual?

Questions and answers

Related Manuals for Eastern Jungle Gym Dream

Summary of Contents for Eastern Jungle Gym Dream

  • Page 1 Manual Dream This instruction booklet is to be used exclusively for Eastern Jungle Gym customers only. It is not to be handed out to the general public. Any duplication of this booklet will be subject to copyright protection and federal laws.
  • Page 2 Jungle Gym properly, safely and more efficiently. A little time now can save you time when your building! If you have any missing parts or damaged material or are having trouble installing your new Eastern Jungle Gym product. Please call Eastern Jungle Gym directly. At 800-752-9787 or Email - Info@easternjunglegym.com...
  • Page 3 “Creating Childhood Memories” Play Safely Instructions 1) Do not let children play on your Eastern Jungle Gym product until it is fully and safely assembled. 2) Go over all safety points with children prior to letting them play. 3) Adult supervision is required for children of all ages.

  • Page 4: Tools Required

    Many parts are heavy and could seriously injure a child. 2) Your ready to start your assembly process. You will need at least two adults to safely and easily assemble your Eastern Jungle Gym. 3) Wear safety glasses when drilling out wood to protect your eyes from flying wood clips.
  • Page 5 “Creating Childhood Memories” Wood Identification 1 @ 2”x4”x20 ” (Slide Block) Part # SB2420 6 @ 2”x4”x26” (Jacobs Ladder Rung) Part # JD2426 2 @ 2”x4”x22 ” (Stakes) Part # GS2422 2 @ 2”x4”x55 ” (Floor Joist) Part # FJ2455 4 @ 2”x4”x 36½”...
  • Page 6 “Creating Childhood Memories” Wood Identification 2 @ 4”x4”x114” (Side Support) Part # SS44114 4 @ 4”x4”x96” (Post) Part # P4496 2 @ 4”x4”x67” (Ladder) Part # LS4467 1 @ 4”x4”x84” (Swing Arm) Part # SA4484 1 @ 4”x4”x84” (Jacobs Top) Part # JT4484 1 @ 4”x4”x84”...

  • Page 7: Hardware Identification

    “Creating Childhood Memories” Hardware Identification (3) 16’ Sections Bag of 12 (6) Heavy Duty Rope Rocks with Hardware Swing Hangers 2 pair Safety Grab Handles (1) 10’ Wave Slide (5) Ladder Rungs 40 7/8” (1) Ring Trap Combo (1) Swing Beam Support Brace (6) Spring Clips (2) Green...
  • Page 8 “Creating Childhood Memories” Hardware B1 - 3/8” X 6½” Hex Head Bolt B2 - 3/8” X 4½” Hex Head Bolt B3 - 5/16” X 5” Lag Bolt B4 - 5/16” X 3” Lag Bolt B5 - 5/16” X 2” Lag Bolt B6 - 2”...
  • Page 9 “Creating Childhood Memories” SPECIAL NOTE BEFORE BEGINNING YOUR ASSEMBLY: All Recessed holes must be piloted with 1/4” drill bit to help minimize splintering. All lag bolts must be accompanied with a washer before driving in lag bolt. Now you are ready to begin assembling!
  • Page 10 Dream GROUND SUPPORT BASE Step #1 GS2455 R2455 R2455 5” R2455 3½ ” Layout ground support base boards. Measure 3½” and 5” in from each corner of both 2 - GS2455 GS2455’s (as shown in photo). 2 - R2455 (as shown in the photo).
  • Page 11 Dream POSTS Assembly Step #2 36½ ” P4496 Measure in 36½” from one side of P4496 posts Layout 4 - P4496 clubhouse post (as shown in the and draw a line (as shown in the photo). Do this photo). to all 4 posts.
  • Page 12 Dream FLOOR Assembly Setup #4 After leveling, fasten 4x4 post to ground support base using 4 - 3” lags (as shown in photo). Position first completed 4x4 First post completed (as shown post into the lowest corner of in photo).
  • Page 13 Dream FLOOR Assembly Setup #4 FJ2455 R2455 R2455 R2455 Countersink Countersink Holes Holes R2455 5” 3½ ” R2455 1 - 3” lag in each corner Measure 3½” and 5” in from each Layout floor joists corner of both GS2455’s (as...
  • Page 14 Dream FLOOR Installation Step #5 Place floor on post teaks that you leveled earlier. At this point all four post and floor should be level. NOTE: Make sure floor orientation match ground support base orientation when placing floor on post.
  • Page 15 Dream SLIDE WALL installation Step #6 SLIDE Wall 20½” 20½” WR2496 R2429 Install top wall rail, WR2496 Place bottom wall rail, R2429 on Install tent support TS4476 to flush with top of post using 2 - 3” floor and install into left post the center of WR2496 and to the lags on each side.
  • Page 16 Dream SOLID WALL installation Step #7 Solid Wall 20½” 20½” WR2496 WR2455 Place bottom wall rail, WR2455 on floor and Install top wall rail, WR2496 flush with top of install to both posts using 2 - 3” lags on each post using side.
  • Page 17 Dream ACTIVITY WALL #1 installation Step #8 Activity Wall #1 R2455 Place rail R2455 from inside clubhouse flush with top of post and install with 2-3” lags on each side. Place wall board WB54432 Place wall board, GH2436 from outside of clubhouse from outside of clubhouse 3½”...
  • Page 18 Dream ROCK WALL assembly Step #9 Counter sink holes face each other Layout 2 - RWJ2470 Rock Wall Start decking your rock wall Continue decking your rock wall using FB54648. Start right using FB54648 until it is joists (as shown in the photo).
  • Page 19 Dream ROCK WALL installation Step #10 Rock wall complete! Place rock wall into back opening. From under the clubhouse Hold top of rock wall flush with top fasten rock wall to post of floor (as shown in photo). using 1 - 3” lag on each side (as shown in photo).
  • Page 20 Dream ACTIVITY WALL #2 installation Step #12 This Application is the same as Activity Wall #1. Activity Wall #2 R2455 Place wall board, R2455 from inside clubhouse flush with top of post and install with 2-3” lags on each side.
  • Page 21 Dream LADDER Assembly Step #13 61” 50” 39” 28” 17” 6” 6” Counter sink holes face each other Counter sink holes face each other Layout 2 - LS4467 ladder rails and Measure from the top which is the Screw the ladder rungs into 5 - Ladder rungs (40 7/8”)
  • Page 22 Dream JACOB’S LADDER TOP RAIL Step #15 Mount JT4484 Jacobs Ladder top rail onto clubhouse using 2 - 5” lags on each side. The JT4484 gets mounted under the wall top rails (as shown in photo). Through holes should be facing the ground and run parallel with the bottom rail mounted on the ladder.
  • Page 23 (as shown in photo) provided on tent top (as shown in photo) Dream JACOB’S LADDER Step #18 Layout 6 - JD2426 Jacob Ladder Thread rope through Jacobs Thread 3 ropes through first Rungs and 3 - ropes (16’ sections)
  • Page 24 Dream SWING BEAM Assembly Step #19 Layout KGB46114 Swing Beam on the ground. Mount horse glider brackets on beam using pre drilled holes located approximately 18” and 33”. from end of beam. Use hardware provided. Once mounted adjust horse glider brackets so they are centered on beam.
  • Page 25 Dream SWING BEAM Installation Step #20 Slide each PL44114 Side Layout 2 - PL44114 Side Slide Swing Beam into the Support leg into the Angled Supports legs and the Angled Angled Side Support Brace. Side Support Brace. Side Support Brace. Installing Installing with 3 - 3”...
  • Page 26 NOTE: If install gang plank ADD ON place slide over ladder previously installed, if not continue to step #21 Gang Plank Dream SLIDE Installation Step #21 Install SB2420 slide block under floor Position slide in slide wall opening (as where slide opening is using 2” screws (as shown in photo) Make pilot holes in the slide with 1/4”...
  • Page 27 Dream Accessory Installation Step #22 Mount Binoculars on ½ wall next Mount Captain Wheel on TS4476 tent support (solid wall side) (as to slide opening (as shown in photo). Use the hardware shown in photo). Use the provided for. hardware provided for.

  • Page 28: Warranty

    In addition, for a period of TEN YEARS from the date of purchase, Eastern Jungle Gym® warrants to the original purchaser all wooden components against structural failure due to insect infestation or wood rot.

  • Page 29: Warranty Claim Process

    Carmel, NY 10512 Or email - info@kidgymz.com An Eastern Jungle Gym customer service rep will contact you by phone or email after reviewing the claim approximately 24 - 48 hours. If a part is covered under warranty, you the customer will be responsible for shipping and handling.

  • Page 30: Commonly Asked Questions

    (cracks) are not structural and do not affect your Jungle Gyms strength or integrity, even though they may seem quite large. By coating your Swing Set with a recommended annual sealant each year you can be confident your Eastern Jungle Gym will provide years of lasting memmories.
  • Page 31 “Creating Childhood Memories” Register Your Kid Gyms Remove this page, fill it out and return it to Eastern Jungle Gym 30 Commerce Dr. Carmel, NY 10512 Name Address City State Zip Code Phone Number Where Purchased City State Purchase Date...
