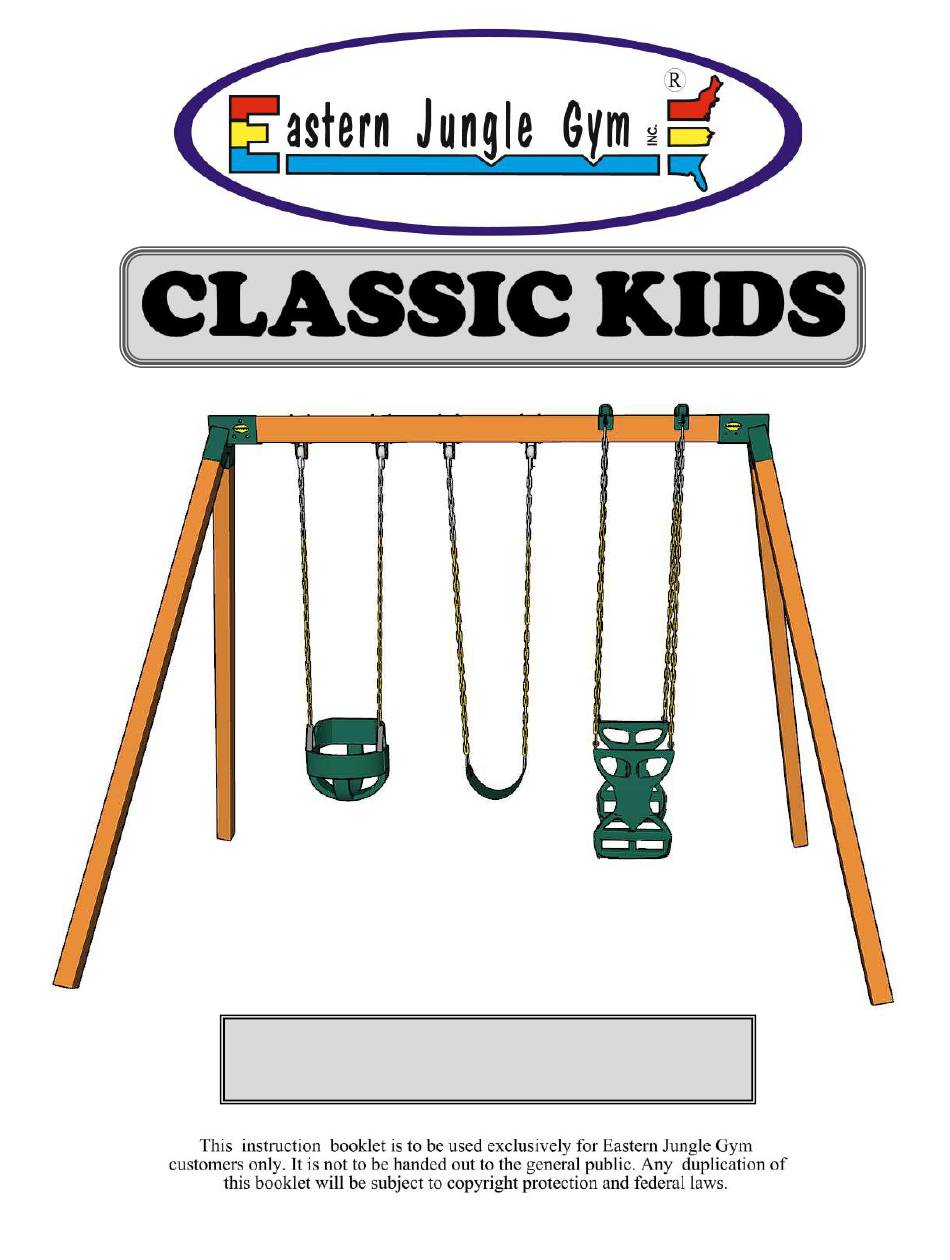

  • Page 1 Owners & Instruction Manual 2021...
  • Page 2 1-800-752-9787 Customer Service available 9-5pm EST Mon-Fri call 1-800-752-9787 or Email-Info@easternjunglegym.com...

  • Page 4: Site Location

    Site Location Our exclusive leveling system was developed through more then 26 years of installation experience. This unique leveling system ensures safe installation on un-level properties. While your jungle gym will be level and safe some of the activities will be affected by the sloping property (Diagram A ).
  • Page 6 (2) Easy 1-2-3 bracket (4) Snap Hooks (1) Green Sling Swings Horse Glider Brackets (1) Bucket Swing (1) Horse Glider (4) Heavy Duty Swing Hangers Wood Identification Classic Kids Swing 1 @ SWING BEAM SBHG46120 4 @ Side Support Part #SSP4496...
  • Page 7 Note: If you have purchased only the Eastern Jungle Gym hardware kit, EJG recommends that the beam size should be 4x6x120”. The side supports should be 4x4x96”. Please prepare the swing beam using the dimensions shown in the diagram below.

  • Page 8: Hardware Identification

    Hardware Identification H6- 3/8” x 6 ½” Hex Bolt B3- 5/16” x 3” Lag Bolt N- Nut W 3/8” Washer W 5/16” Washer W3/8 W5/16...
  • Page 10 Step #1 Swing Beam Assembly Classic Kids Place swing hangers on beam using hardware provided. (8)-3/8 Hex Bolt (6½”) (16)-3/8 Washer (8)-3/8 Nut (4)-Swing Hangers 3/8” washer 3/8” Nut Step #2 Horse Glider Bracket Classic Kids On the swing beam find the pre-existing holes for the horse glider brackets.
  • Page 11 Step #3 Install Easy 1-2-3 Bracket Classic Kids Layout SBHG46120 on the ground with swing brackets facing up. Slide Easy 1-2-3 Bracket onto beam. Predrill (3)-1/4” pilot holes. Attach bracket to post using B3 lag bolts. Repeat on opposite sides.

  • Page 12: Step #4-Post Install

    Step #4-Post Install Classic Kids Install (2)-SS44114 Posts into Easy 1-2-3 Bracket. Predrill (4)-1/4” pilot holes. Install posts to bracket using B3 bolts.
  • Page 13 Step #5- Swing Set Leveling Classic Kids With the help of another person turn swing beam assembly upright. Level swing beam as needed by digging the side support legs into the ground. Check with level Two metal stakes are provided for added stability.

  • Page 14: Step #6- Install Accessories

    Step #6- Install Accessories Classic Kids Hang full bucket swing, sling swing and horse glider. Make sure chains are the same length on each piece to ensure the swing is level. 10’ 8’-6”...
  • Page 16 Customer Service available 9-5pm EST Mon-Fri call 1-800-752-9787...
