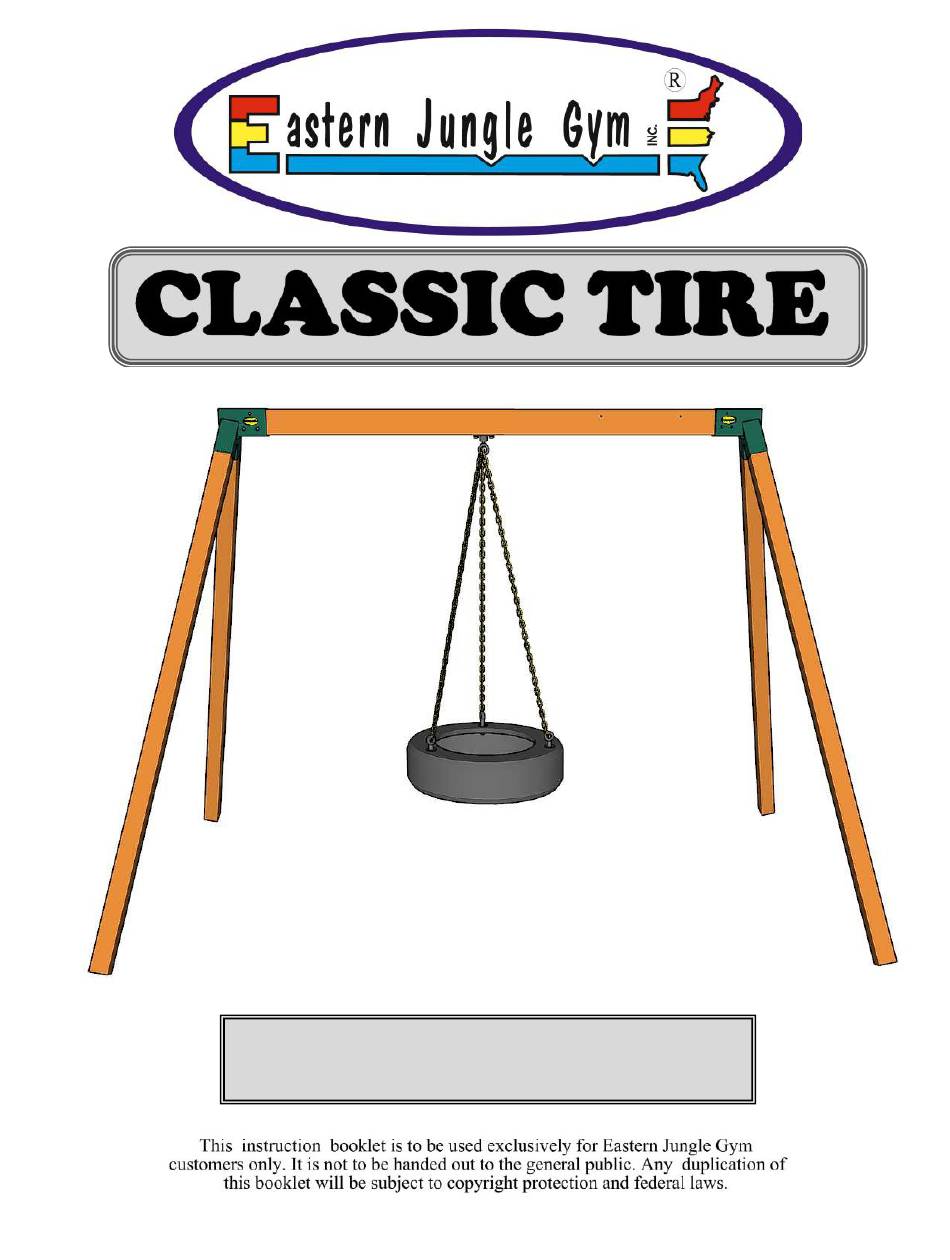

- Page 1 Owners & Instruction Manual 2021...
- Page 2 Customer Service available 9-5pm EST Mon-Fri call 1-800-752-9787 or Email-Info@easternjunglegym.com...
-
Page 4: Site Location
Site Location Our exclusive leveling system was developed through more then 26 years of installation experience. This unique leveling system ensures safe installation on un-level properties. While your jungle gym will be level and safe some of the activities will be affected by the sloping property (Diagram A ). - Page 6 Accessories Identification (3) Snap Hooks (1) Tire Swivel (2) Easy 1-2-3 Bracket (1) Tire (3) Chains w/eye hooks Wood Identification Classic Swing 1 @ SWING BEAM SBHG46120...
-
Page 7: Hardware Identification
Hardware Identification H6- 3/8” x 6 ½” Hex Bolt B3- 5/16” x 3” Lag Bolt N- Nut W 3/8” Washer W 5/16” Washer W3/8 W5/16... - Page 9 Note: If you have purchased only the Eastern Jungle Gym hardware kit, EJG recommends that the beam size should be 4x6x120”. The side supports should be 4x4x96”. Please prepare the swing beam using the dimensions shown in the diagram below.
- Page 10 Step #1 Swing Beam Assembly Tire Swing Place swing hangers on beam using hardware provided. 3/8” washer 3/8” Nut Step #2 Swing Beam Bracket Tire Swing Layout SBHG46120 on the ground with swing brackets facing up. Slide Easy 1-2-3 Bracket onto beam. Predrill (3)-1/4”...
-
Page 11: Step #3-Post Install
Step #3-Post Install Classic Install (2)-SS44114 Posts into Easy 1-2-3 Bracket. Predrill (4)-1/4” pilot holes. Install posts to bracket using B3 bolts. - Page 12 Step #4- Tire Swing Assembly Classic Tire The Rubber Tire Swing is pre-drilled on both sides. The top side has 3 small holes for the connection of the swing chains and the bottom side has 4 or more large holes for drainage of water, Please inspect your tire before connecting the eye hooks to ensure that they are installed on the correct side.
- Page 13 Step #5- Tire Swing Assembly Classic Tire Remove all parts from the box and place on the ground. Inspect the rubber tire and make sure that the side with 3 evenly spaced holes is facing up. Remove plastic from the chains. Unscrew the lock nut from each of the swing chains and remove the metal washer.
- Page 14 Step #6- Swing Beam Leveling Classic Tire With the help of another person turn swing beam assembly upright. Level swing beam as needed by digging the side support legs into the ground. Check with level Four metal stakes are provided for added stability.
- Page 15 Step #7- Swing Beam Level Tire Hang swings and trapeze bar. Make sure chains are the same length on each piece to ensure the swing is level. 10’ 8’-6”...
